Key Features:

• Modular DC Busbar: Integral part of the Lynx Distribution System, available in M8 and M10 models.
• Fuse Monitoring: Equipped with spaces for four DC MEGA fuses (not included) and LED indicators for each fuse status.

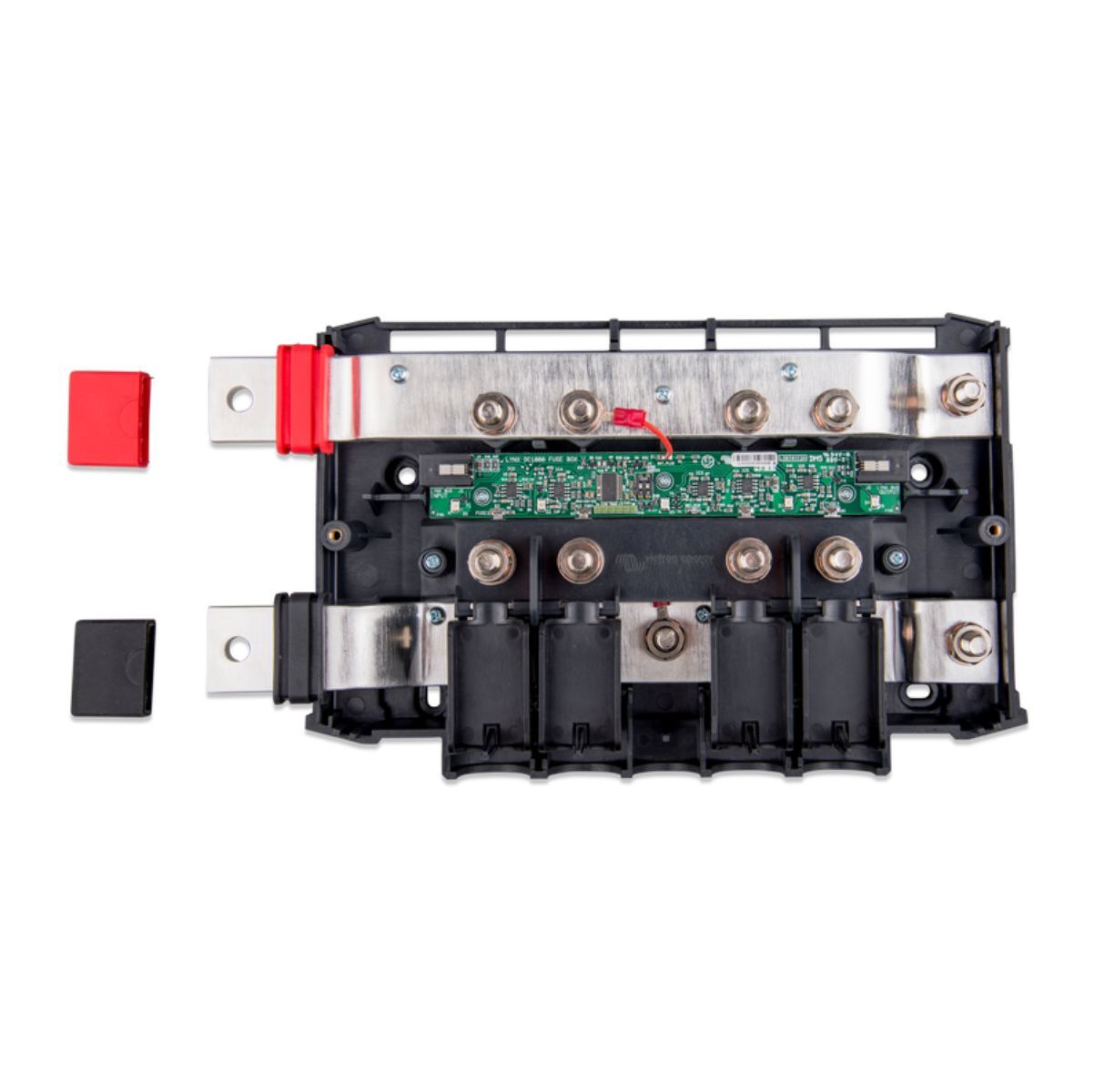

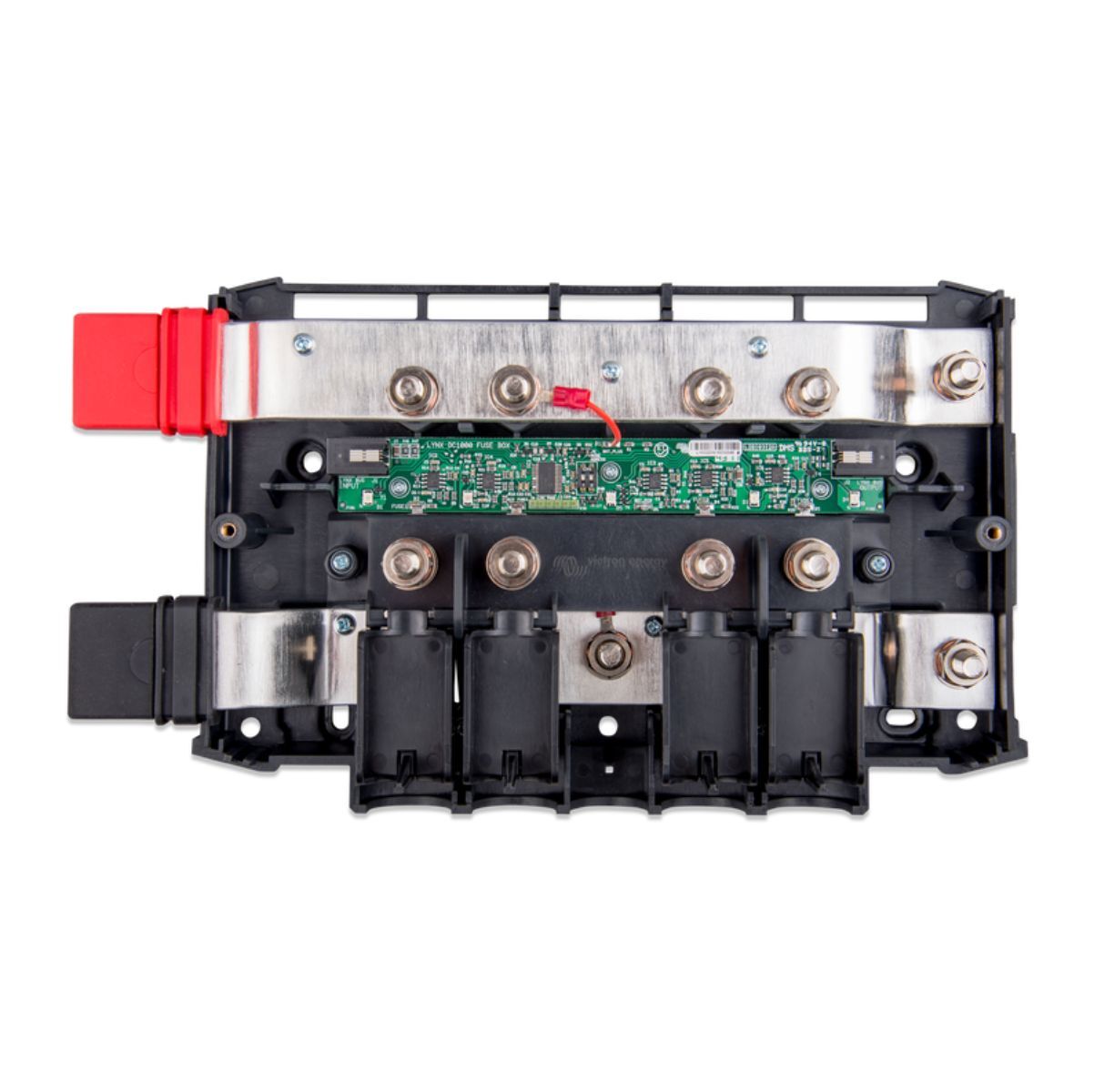

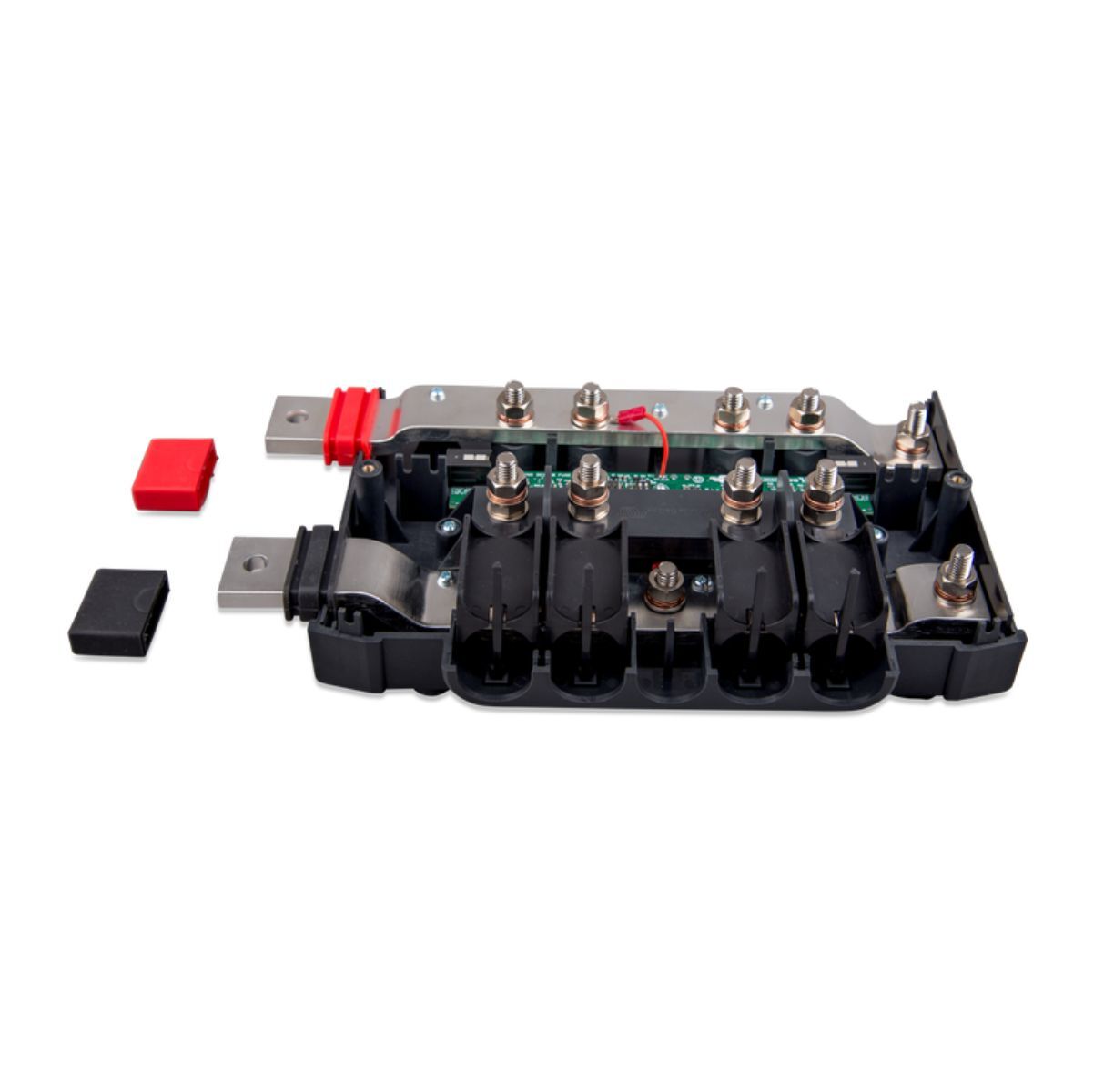

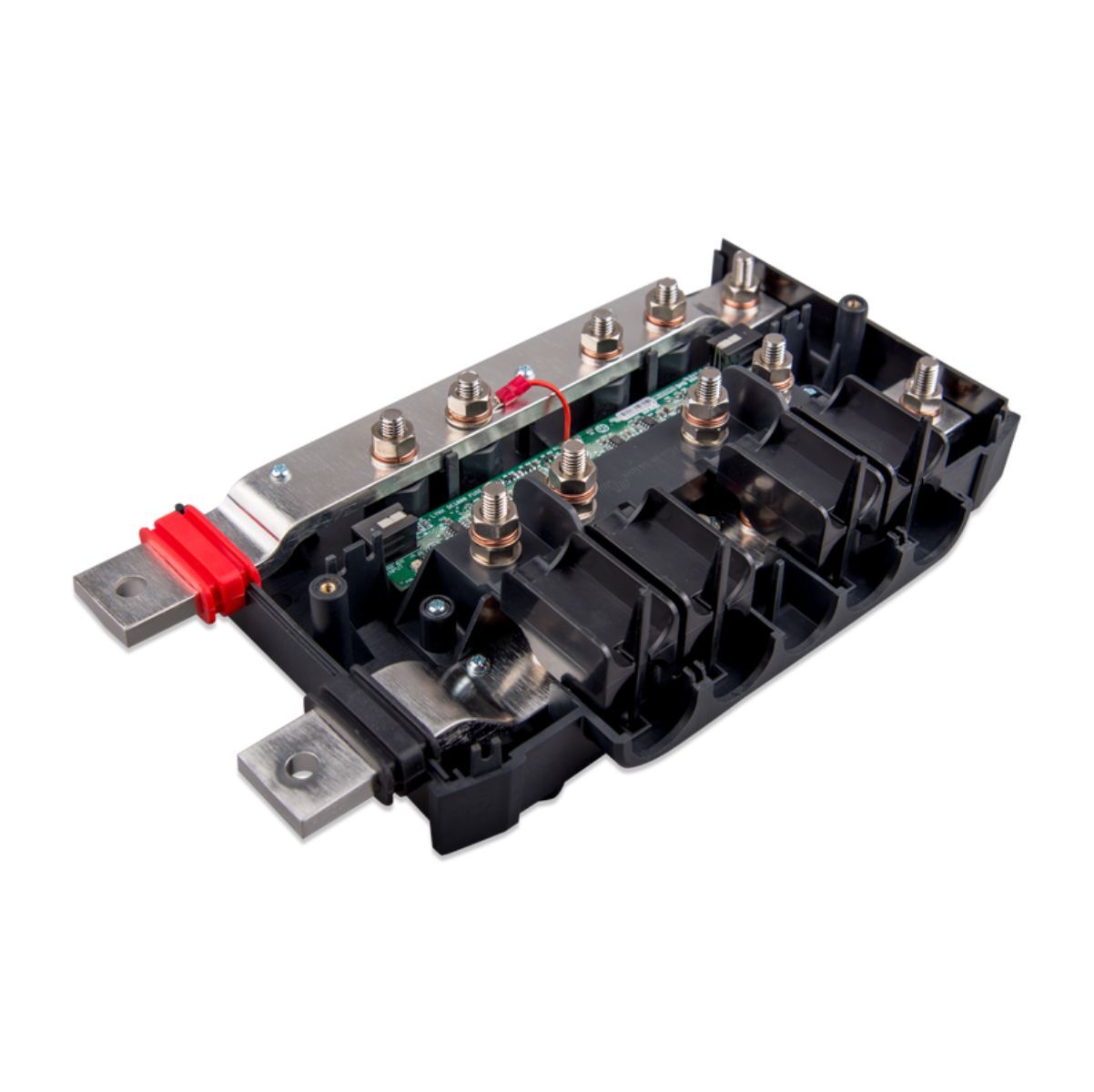

• Busbar Configuration: Includes a positive busbar with four fuse-protected connections and a negative busbar with four connections plus a ground connection.

Technical Specifications:

• Busbar Options:
  • M8 Model: Standard fuse and cable connections.
  • M10 Model: Larger busbar connection joints for more demanding setups.

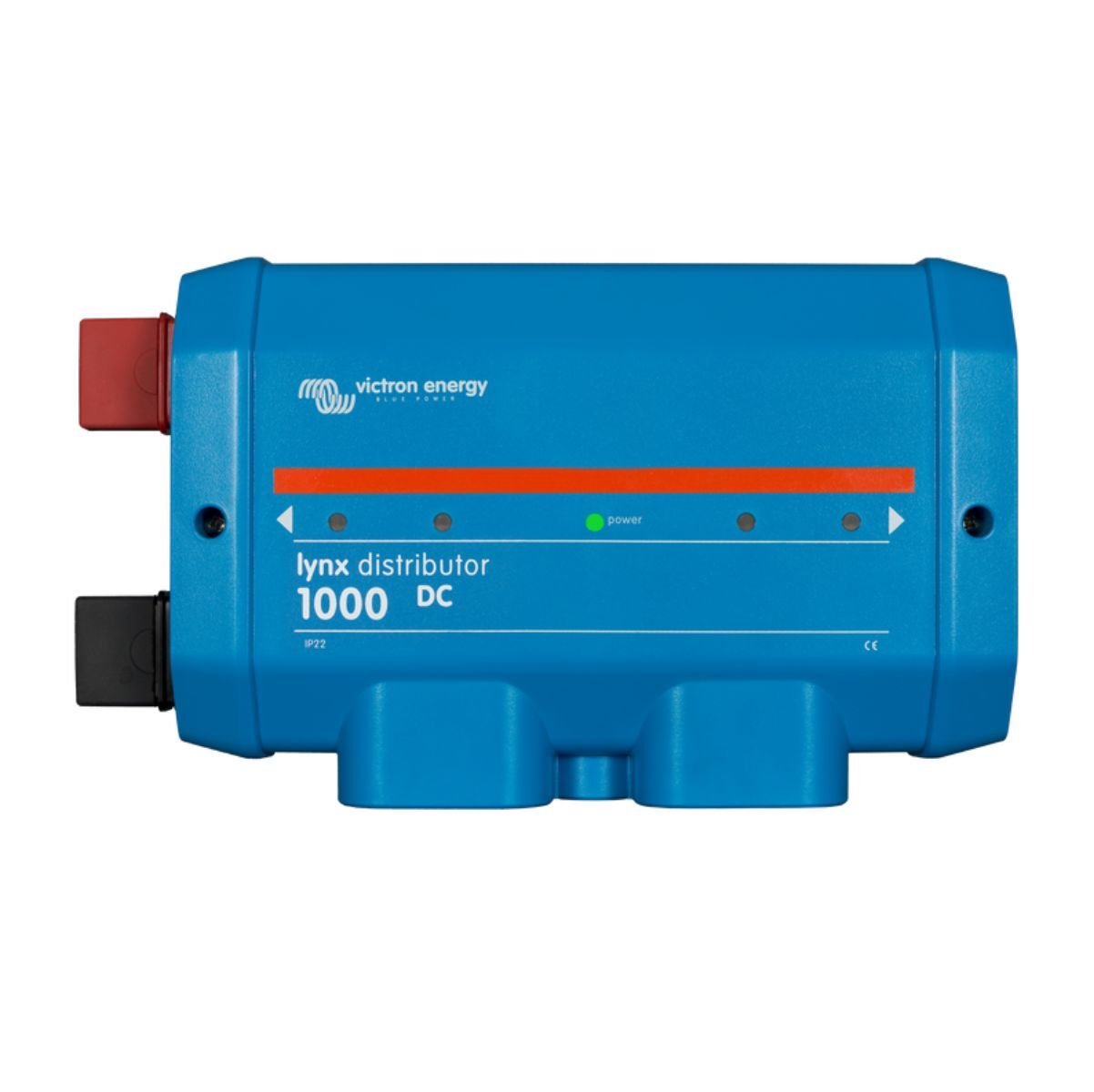

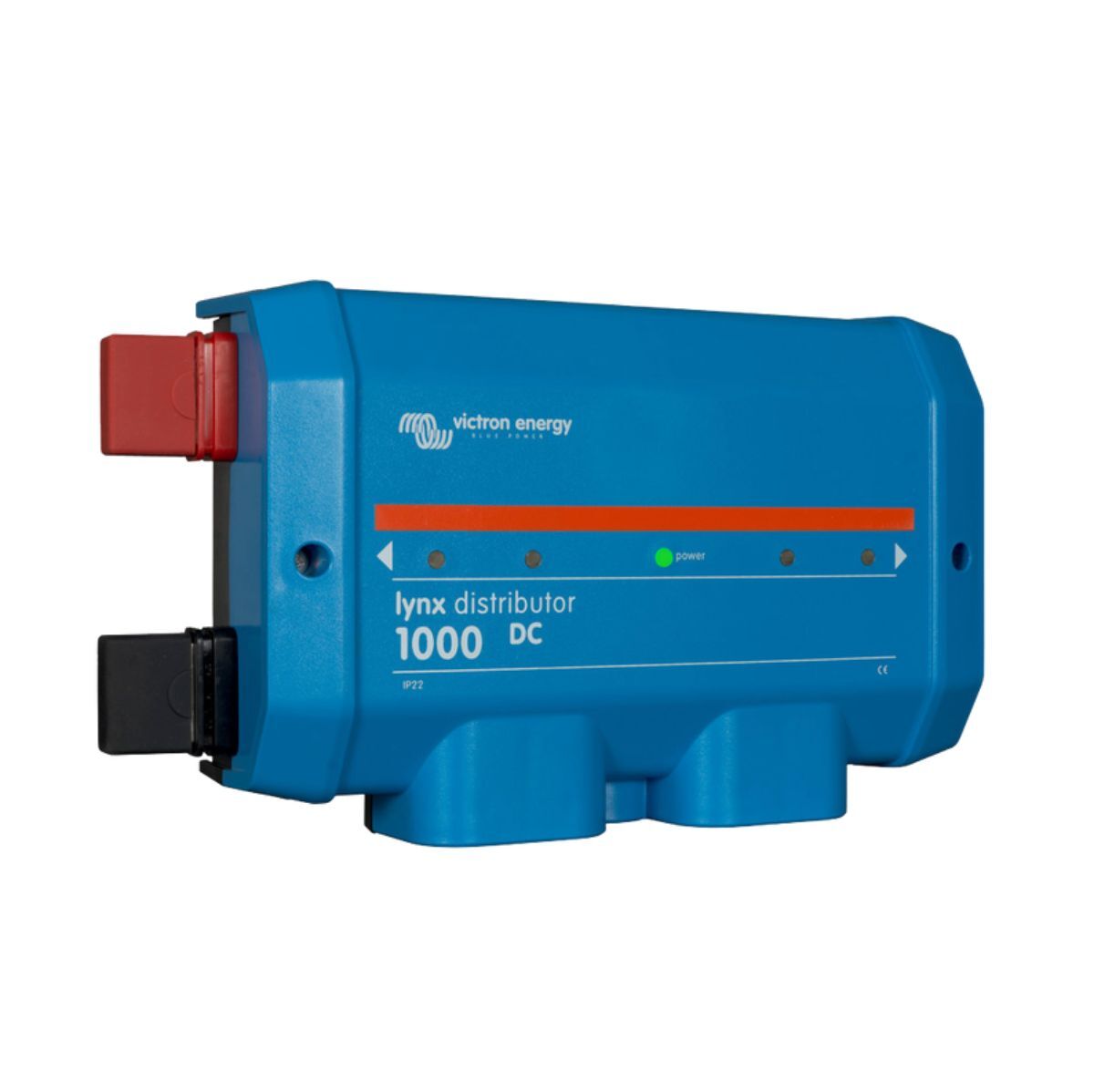

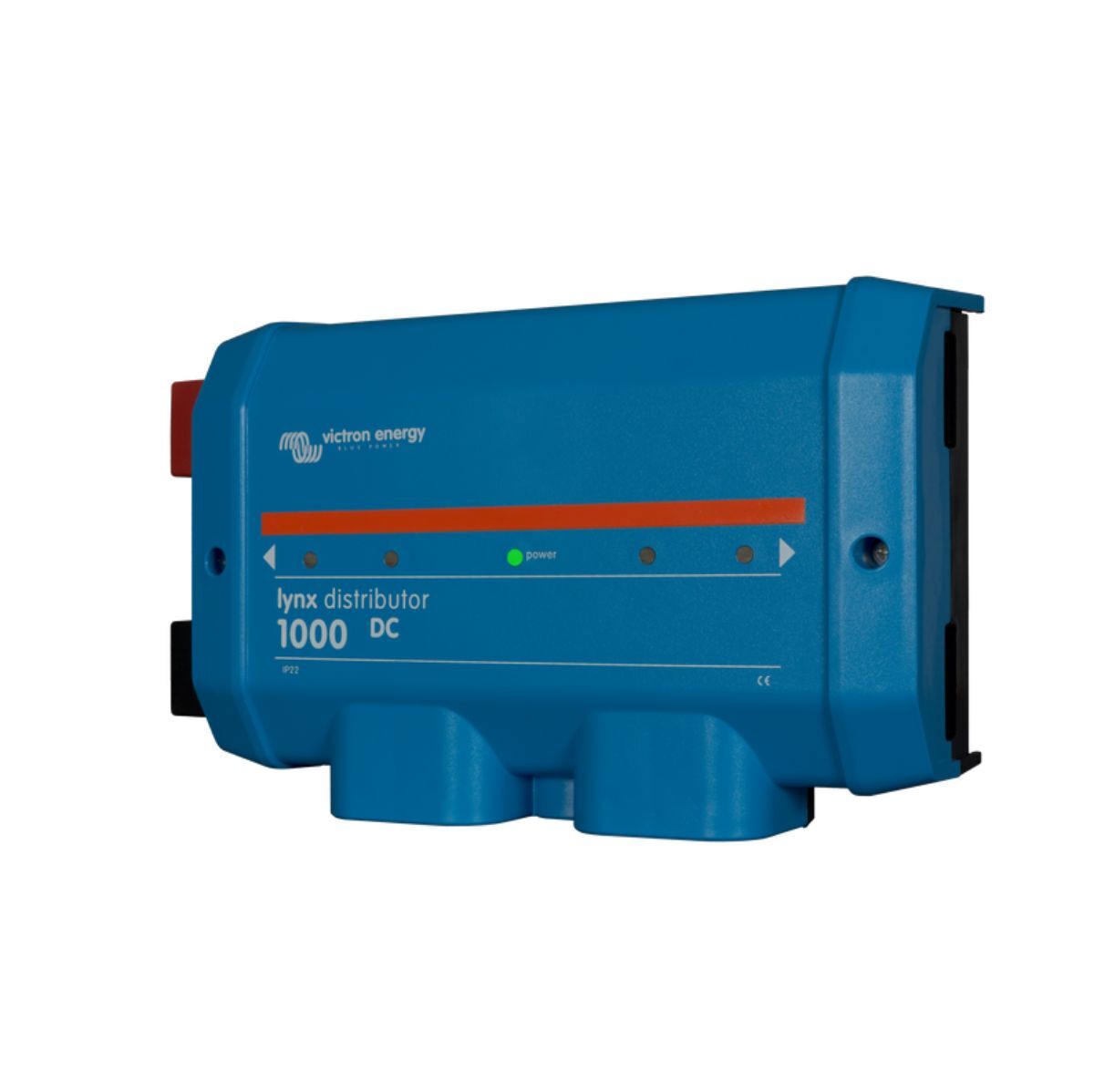

• Indicator Lights: Power LED and four fuse status LEDs on the front panel.
• Connectivity:
  • Compatible with Lynx Smart BMS for fuse status information (up to 4 Lynx Distributors).
  • RJ10 Cable (40cm) included for power and data transmission.
• Fuse Type: Designed for MEGA fuses.
• Application: Suitable for managing and monitoring DC power distribution in systems like renewable energy setups, marine, and mobile applications.
• Monitoring: Can be monitored and configured via the VictronConnect App when connected to a Lynx Smart BMS.
