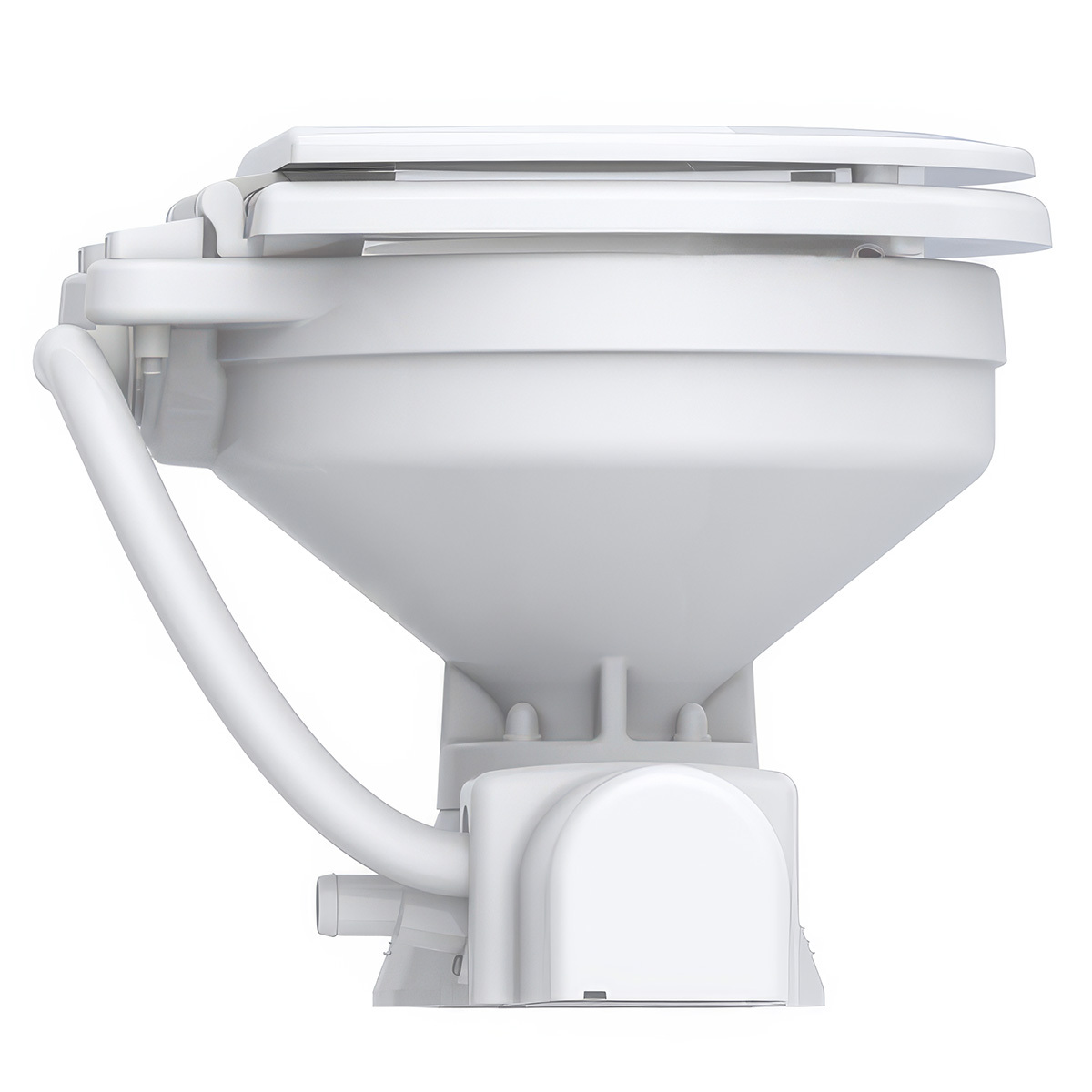

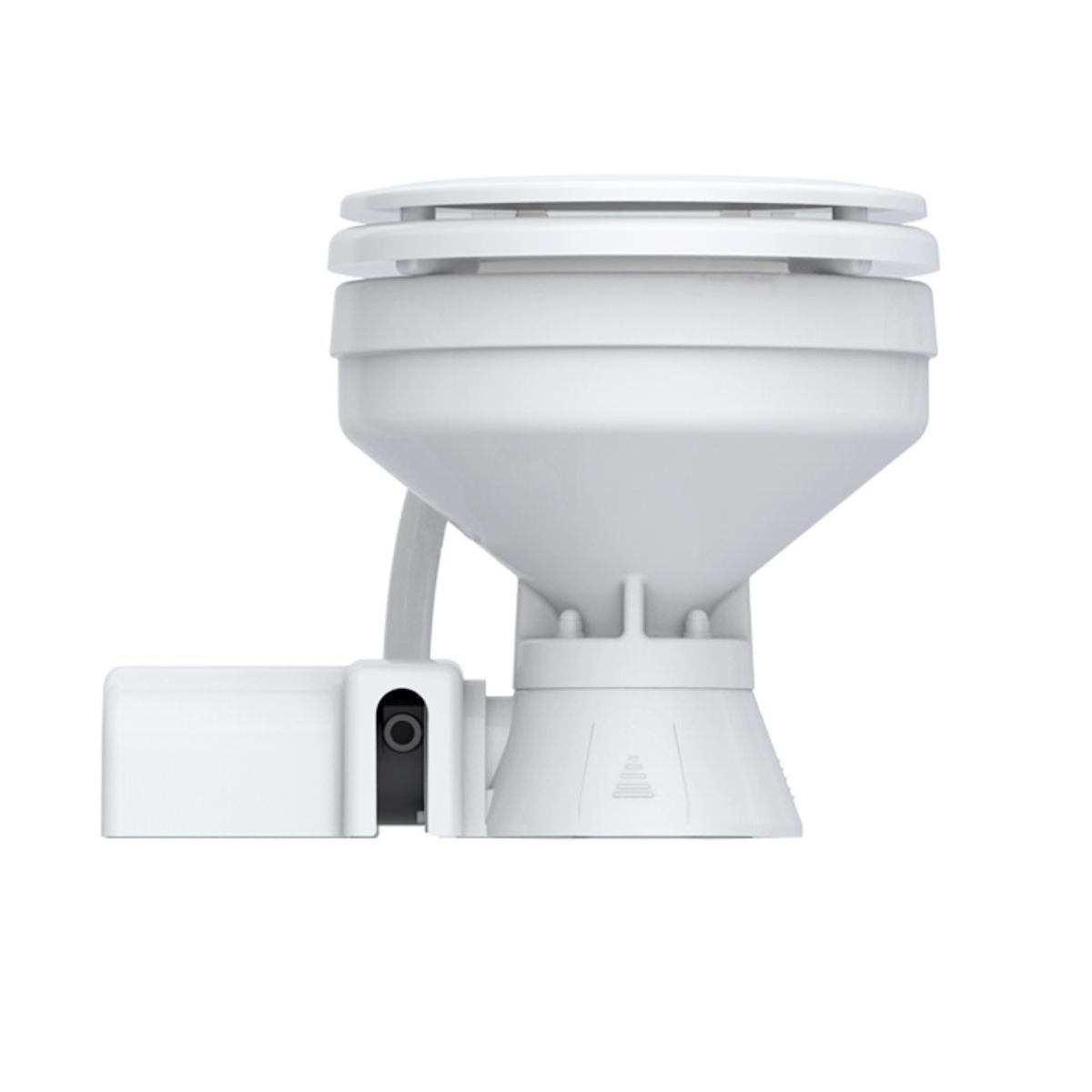

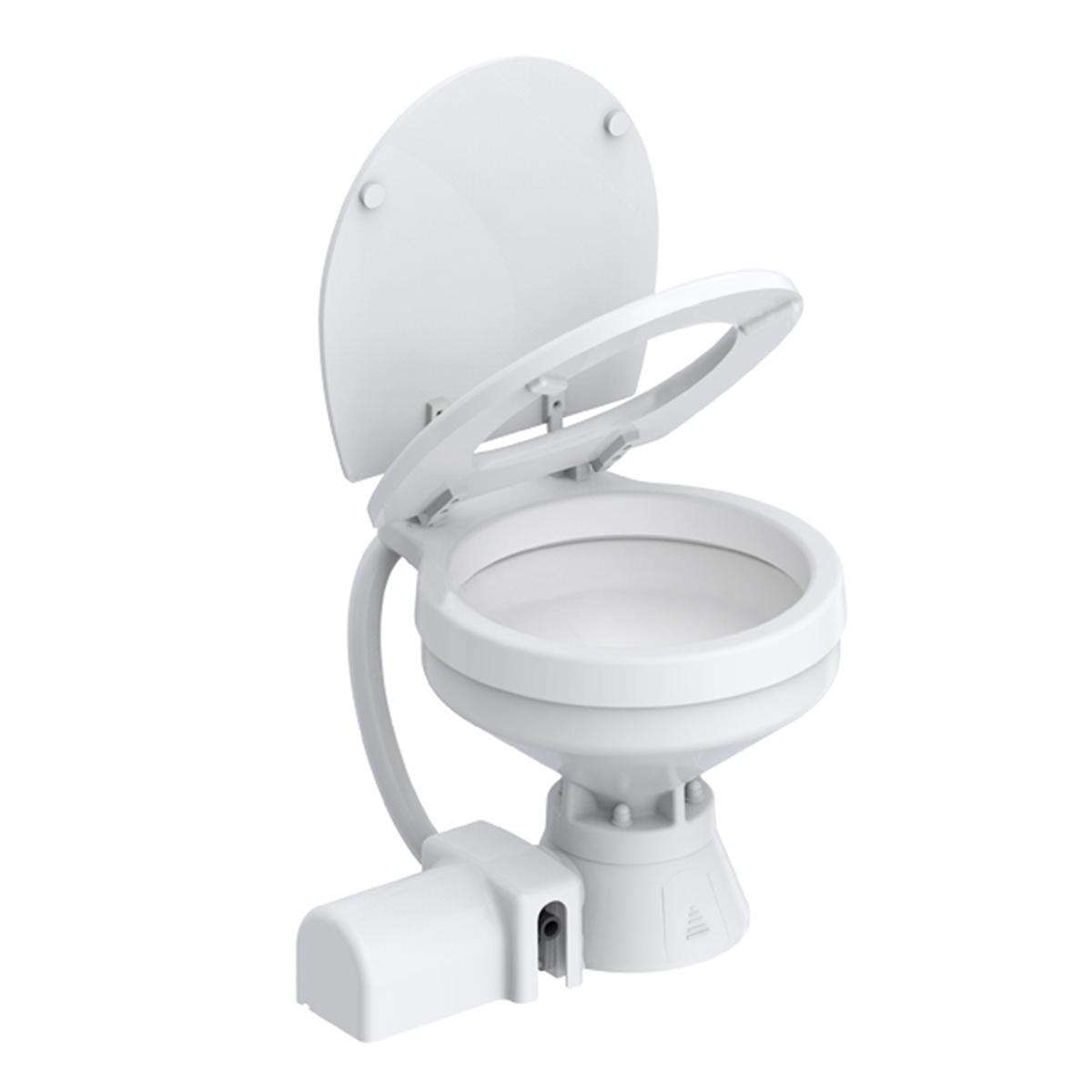

SeaFlo Electric Marine Toilet

The SEAFLO Electric Marine Toilet models SFMTE1-01/SFMTE2-01 represent the pinnacle of convenience and efficiency for marine sanitation. Designed to enhance the comfort and hygiene of your marine adventures, these toilets eliminate the traditional hassles of manual operation, offering a seamless and hygienic solution with just the push of a button.

Key Features:

  • Dual-Function Pump Technology: Integrates a self-priming flush pump and a macerator with a high-capacity scavenger pump, efficiently rinsing the bowl and grinding waste to be easily pumped out.
  • Interchangeability: Both pump and bowl components are designed to be interchangeable with JABSCO parts, ensuring easy replacement and compatibility.
  • Ease of Use: The system is operated via a convenient push-button, simplifying the flushing process and maintaining cleanliness.
  • Quality Materials: The toilet features an easy-to-clean china bowl that adds a touch of elegance to your marine bathroom. It's accompanied by a heavy-duty push button and a versatile 1"-1½" discharge hose adapter.
  • Motor and Pump Design: Equipped with a flexible impeller flush pump and a permanent magnet-type motor that is fully enclosed with a stainless steel shaft, ensuring durability and long-lasting performance.
  • Safety Features: A built-in backflow preventer keeps the system safe and hygienic, while the construction from all corrosion-resistant materials makes it suitable for marine use.

Benefits:

  • Enhances the convenience and hygiene of marine sanitation.
  • Simplifies maintenance with interchangeable parts and availability of individual spare parts.
  • Ensures durability and reliability in the marine environment.

General Specifications:

Feature Description
Bowl Material China
Motor Type Permanent Magnet, Fully Enclosed
Shaft Material Stainless Steel
Flush Mechanism Flexible Impeller Pump, Push Button Activation
Compatibility Interchangeable with JABSCO
Installation Includes 1"-1½" Discharge Hose Adapter
Safety Built-in Back Flow Preventer
Construction Corrosion Resistant for Marine Use

Designed for effortless operation and easy maintenance, the SEAFLO Electric Marine Toilet is a must-have for any marine vessel, ensuring a clean and comfortable bathroom experience at sea


Dimensions:

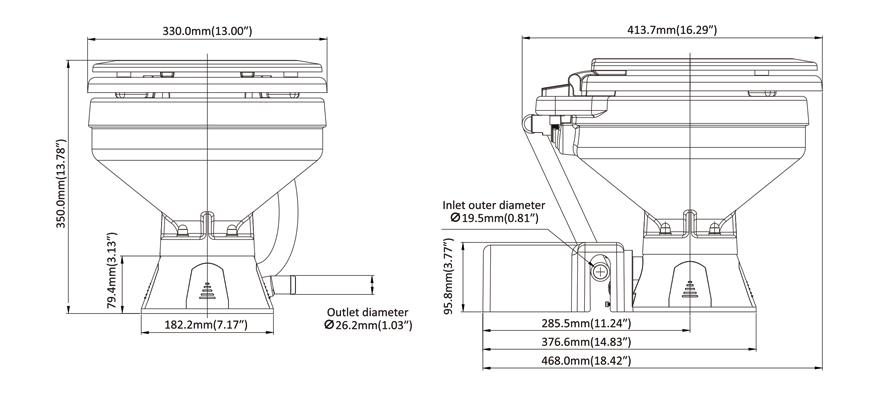

Product dimensions

Package Contents

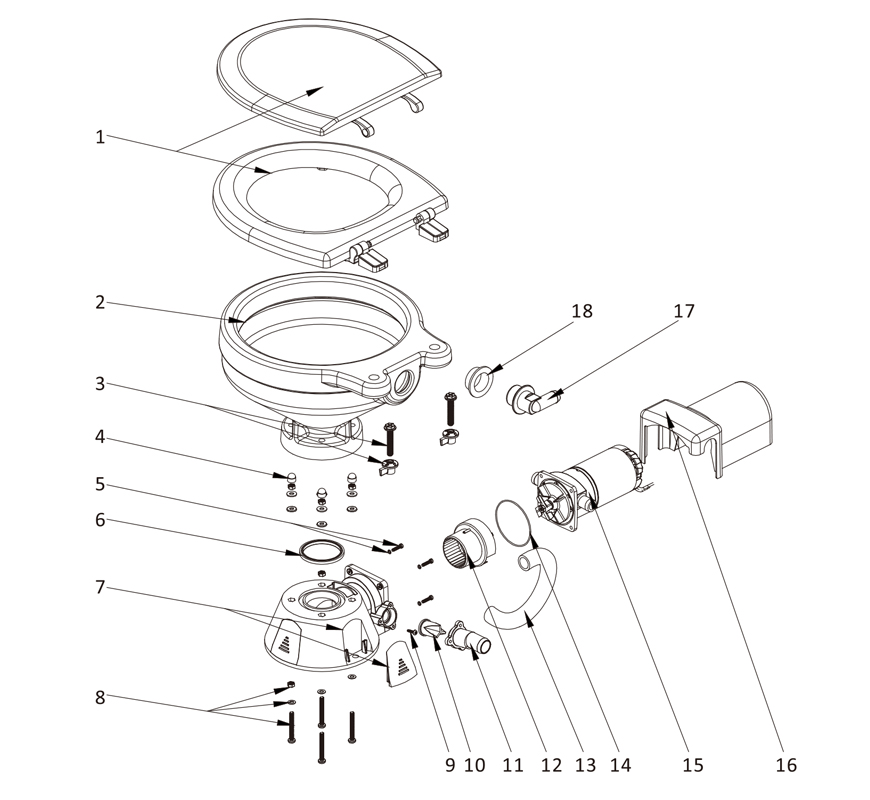

Package contents

Key Description Material
1 Cover assembly MDF
2 Ceramic seat ceramics
3 Plastic screw assembly stainless steel
4 Screw cap stainless steel
5 Tooth screw stainless steel
6 Seal NBR
7 Base ABS
8 Bolt assembly stainless steel
9 Tapping screw stainless steel
10 Sewage rubber parts NBR
11 Discharge port PP
12 Macerator housing PPS+glass fiber
13 Water pipe PVC
14 Motor seal NBR
15 Motor assembly
16 Motor cover PP
17 Inlet elbow PP+glass fiber
18 Inlet seal NBR

Standard Pump Configurations

Specification Detail
Model SFMTE1-01 / SFMTE2-01
Type Electric
Control Type Switch Panel
Max Draw 20A @ 12V / 10A @ 24V
Size Compact
Diameter 3/4" Inlet / 1" Discharge
Material Ceramic bowl, wood seat with baked enamel finish
Dimension (L*W*H) 490 x 445 x 430 mm (19.29''*17.52''*16.93'')
SKU SFL.SFMTE-1-01
Model # SFMTE-1-01/SFMTE-1-02
Brand SeaFlo
Shipping Weight 14.5000kg
Shipping Width 0.490m
Shipping Height 0.430m
Shipping Length 0.445m
Shipping Cubic 0.093761500m3
