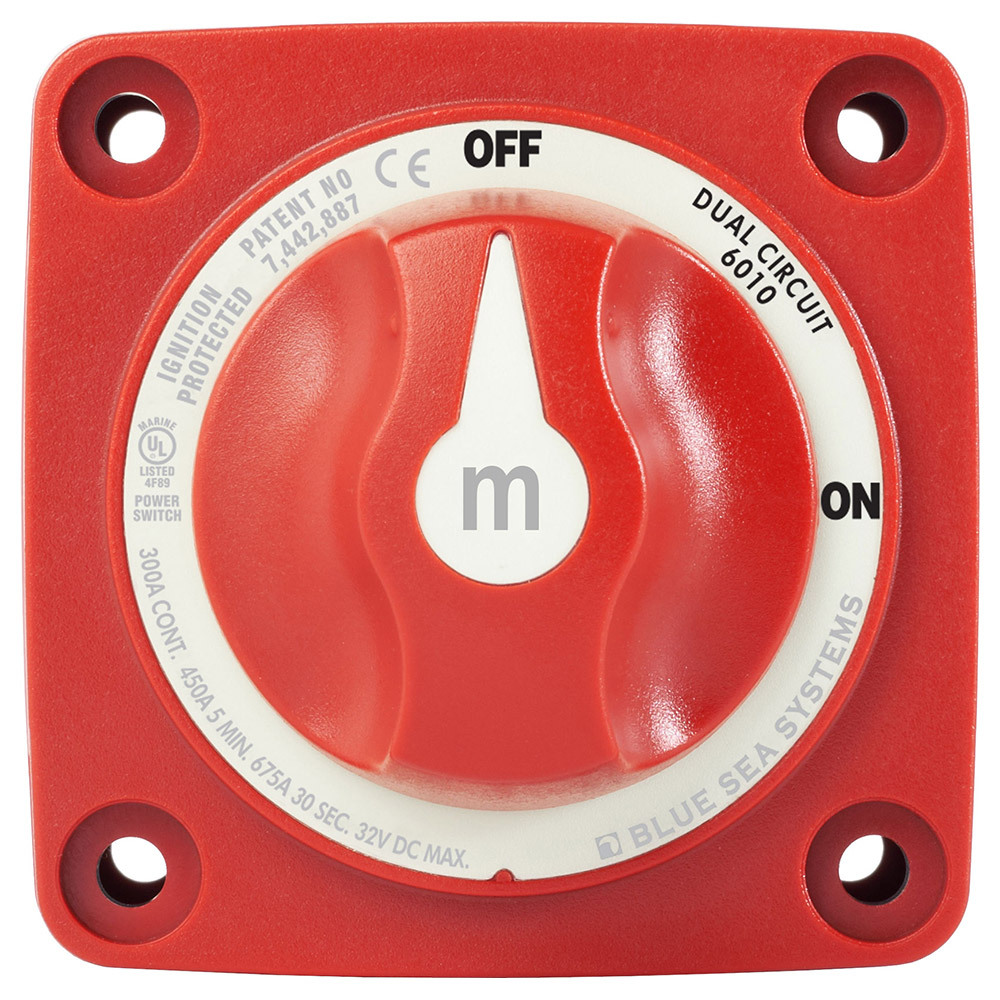

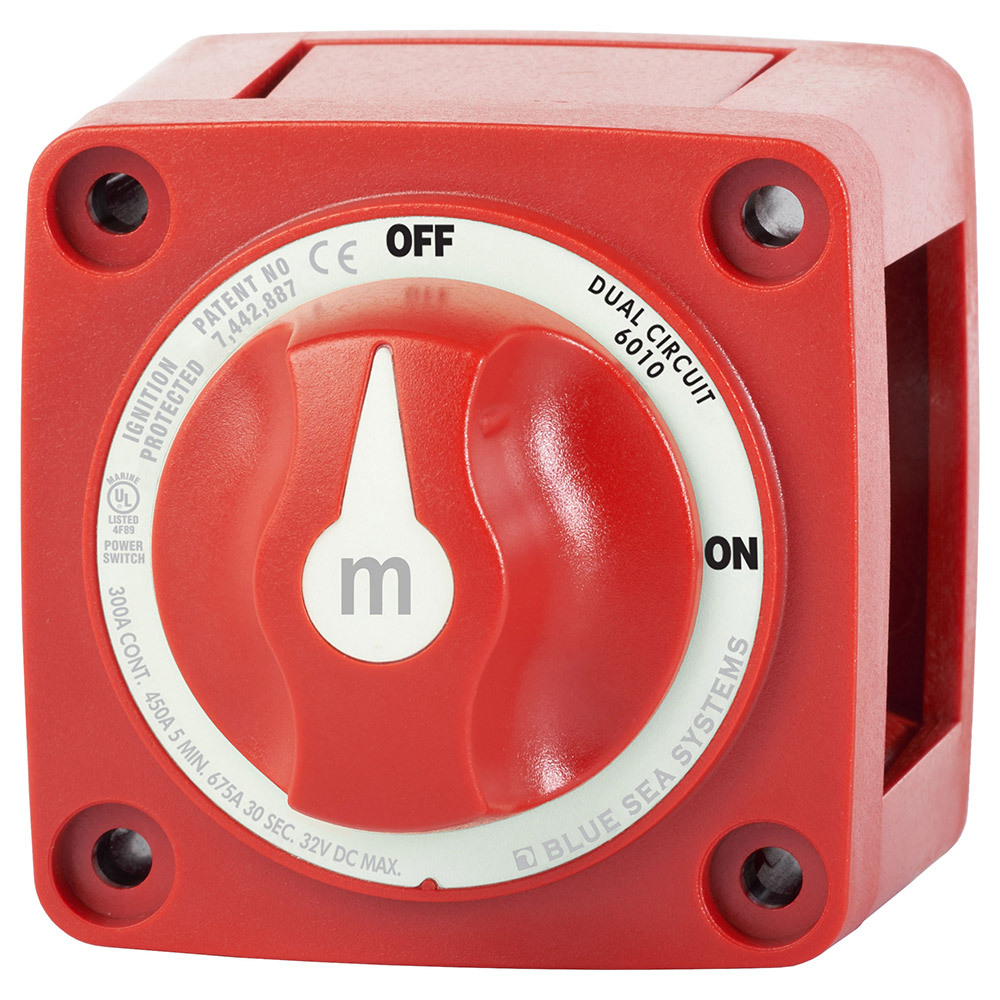

Blue Sea 6010 m-Series Mini Selector Battery Switch - Dual Circuit
m-Series (Mini) Battery Switches - m-Series Battery Switch Dual Circuit™
- Availability:
- SKU: BSS.6010
- Afd: No AFD
- Positions: ON-OFF
- Poles: Double Pole
- Manufacturer: Blue Sea
- MPN: 6010B
- Barcode: 632085060107
- Shipping Weight: 0.36kg
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
m-Series (Mini) Battery Switches - m-Series Battery Switch Dual Circuit™
Features
Simultaneously switches two isolated battery banks
- Ignition protected—safe for installation aboard gasoline powered boats

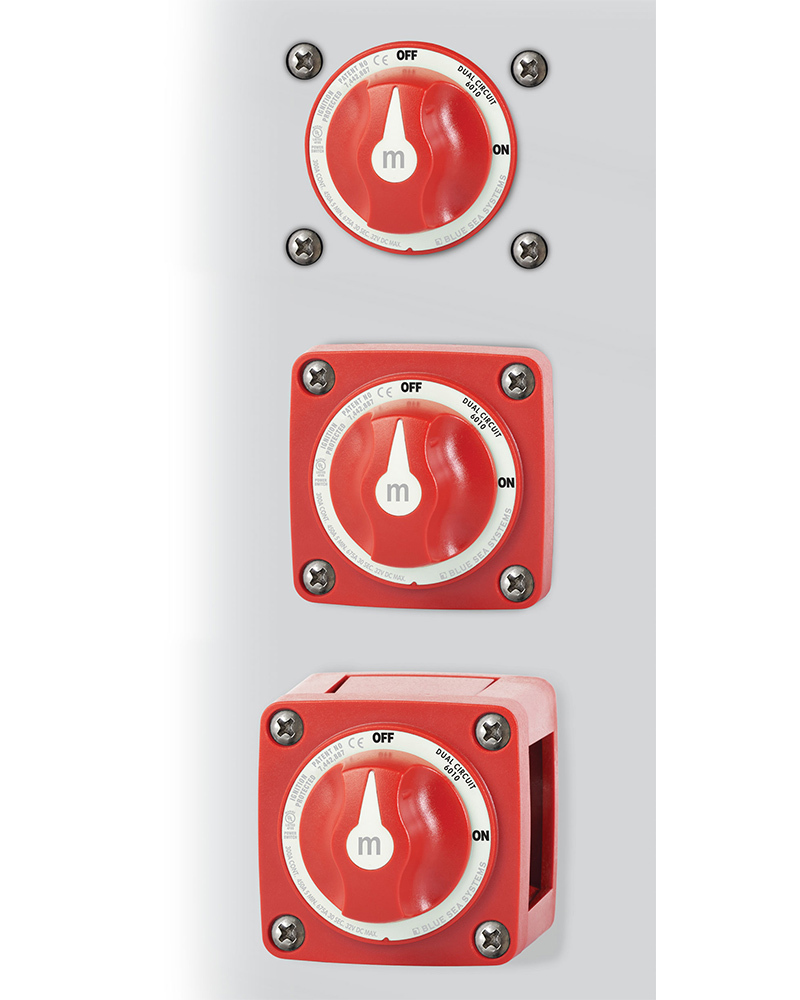

- Case design allows surface front panel or rear panel mounting

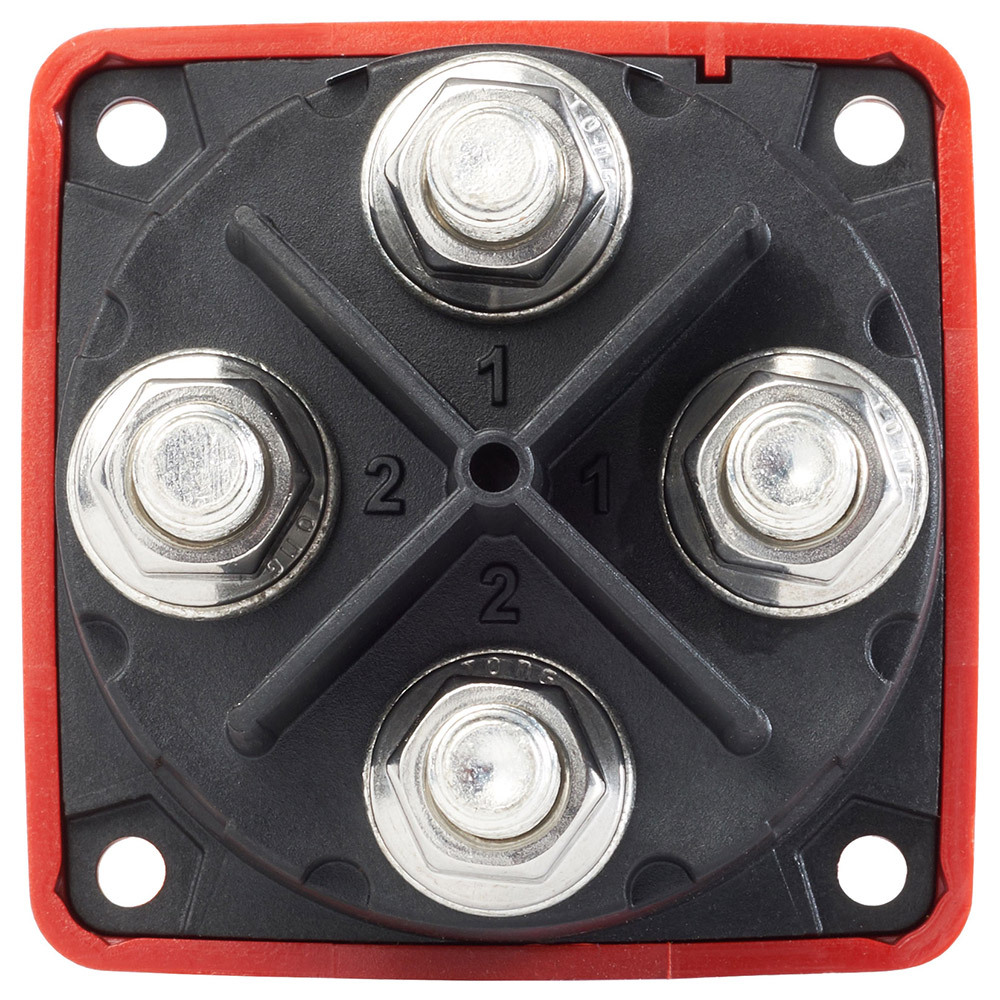

- Isolating cover with snap-on sections protects rear contacts
- 3/8""-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8"" and M10 ring terminals
- 7/8"" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Removable key or knob remains positively retained
(BSS.6010)
Specifications | |
---|---|
Switch Type | Dual Circuit |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 32V DC |
Stud Size | 3/8" |
Terminal Stud Torque | 120 in-lb (13.56 Nm) |
Continuous Rating | 300A |
Intermittent Rating | 450A (5 min) |
Cranking Rating 30 sec | 675A per circuit |
Battery Inputs | 2 |
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
Mounting Holes | Accept #10 Screw |
Stud Material | Tinned Copper |
Stud Torque | 120 in-lb (13.56 Nm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 0.80Lb (0.36 Kg) |
Weight | 0.80lb (0.36 kg) |
