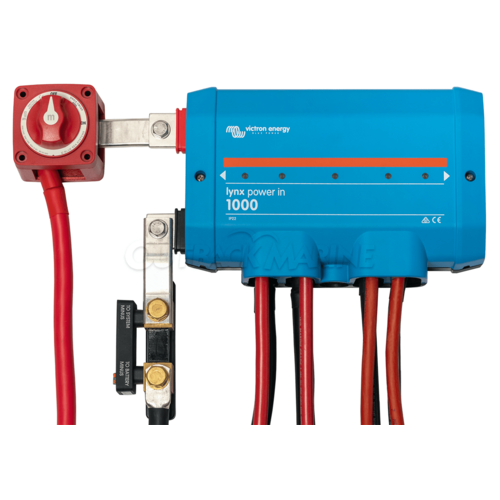

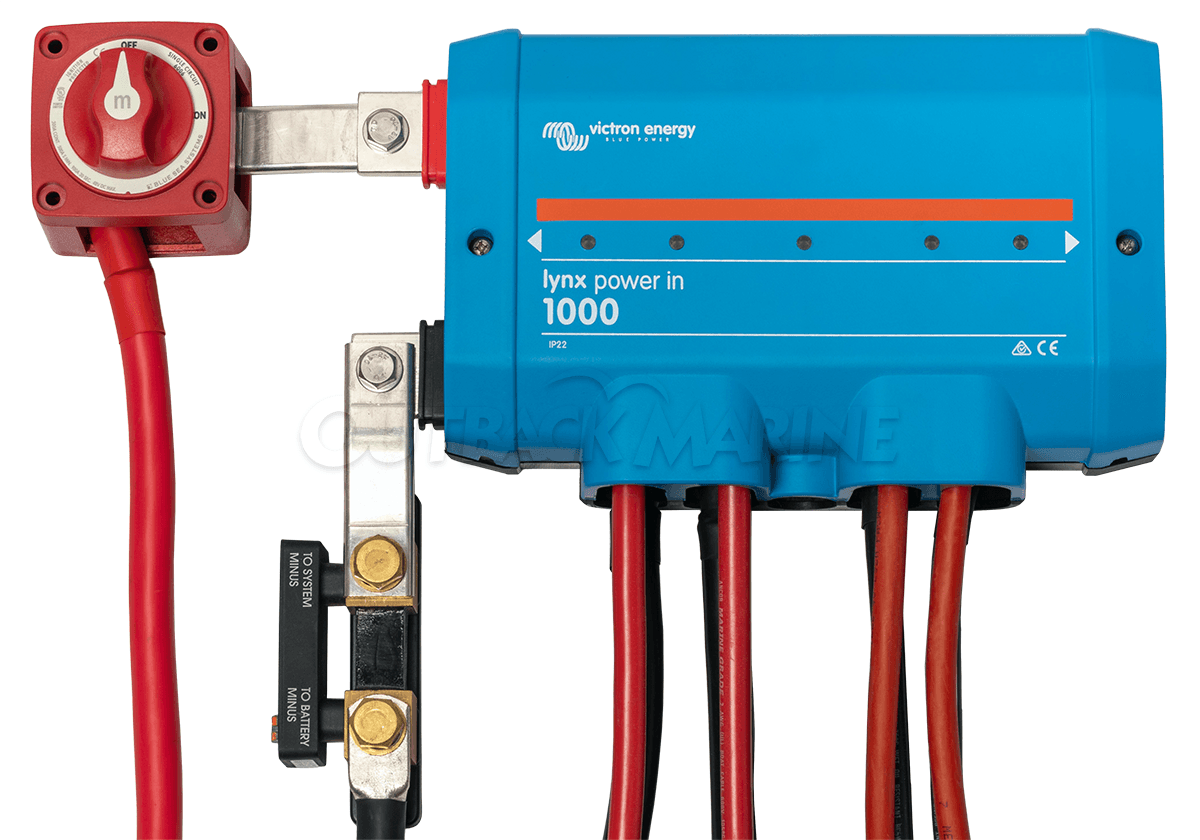

Integrated DC distribution kit for organised high-current battery systems

This integrated DC distribution kit provides a clean and professional solution for organising high-current battery connections in marine, off-grid, and mobile power systems. Built around a modified Lynx Power In busbar, the system converts it into a compact fused DC distribution board capable of supporting multiple power outputs. It incorporates a heavy-duty battery selector switch, SmartShunt battery monitoring, and high-capacity busbars to create a complete power management platform. Designed for reliability and easy installation, the kit simplifies complex battery wiring while delivering safe and efficient DC power distribution.

Key Features

• Integrated DC Distribution System: Combines a modified busbar distribution module, battery switch, and monitoring shunt to provide a complete high-current DC power management solution.
• High Current Capacity: Supports up to 300 A continuous current, making it suitable for demanding marine and off-grid electrical systems.
• Four Fused Output Circuits: Heavy-duty busbar allows connection of up to four protected loads using MEGA fuses for safe distribution to inverters, chargers, and DC loads.
• Integrated Battery Selector Switch: Includes a heavy-duty selector switch rated for 300 A continuous current with high surge capability for reliable system isolation and control.
• SmartShunt Battery Monitoring: Built-in 500 A SmartShunt enables accurate battery current monitoring with Bluetooth connectivity for real-time system data.
• Heavy Duty Copper Busbars: Supplied with tinned copper busbars for efficient current distribution and corrosion resistance in marine environments.
• Optimised System Layout: Provides a clean and organised wiring platform that simplifies installation and reduces cable clutter.
• Ideal for Marine and Off-Grid Systems: Designed for battery banks powering inverters, chargers, and high-current DC loads in boats, caravans, and energy systems.

Kit Includes

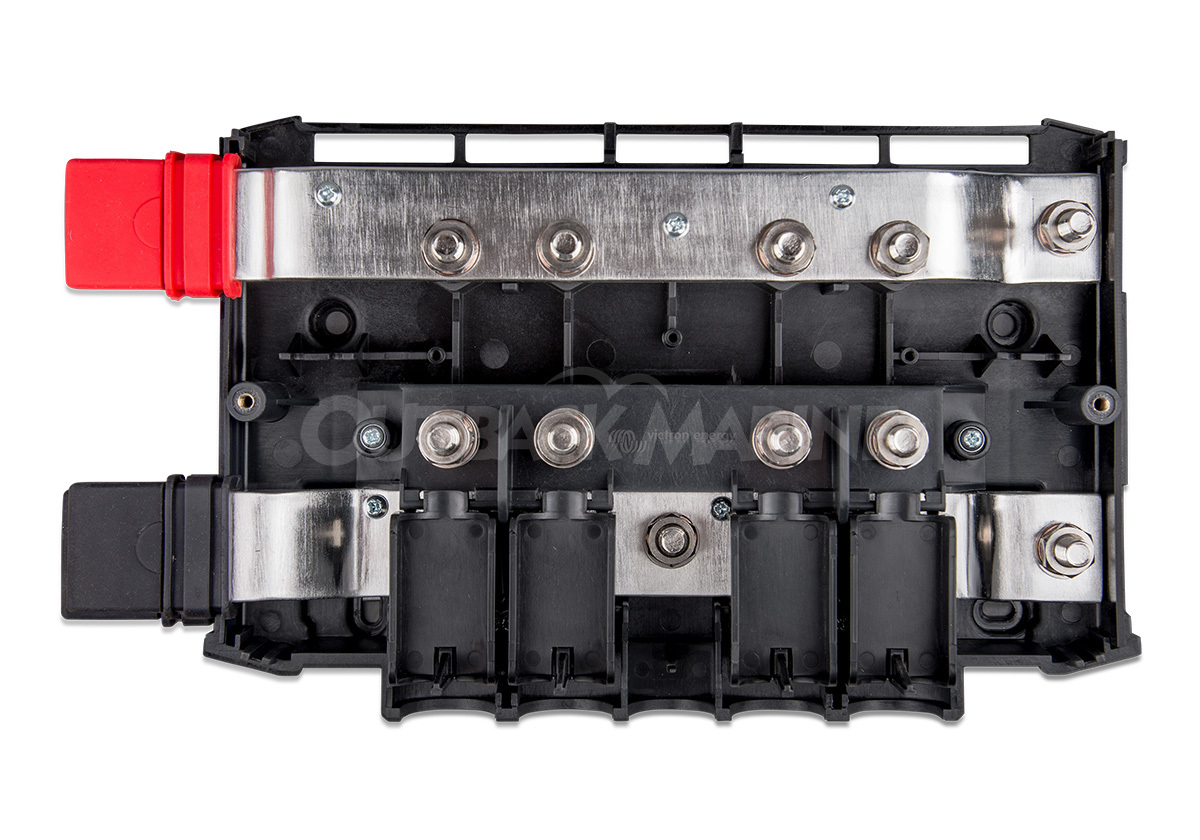

• Victron Lynx Power In modified to a fused DC Distribution Board with Stainless Steel Nuts & Bolts

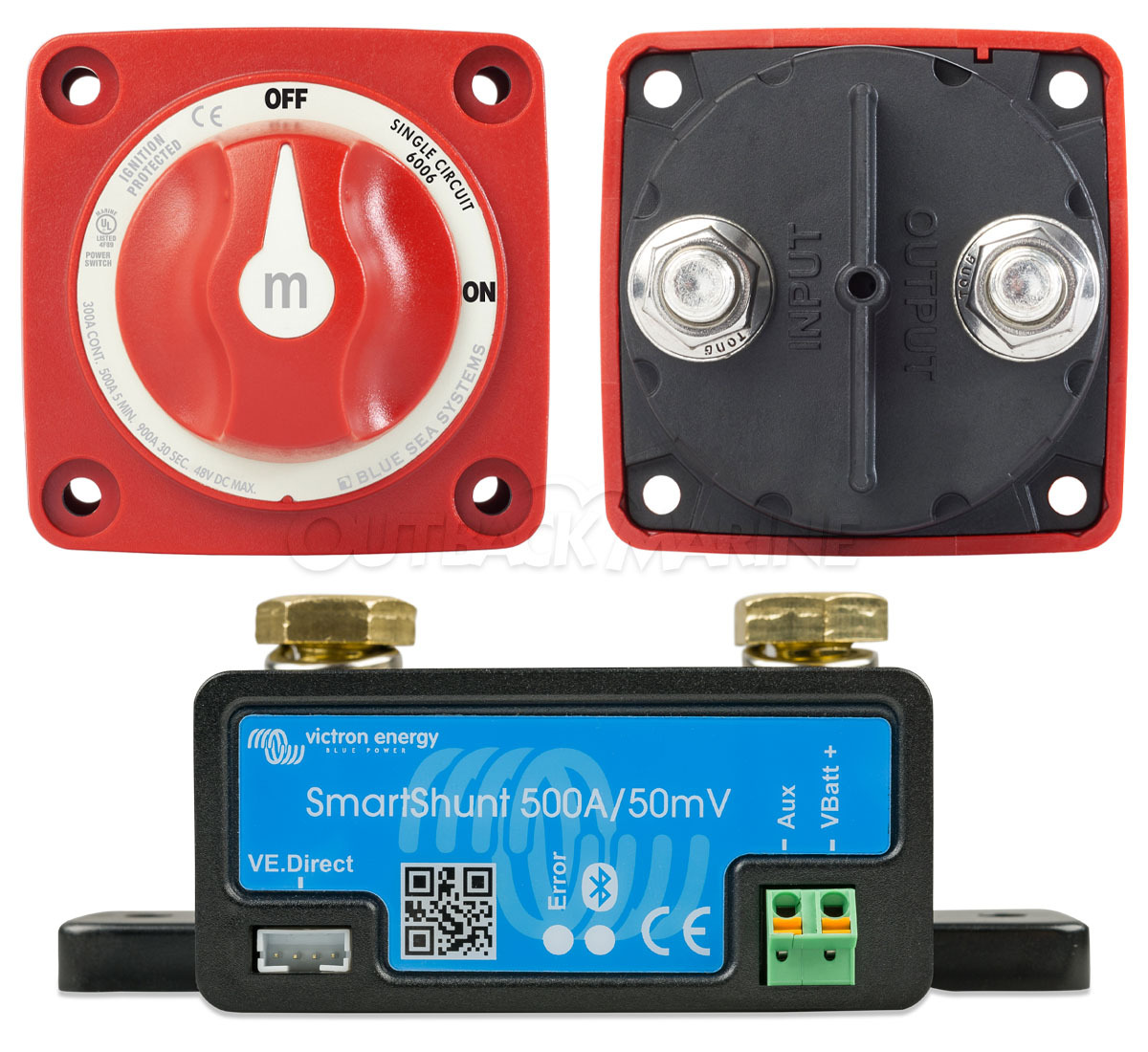

• Blue Sea 6006 m-Series Switch 300A Continous / 500A (5 Min) / 900A Peak (30 sec)
• Victron SmartShunt 500A / 50mV - Bluetooth Battery Shunt
• 2x 90mm Tinned Copper busbars

Engineered for clean installation and reliable power distribution, this kit delivers a professional solution for managing high-current DC electrical systems.

Note: Cabling and Fuses not included.
