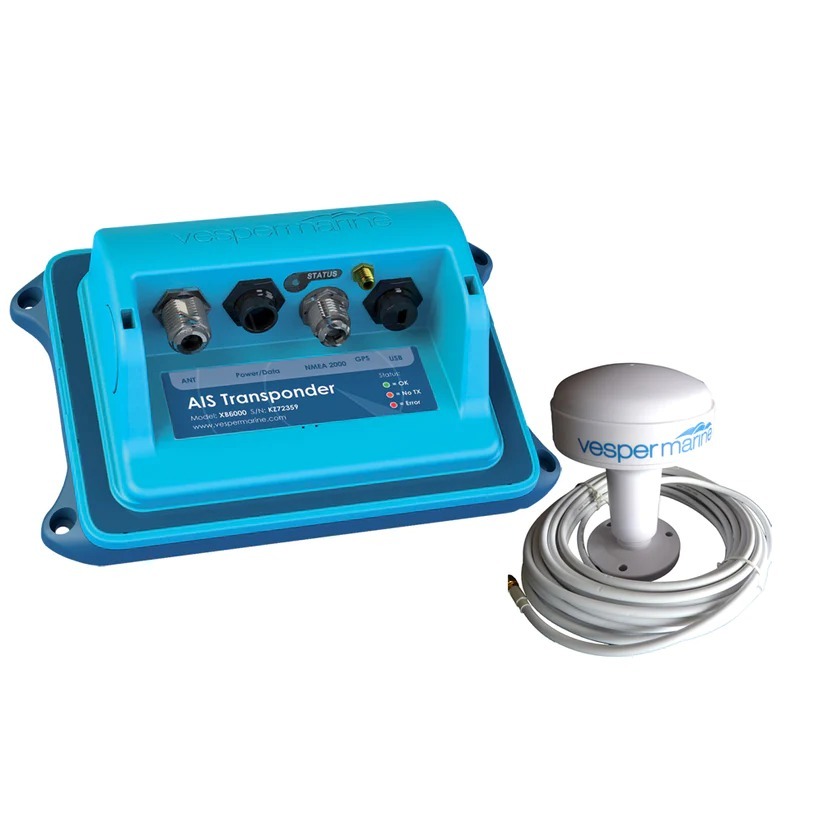

WatchMate XB-6000 is a Class B AIS transponder with a two-channel parallel receiver and transmitter.
SAVE $71.93 (7%)
Currently Unavailable for Purchase
Please keep an eye on the website when this product will be available again.
WatchMate XB-6000 is a Class B AIS transponder with a two-channel parallel receiver and transmitter. It transmits your vessel position and details and receives the same information from other vessels with AIS transponders.
The AIS data is sent every few seconds and includes information such as course, speed, latitude, longitude, and heading. Static information about the vessel is sent every few minutes, including the name, type of vessel, length, beam, draft, etc.
Designed for minimal power consumption the WatchMate XB-6000 is extremely well-suited for energy-conscious vessels.
Low power operation is particularly important on a long voyage when charging from solar or wind. The XB-6000 consumes less power than other AIS transponders even with the NMEA 2000 gateway operating!
You'll have each vessel's name and call sign and others using AIS will also have yours. If you wish to call another vessel you will be able to ensure you are talking to the correct vessel. This is very important when operating in busy areas or in bad weather when visibility is reduced.
The XB-6000 can be put into silent mode. When in this mode, the AIS receivers and GPS continue to operate normally. The only change is transmissions are inhibited. Perfect for those times when you want privacy. Silent mode can be controlled by an external switch (not included) or via your PC or Mac.
When you buy a WatchMate XB-6000, you get an extendable AIS platform. Designed to be compatible with a continuous stream of feature updates, your WatchMate XB-6000 can be upgraded with the latest firmware via USB and your computer.
|Size||200mm wide x 130mm high x 60mm depth (7 7/8" x 5 1/8" x 2 3/8")|
|Environmental||Waterproof (IP67: submersible to 1m for 30 mins)|
|Operating temperature||-25°C to +55°C (-13°F to 131°F)|
|Power supply||10-32 VDC, 2.5W nominal|
|Number of receivers||2 AIS, 1 DSC (timeshare)|
|Receive sensitivity||-113 dBm (<20% PER)|
|Number of transmitters||1 AIS|
|Transmit power output||33 dBm (2W)|
|GPS||50 channel with internal antenna. Supports WAAS and EGNOS. Also includes external antenna|
|GPS navigation rate||Selectable 1Hz or 5Hz with magnetic variation included in output|
|GPS sensitivity||-159dBm tracking & navigation
-142dBm acquisition (cold start)
|GPS accuracy||Position 2.5m CEP, SBAS 2.0m CEP|
|VHF antenna required||50 ohm, max 2:1 VSWR @ 162MHz, PL259 connector|
|Serial data||1 fully isolated USB port (mini), 1 isolated NMEA 0183 input (RS422 4800/38400 baud) 1 NMEA 0183 output (RS422 4800/38400 baud)|
|Connectivity||NMEA 2000, NMEA 0183, USB
All input NMEA 0183 sentences are repeated to the NMEA 0183 and USB outputs. Selected NMEA 2000 PGN's (heading, wind, depth, speed, temperature, and log) are translated to NMEA 0183 sentences and repeated to the NMEA 0183 and USB outputs. This allows a wide variety of NMEA 0183 and NMEA 2000 instruments to be interfaced and output to all other connected devices.
|NMEA 2000||NMEA 2000 certified. LEN 2. Micro-C male connector. Female drop cable required (not included). Compatible with all NMEA 2000 certified Raymarine SeaTalk NG devices (DeviceNet cable required), Garmin, Furuno, SimNet (NMEA 2000 adapter cable required, Navico part 24006199 or 24006413), and other NMEA 2000 certified products.|
|Protocols||IEC 61162-1, NMEA 0183, NMEA 0183 HS|
|Standards||IEC 62287, IEC 60945, IEC 61108, IEC 61162, ITU-R M.1371, ITU-R M.825, ITU-R M.1084|
|Approvals||BSH, BABT, CE, US Coast Guard, US FCC, Industry Canada|
|Warranty||Two-year worldwide warranty|
|Supplied With||• 2m Power/Data cable
• External GPS antenna
|Optional||• SP160 VHF/AIS Antenna Splitter
• Waterproof USB cable
