The Victron Inverter Compact 12/1600 230V VE.Bus offers reliable power with SinusMax technology, high efficiency, and comprehensive protection features.
SKU: VIC.CIN122160000 | MPN: CIN122160000
SAVE $104.41 (10%)
Out of Stock at Vendor Warehouse. Contact Us for an update on when stock will be available.

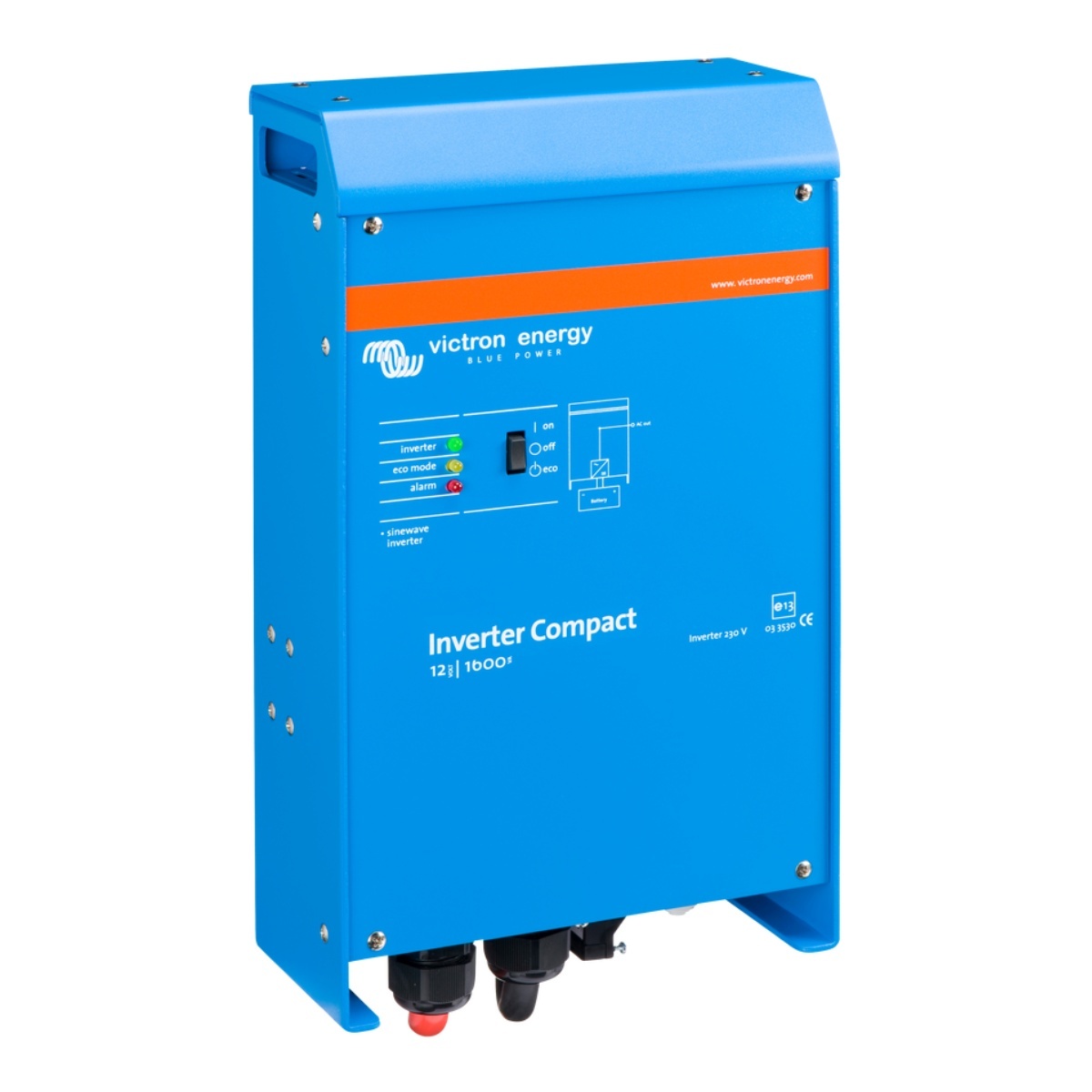

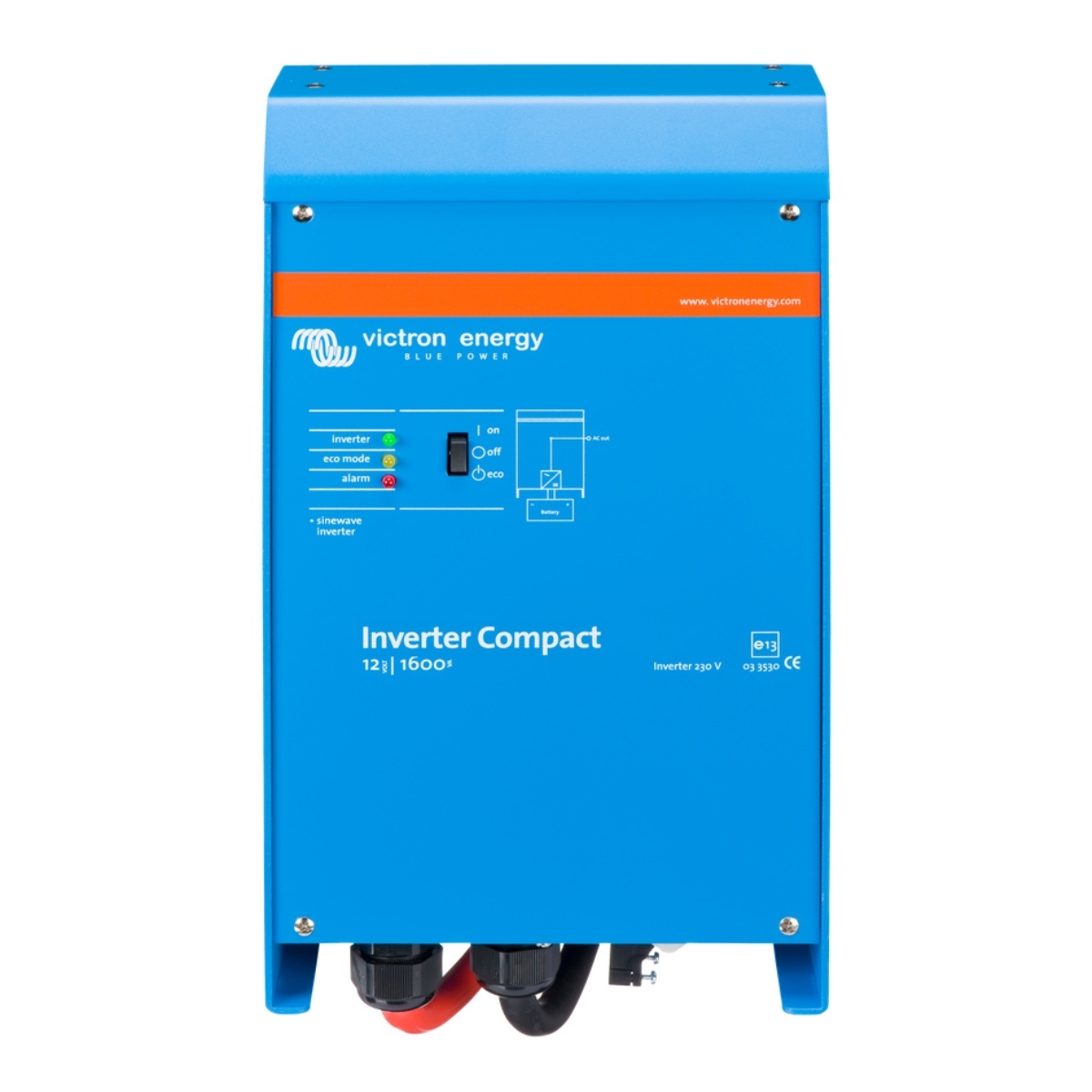

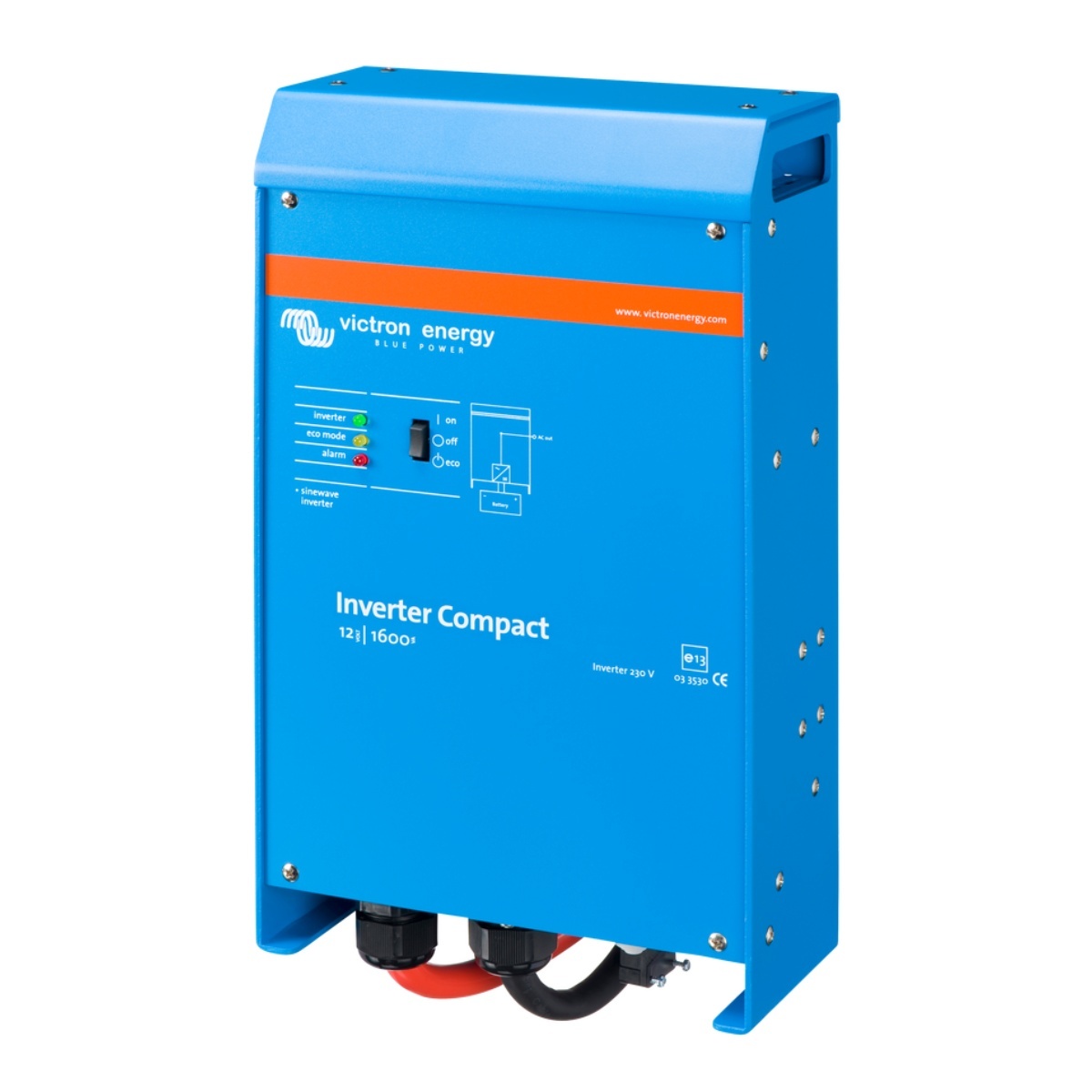

The Victron Energy C12/1600 Inverter leverages cutting-edge SinusMax technology, offering a true sine wave output with exceptional efficiency. Designed for professional and demanding applications, this inverter is built to deliver power seamlessly to all types of loads, including those with high start-up requirements like refrigeration compressors and electric motors. The use of hybrid HF technology allows for a compact and lightweight design without compromising on performance, making it ideal for both residential and industrial use.
One of the standout features of the C12/1600 is its ability to provide very high start-up power. Unlike conventional inverters, which often struggle with high initial load demands, the C12/1600 handles them effortlessly, thanks to its superior SinusMax technology. This capability ensures that even the most challenging appliances start smoothly, enhancing reliability and reducing downtime in critical power applications.
The C12/1600 Inverter offers unparalleled scalability with the ability to operate in parallel and in a 3-phase configuration. Up to six units can be connected to achieve higher output power, making it possible to scale up to 24 kW / 30 kVA. This flexibility makes the inverter suitable for larger systems where higher power is essential, such as commercial setups or complex off-grid installations.
The C12/1600 is engineered for maximum efficiency, achieving up to 92% energy conversion. This high efficiency ensures optimal performance while reducing energy loss, which is crucial for off-grid and renewable energy systems. The inverter also features low power consumption modes, including AES and Search modes, which further optimise energy usage by significantly reducing idle power draw.
Safety and reliability are at the core of the C12/1600 design. The inverter is equipped with multiple protection mechanisms, including safeguards against output short circuits, overloads, and incorrect battery voltages. Additional protections for high temperatures and excessive input voltage ripple ensure that the inverter operates safely and reliably even under extreme conditions, safeguarding both the device and connected equipment.
The C12/1600 Inverter includes a VE.Bus communication port for seamless integration with Victron's suite of control and monitoring devices. Users can customise the inverter’s settings via VictronConnect or VEConfigure software, allowing fine-tuning of output voltage, frequency, and protection parameters. Integration with GX devices, such as the Cerbo GX, enables comprehensive monitoring and control, providing users with real-time data and remote management capabilities.
Constructed from high-quality aluminium with an IP21 protection rating, the C12/1600 is built to withstand challenging environments. Its compact dimensions (375 × 214 × 110 mm) and relatively light weight (10 kg) make installation straightforward, whether in confined spaces or mobile setups. The inverter’s fan-assisted cooling system ensures reliable operation across a wide temperature range, from -40 to +65 °C, making it suitable for a broad spectrum of applications, from indoor installations to harsh outdoor conditions.
Category | Specification | Details |
Model Version | C12/1600 | 12V Inverter with SinusMax technology |
Input Voltage Range | Voltage Range | 9.5 – 17 VDC |
Output | Output Voltage | 230 VAC ± 2 % |
Frequency | 50 Hz ± 0.1 % (adjustable to 60 Hz) | |
Performance | Continuous Output Power at 25 ºC | 1600 VA / 1300 W |
Continuous Output Power at 40 ºC | 1200 W | |
Continuous Output Power at 65 ºC | 800 W | |
Peak Power | 3000 W | |
Efficiency | Max Efficiency | 92 % |
Power Consumption | Zero Load Power | 8 W |
Power Consumption | Zero Load Power in AES Mode | 5 W |
Zero Load Power in Search Mode | 2 W | |
Communication | VE.Bus Port | For parallel, three-phase operation, remote monitoring, and system integration |
Remote Control | Remote On-Off | Yes |
Relay | Programmable Relay | Yes |
Protection | Protection Features | Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
Environmental | Operating Temperature Range | -40 to +65 ºC (fan assisted cooling) |
Humidity | Max 95 % (non-condensing) | |
Physical | Material & Colour | Aluminium, blue (RAL 5012) |
Protection Category | IP21 | |
Weight | 12 kg | |
Dimensions (H x W x D) | 520 x 255 x 125 mm | |
Standards | Safety | EN 60335-1 |
Emission Immunity | EN 55014-1 / EN 55014-2 |
SKU | VIC.CIN122160000 |
Model # | CIN122160000 |
Brand | Victron Energy |
Shipping Weight | 11.0000kg |
Shipping Width | 0.520m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Shipping Cubic | 0.031200000m3 |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
