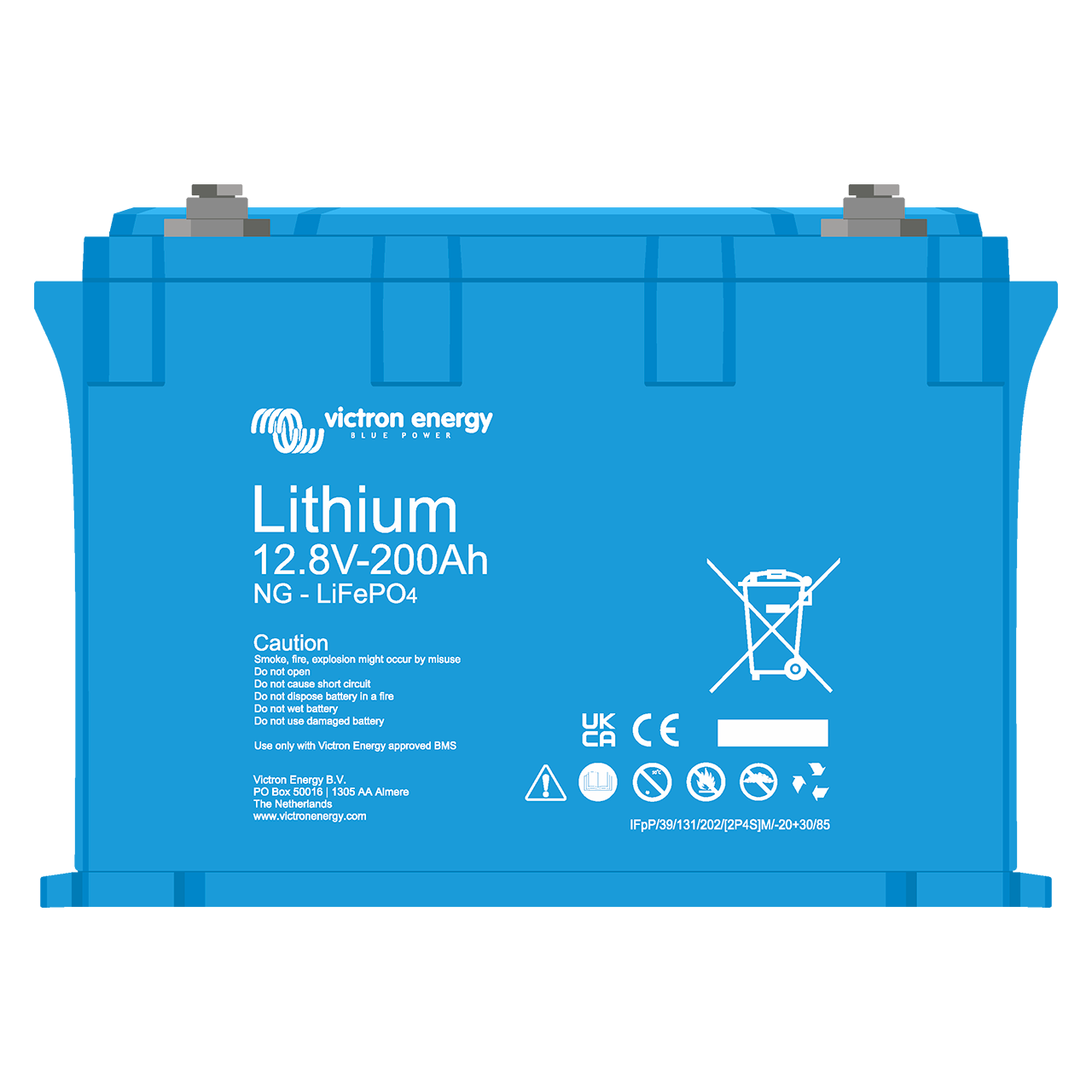

The Victron Lithium LiFePO4 Battery 12.8V/200Ah NG Series is designed for high-efficiency energy storage in a variety of applications, offering advanced Lithium Iron Phosphate (LiFePO4) technology. With a nominal capacity of 200Ah and a voltage of 12.8V, this battery is perfect for powering everything from off-grid solar systems to marine and automotive setups. Its enhanced cycle life and energy efficiency make it a superior choice for those seeking long-lasting performance and reliability.

Key Features:

  • Integrated shunt for real-time battery data transmission and state of charge calculation
  • Automatic setup and monitoring via VictronConnect app, GX device, or VRM portal
  • Increased ingress protection (IP65)
  • Low self-discharge rate of maximum 2% per month
  • Up to 5,000 cycles at 50% depth of discharge (DoD)
  • Built-in temperature and voltage protection
  • Bluetooth integration for easy monitoring and control through VictronConnect app.
  • Flexible mounting options with straps or mounting brackets, can be placed on its side.
  • Repairable design with removable battery cover
  • Compliance with UL1973, UL9540A, IEC62619 (pending) safety standards

Built for Durability and Safety

Built with a high ingress protection rating (IP65), the Lithium NG battery is resistant to dust and water, making it suitable for harsh environmental conditions. The battery is designed for easy mounting with secure brackets, ensuring stability during installation and operation. Its low self-discharge rate (≤ 3% per month) ensures that the battery maintains its charge over long periods without significant power loss, enhancing its overall reliability.

Flexible Integration for Scalable Power Systems

The Victron Lithium NG battery offers unparalleled flexibility in system configuration. It can be connected in series, parallel, or a series/parallel combination to form scalable battery banks. This makes it easy to create a system that meets the specific energy demands of your project. With the ability to connect up to 50 batteries, you can achieve an energy storage capacity of up to 384 kWh, ensuring that your system will grow with your needs.

Category Specification Details
Model Version BAT512120620 12.8V 200Ah Lithium LiFePO4 Battery, NG Series
Voltage Nominal Voltage 12.8 V
Capacity Nominal Capacity 200 Ah @ 25°C
Energy Nominal Energy 2560 Wh @ 25°C
Cycle Life Cycle Life at 80% DoD 2500 cycles
Discharge Max Continuous Discharge Current 200 A (1C)
  Max Pulse Discharge Current (10s) 400 A (2C)
  End of Discharge Voltage 11.2 V
Charge Max Continuous Charge Current 200 A (1C)
  Max Pulse Charge Current (10s) 400 A (2C)
Protection Protection Class IP65
Temperature Operating Temperature (Discharge) -20 °C to +50 °C
  Operating Temperature (Charge) +5 °C to +50 °C
  Storage Temperature -45 °C to +70 °C
Self-Discharge Rate ≤ 3% per month @ 25 °C
Mounting Options Strap or mounting brackets
Physical Dimensions (H x W x D) 235 x 341 x 160 mm
Weight Total 37 kg (estimated)
Battery Management System (BMS) Required BMS Lynx Smart BMS NG 500 A / 1000 A (separate purchase)
Standards Safety Standards UL1973, UL9540A, IEC62619 (pending)
  EMC EN 61000-6-3, EN 61000-6-2
  Automotive ECE R10-6 (pending)
SKU VIC.BAT512120620
Model # BAT512120620
UPC/EAN 8719076058915
Brand Victron Energy
Shipping Weight 18.4000kg
Shipping Width 0.430m
Shipping Height 0.200m
Shipping Length 0.310m
Unit Of Measure ea
