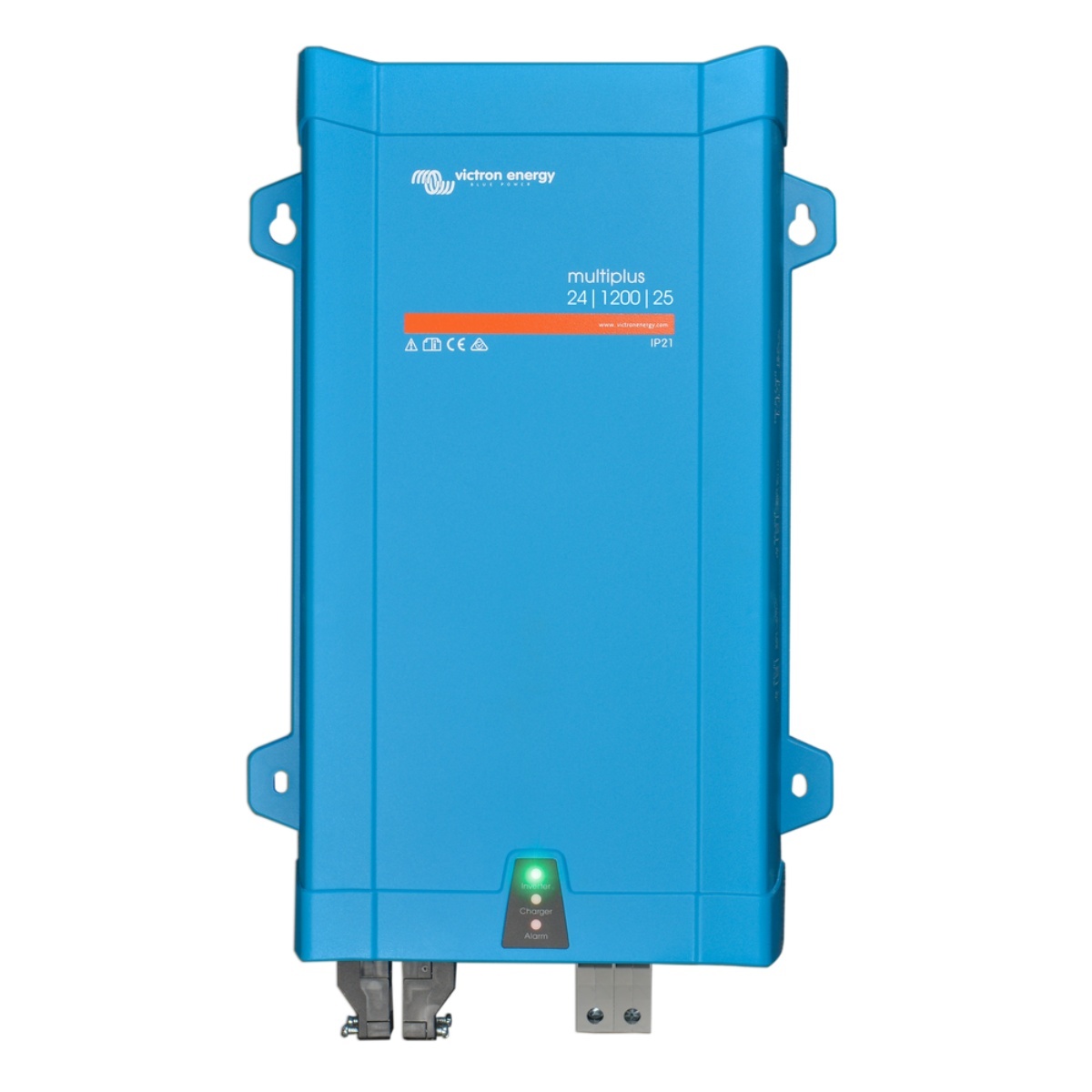

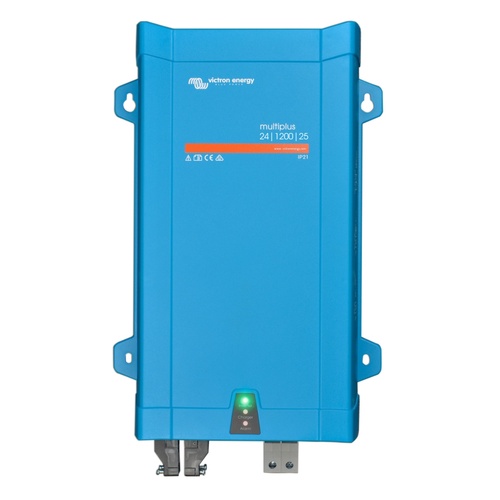

Victron MultiPlus Compact 24/1200/25-16 230V VE.Bus 5 combines a sine wave inverter, adaptive charger, and transfer switch, offering efficient power management.
SKU: VIC.CMP242120000 | MPN: CMP242120000
SAVE $125.80 (10%)
Out of Stock at Vendor Warehouse. Contact Us for an update on when stock will be available.
The Victron MultiPlus Compact 24/1200/25-16 230V VE.Bus is a versatile and high-performance inverter/charger designed to integrate seamlessly into various energy systems. Combining a powerful true sine wave inverter, a sophisticated battery charger with adaptive charging technology, and a high-speed AC transfer switch, this unit offers reliable and intelligent power management in a compact enclosure. Ideal for applications requiring flexibility, the MultiPlus 24/1200/25 ensures your energy needs are met efficiently and effectively.
The MultiPlus 24/1200/25 features PowerAssist technology, which helps manage limited shore or generator power by automatically compensating with battery power when peak demands exceed the available supply. This function ensures continuous operation of your electrical devices, particularly during short periods of high power usage. By supplementing shore or generator capacity, the MultiPlus minimises overloads and protects against power interruptions, offering seamless power management when you need it most.
Equipped with a four-stage adaptive charger, the MultiPlus 24/1200/25 intelligently adjusts the charging process to optimise battery performance. The system adapts to the battery’s condition, ensuring fast and safe charging while extending battery life. A dedicated output for trickle charging a secondary battery, such as a starter battery, further enhances the versatility of this device, making it an excellent choice for both primary and auxiliary power needs.
The MultiPlus 24/1200/25 offers easy configuration and monitoring through a variety of options. Basic settings can be adjusted using DIP switches, while more advanced configurations are accessible via VE-Config software or the VE.Bus Smart dongle. For comprehensive system control, integration with the Cerbo GX or other GX devices allows for monitoring via the VRM (Victron Remote Management) portal. This setup provides complete oversight of your system’s performance, enabling you to make real-time adjustments remotely.
For demanding applications, the MultiPlus 24/1200/25 supports parallel operation, allowing up to six units to work together for increased power output. Additionally, three units can be configured to deliver three-phase power, offering a scalable solution tailored to complex installations. This capability makes the MultiPlus 24/1200/25 an ideal choice for expanding power needs or integrating into larger energy systems.
Safety is a priority with the MultiPlus 24/1200/25, which includes multiple built-in protections such as output short circuit, overload, and high-temperature shutdown. A programmable relay is available for various functions, including alarm signalling and generator start/stop commands. These features provide an added layer of safety and control, ensuring that the MultiPlus operates reliably under a wide range of conditions.
Despite its compact size, the MultiPlus 24/1200/25 delivers high start-up power, making it suitable for devices with high inrush currents, such as electric tools or LED lighting systems. Its robust steel and ABS enclosure ensures durability, while the sleek design allows for easy integration into confined spaces. The unit’s compact form factor, combined with its powerful performance, makes it a versatile and reliable choice for diverse power management needs.
Category | Specification | Details |
Model Version | MultiPlus 24/1200/25 | 24 Volt, 1200 VA Inverter/Charger |
Inverter | Input Voltage Range | 19 – 33 V |
Output Voltage | 230 VAC ± 2% | |
Output Frequency | 50 Hz ± 0.1% | |
Continuous Output Power at 25°C | 1200 VA / 1000 W | |
Continuous Output Power at 40°C | 900 W | |
Continuous Output Power at 65°C | 600 W | |
Peak Power | 2400 W | |
Maximum Efficiency | 93 / 94 / 95% | |
Zero-Load Power | 10 / 9 / 10 W | |
Zero-Load Power in Search Mode | 3 / 3 / 3 W | |
Charger | AC Input Voltage Range | 187-265 VAC |
Input Frequency | 45 – 65 Hz | |
Charge Voltage (Absorption) | 28.8 V | |
Charge Voltage (Float) | 27.6 V | |
Storage Mode Voltage | 26.4 V | |
Charge Current House Battery | 25 A | |
Charge Current Starter Battery | 1 A | |
General | Programmable Relay | Yes |
Protection | Short circuit, Overload, Battery voltage too high/low, High temperature, 230 VAC on inverter output, Input voltage ripple too high | |
VE.Bus Communication Port | For parallel and three-phase operation, remote monitoring and system integration | |
Remote On-Off | On/off/charger only | |
DIP Switches | Remote / battery charge voltage / inverter frequency / search mode | |
Internal DC Fuse | 100 A | |
Operating Temperature Range | -40 to +65 °C (fan assisted cooling) | |
Enclosure | Material & Colour | Steel/ABS (blue RAL 5012) |
Protection Category | IP21 | |
Battery Connection | 25 mm² | |
230 VAC Connection | Screw | |
Weight | 8.2 kg | |
Dimensions (h x w x d) | 406 x 250 x 100 mm |
SKU | VIC.CMP242120000 |
Model # | CMP242120000 |
Brand | Victron Energy |
Shipping Weight | 12.0000kg |
Shipping Width | 0.520m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Shipping Cubic | 0.031200000m3 |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
