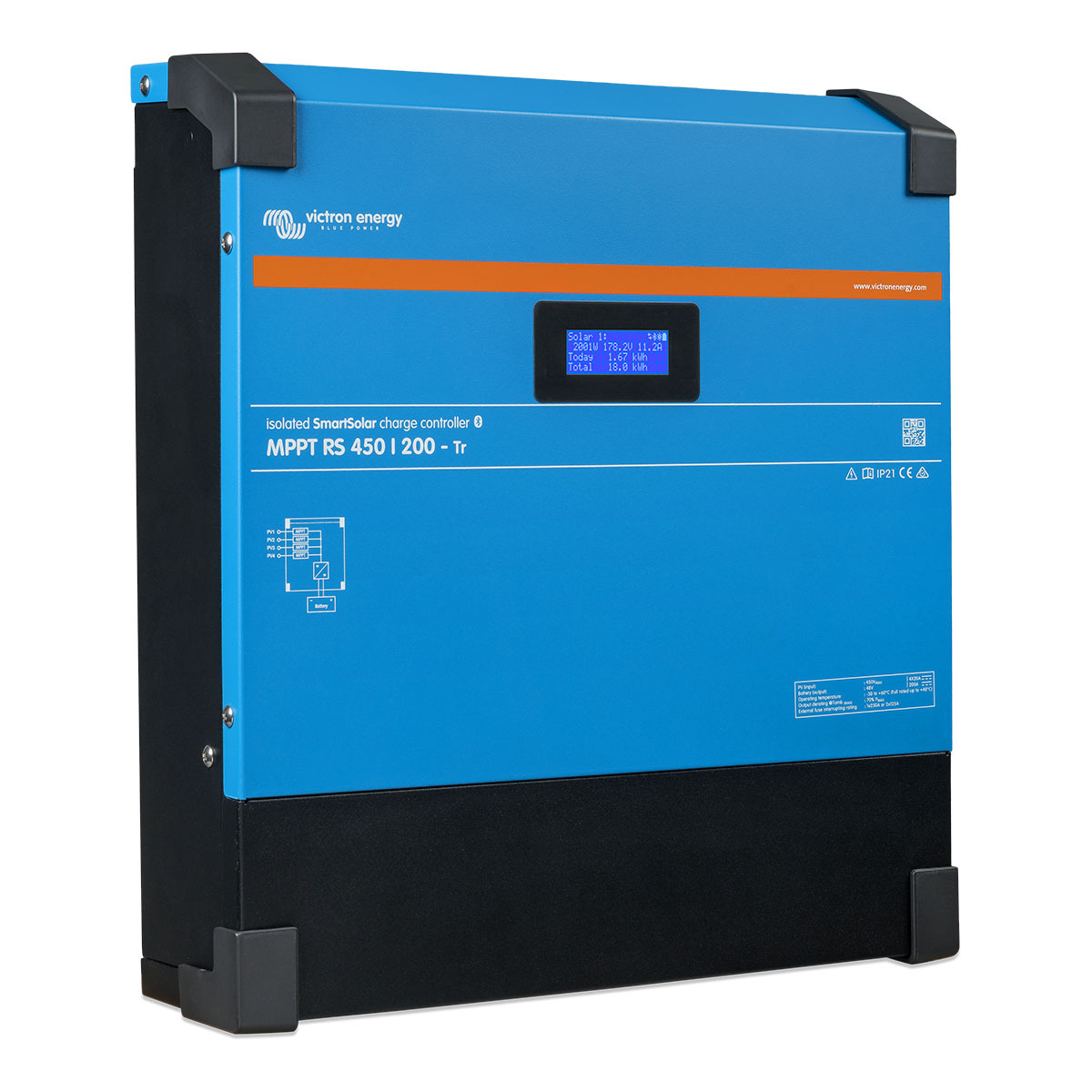

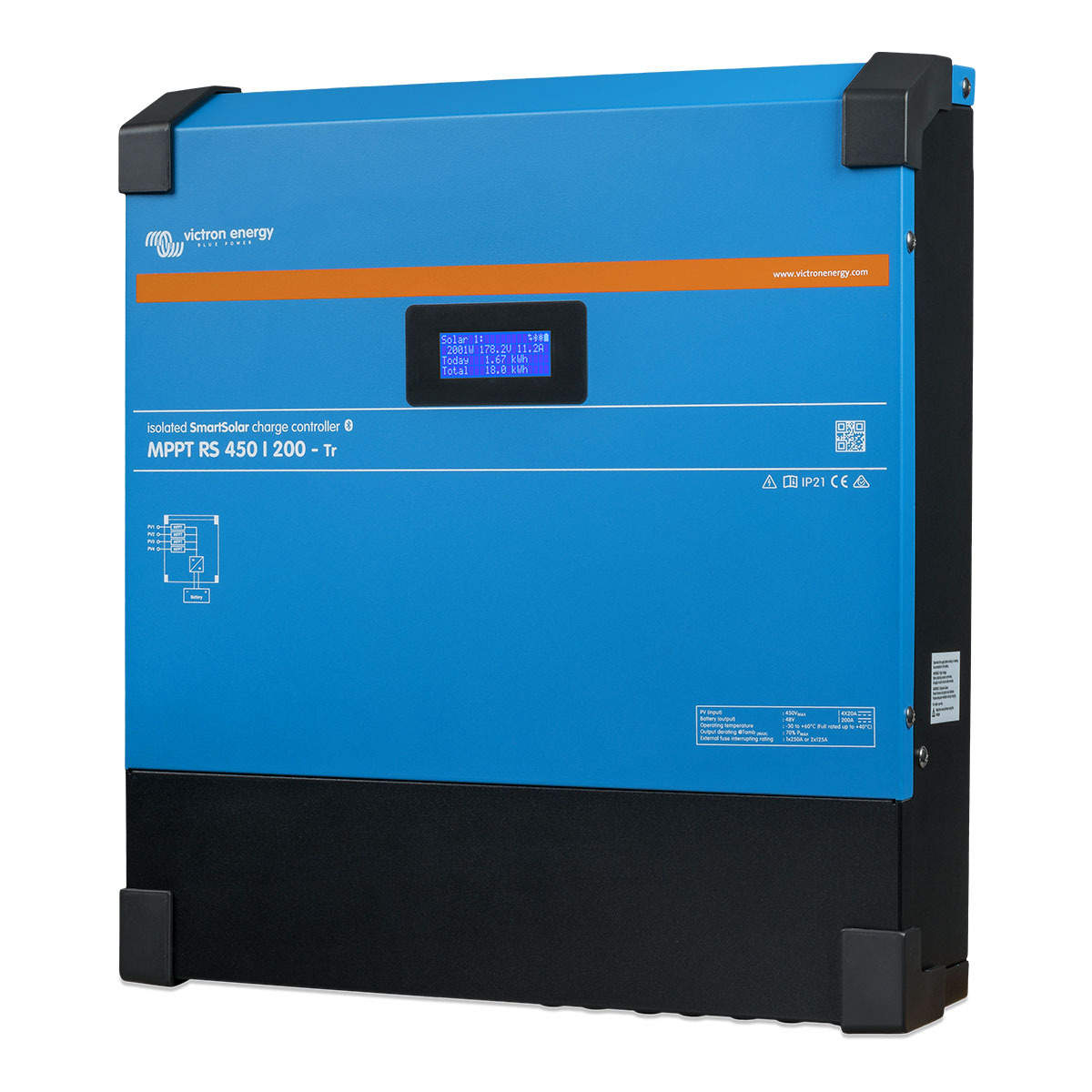

Victron SmartSolar MPPT RS 450/200-MC4

The Victron SmartSolar MPPT RS 450/200-MC4 represents a cutting-edge solution for large solar energy systems. This product is designed to efficiently manage large series-connected PV arrays, charging 48V DC battery banks. It's an ideal choice for extensive off-grid and grid-connected battery systems.

Key Features:

• Models and Power Range: Available in 5.76kW and 11.52kW models.
• Voltage Input Range: Wide operating solar voltage input between 80-450 VDC.
• Independent Tracking Inputs: Allows for efficient energy conversion.
• Connectivity: Features full connectivity options, including Bluetooth.
• Safety and Design: New metal case with isolated PV connections and fully covered electrical terminals enhances safety and aligns with Victron's modern product suite.
• Ultra Fast MPPT: Ensures optimal power extraction from PV arrays, suitable for 80-450 Volt Voc.
• Programmable Charging: Compatible with various battery chemistries including lead-acid and lithium, with fully customizable charge settings.
• VictronConnect App: Remote control and configuration via Bluetooth, providing comprehensive monitoring and management.
• Daisy Chain Capability: Equipped with VE.Can bus ports for syncing multiple units.
• Remote Monitoring and Control: Integration with Victron Remote Management Portal (VRM) for comprehensive remote access and control.

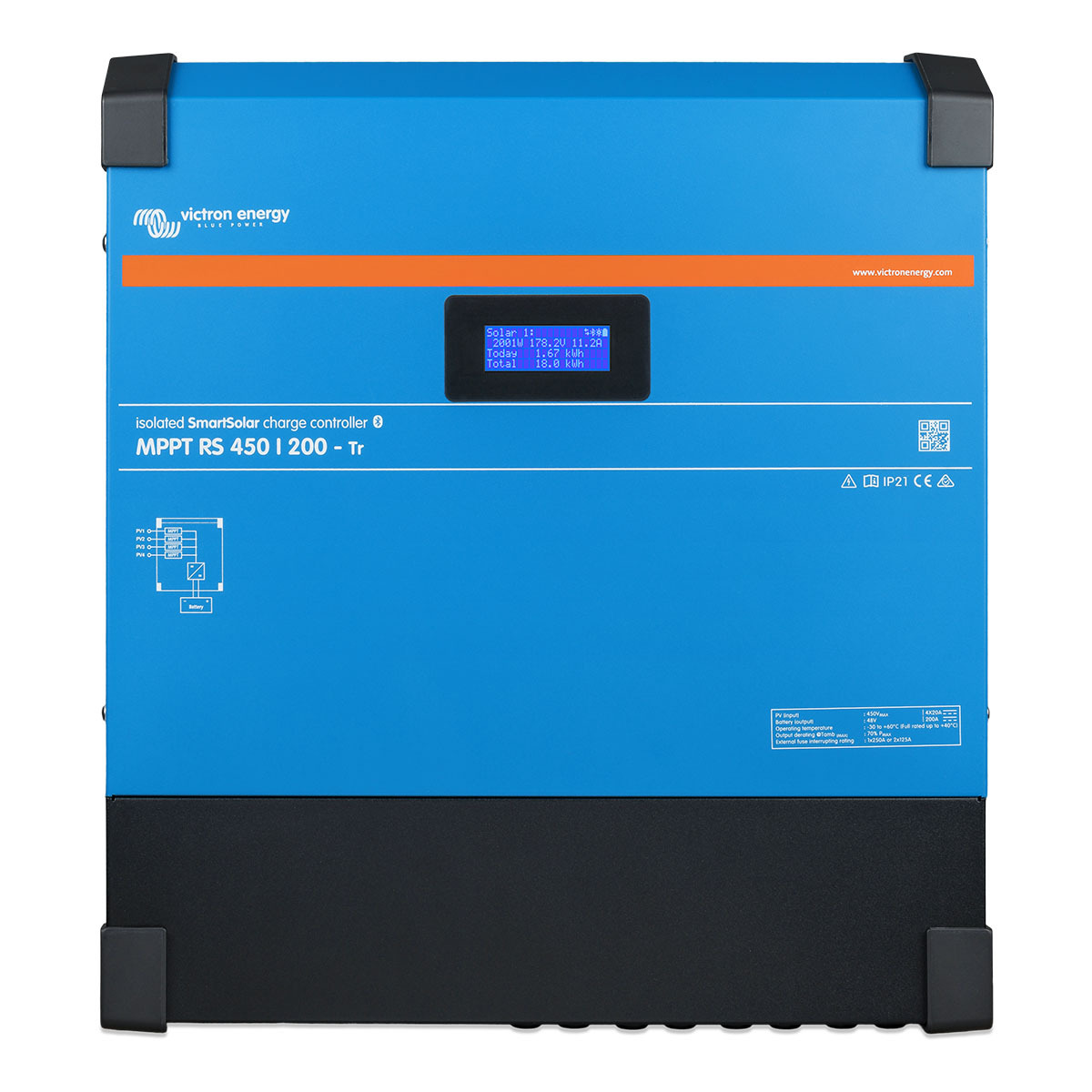

• SmartSolar Display: Front panel display showing key metrics like battery volts, charge current, and array voltages.
• I/O Connections: Includes programmable relay, remote temperature, and voltage sensing options. Compatible with various BMS types.
