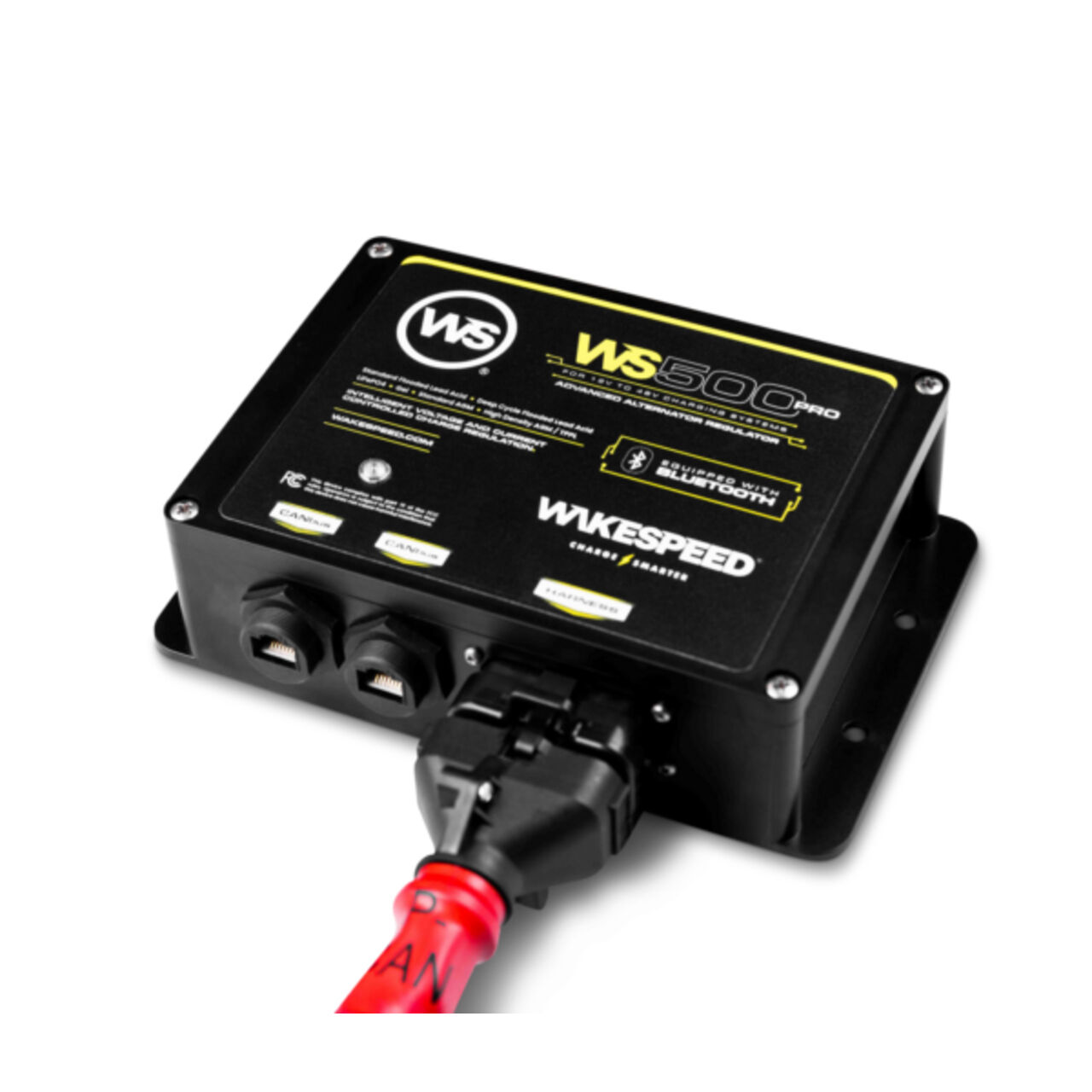

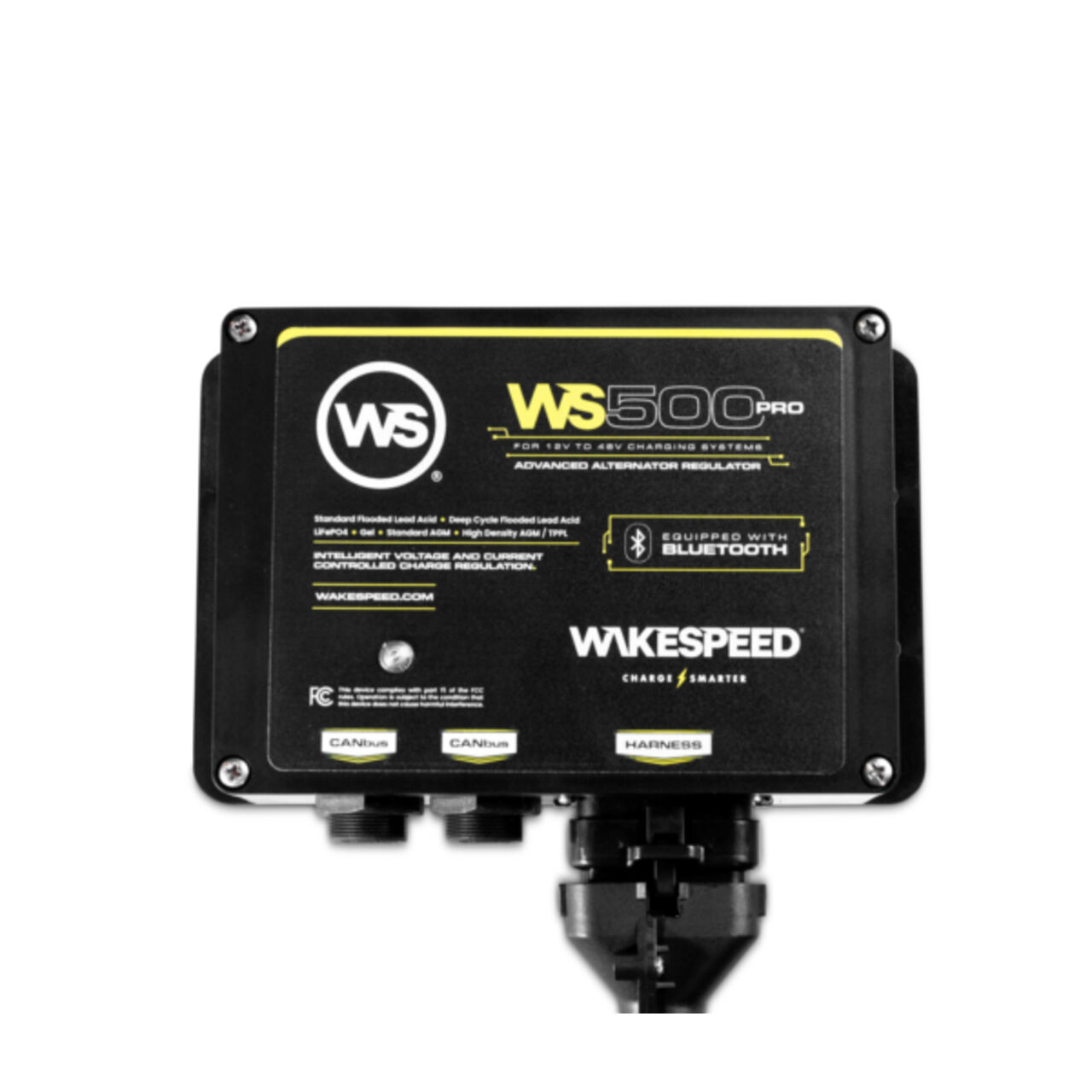

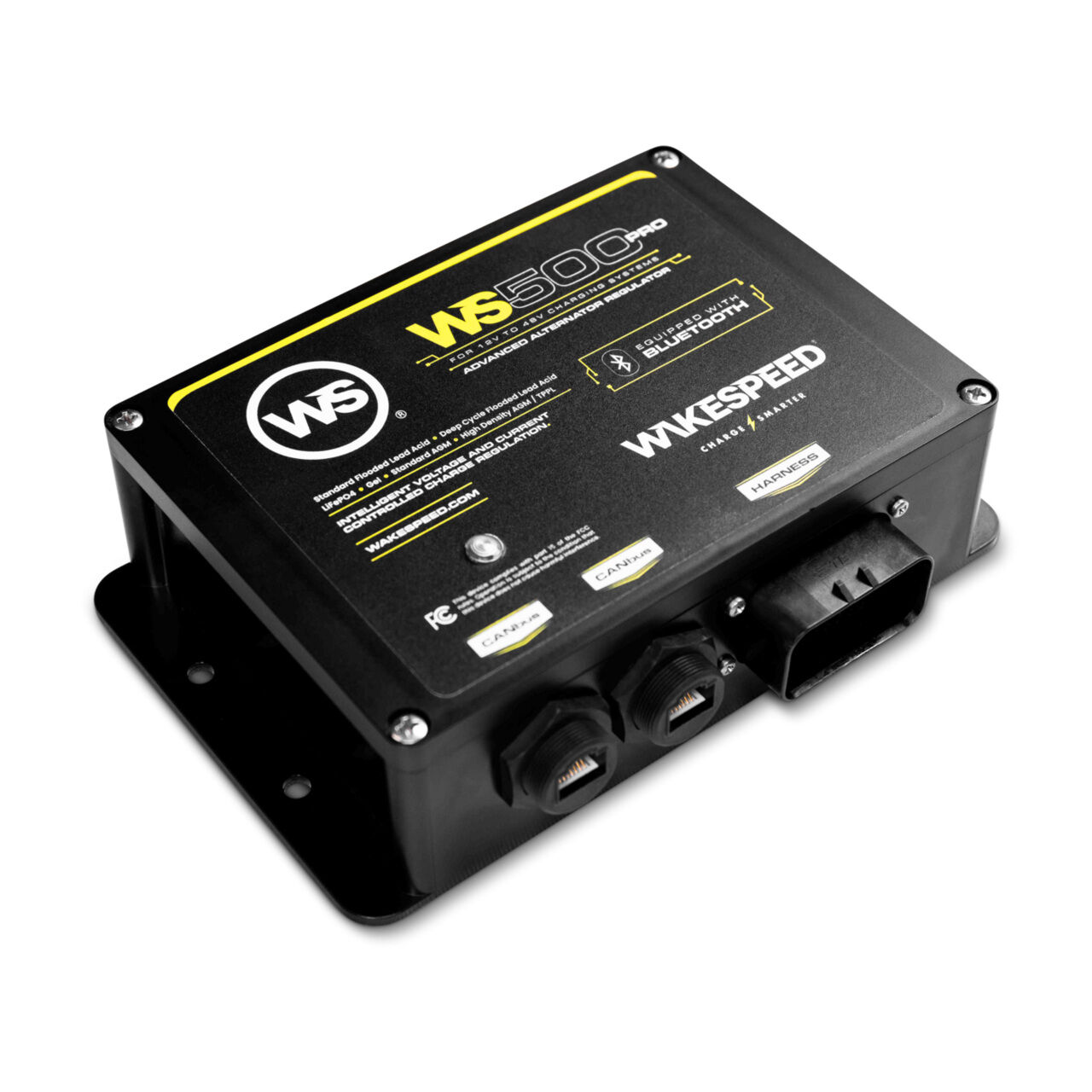

Wakespeed WS500 Pro Bluetooth® Alternator Regulator

Please note: You will require a wiring harness for your installation.

For P-Type with CAN augmentation, have a look here.

Intelligent alternator regulator with configurable charging, CAN integration, and wireless control

This advanced alternator regulator delivers precise multi-metric charging control, dynamically managing alternator output based on voltage, current, and temperature targets. Automatically detecting 12 V, 24 V, and 48 V system voltages, it supports tailored battery profiles, selectable alternator polarity, CAN-based integration, thermal sensing, and Bluetooth configuration via the Wakespeed Mobile App. Its flexible design enables alignment with battery specifications, alternator capabilities, and system requirements for safe, efficient, and intelligent charging control.

Key Features

• Automatic multi-voltage detection: Supports 12 V, 24 V and 48 V systems with fully customisable operating ranges up to 48/52 V.
• Multi-parameter charge regulation: Controls alternator output using voltage, current and temperature targets for aligned battery charging.
• Selectable alternator polarity: Compatible with both P-type and N-type field wiring via appropriate harness selection.
• Preset and configurable charge profiles: Includes factory DIP-switch battery programs and full customisation through the mobile app.
• Thermal controlled charging: Alternator and battery temperature sensing adjusts charging output and voltage targets for safety and performance.
• Bluetooth configuration and monitoring: Supports setup, tuning, diagnostics and firmware management via the Wakespeed Mobile App.
• Advanced CAN integration: Uses J1939-based CAN protocols with support for multiple marine, RV and energy system standards.
• BMS communication support: Interfaces with CAN and proprietary battery management systems for smart charging coordination.
• USB-access advanced settings: Enables deep configuration and firmware updates through onboard USB port.

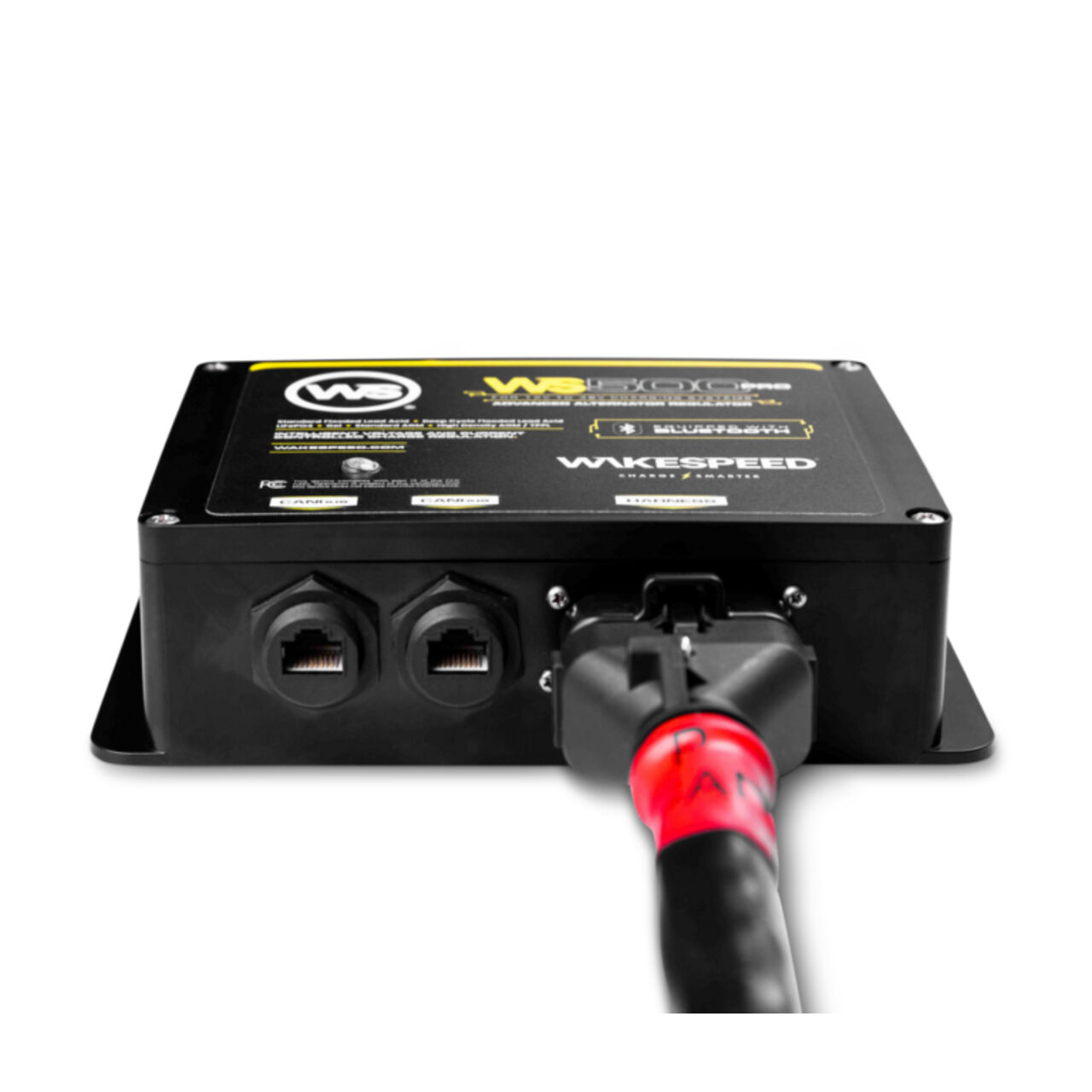

• Rugged harness and connectors: Includes colour-coded tinned wiring with Ampseal 23-pin connector and ruggedised RJ45 interface.
• Internal safety protections: Actively monitors internal temperature and charging conditions to protect components and ensure stable operation.

Balanced for clarity and technical relevance, this regulator delivers the essential capabilities needed for modern intelligent charging installations.
