Victron EasySolar 12/1600/70-16 230V MPPT 100/50 Inverter Charger System

Integrated 12-volt, 1600-VA inverter charger with a 100/50 MPPT charge controller, PV array combiner and AC power distribution.

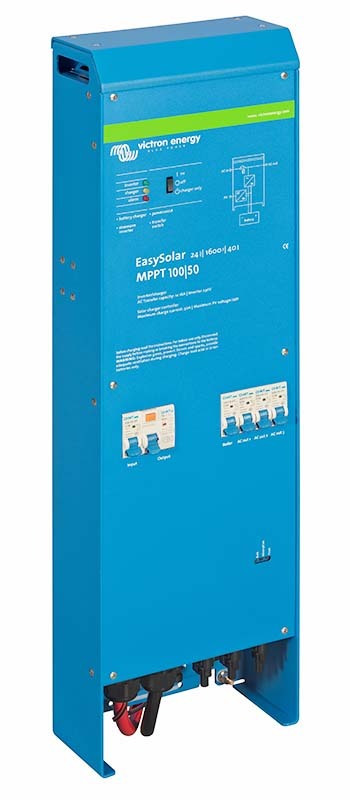

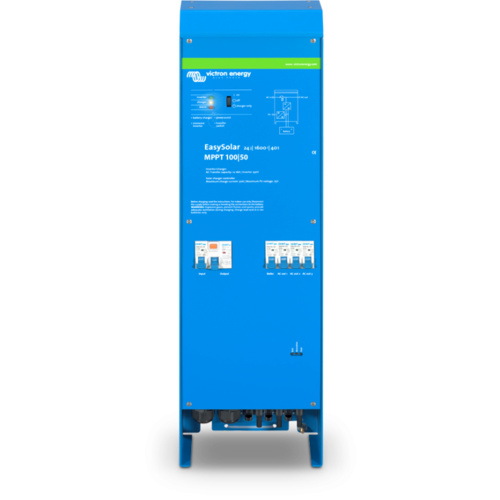

The EasySolar is an all-in-one solar power solution. It incorporates the following hardware in a compact vertical cabinet:

• Multiplus Compact 12/1600/70 inverter charger
• Bluesolar MPPT 100/50 solar controller
• AC Circuit Breakers and RCD
• PV Array Combiner (Three sets of MC4 PV connectors)

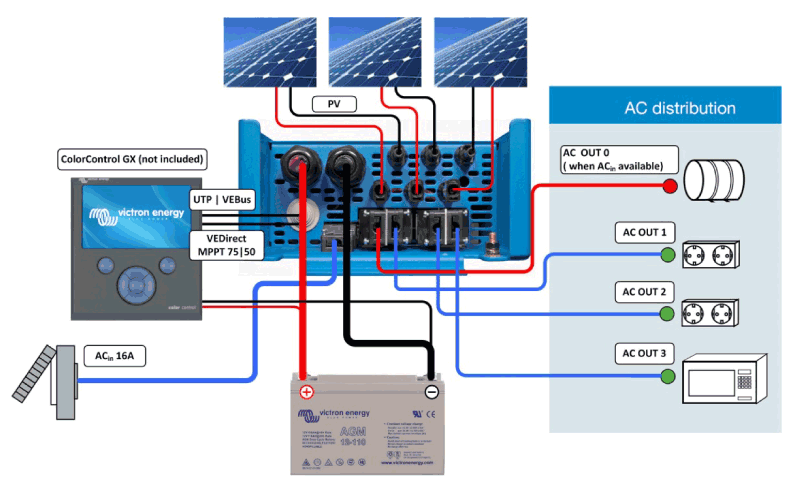

With a minimum of wiring the device is easy to install and combines all the features of the Multiplus, Bluesolar MPPT and is completed with the AC distribution functionality, which consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

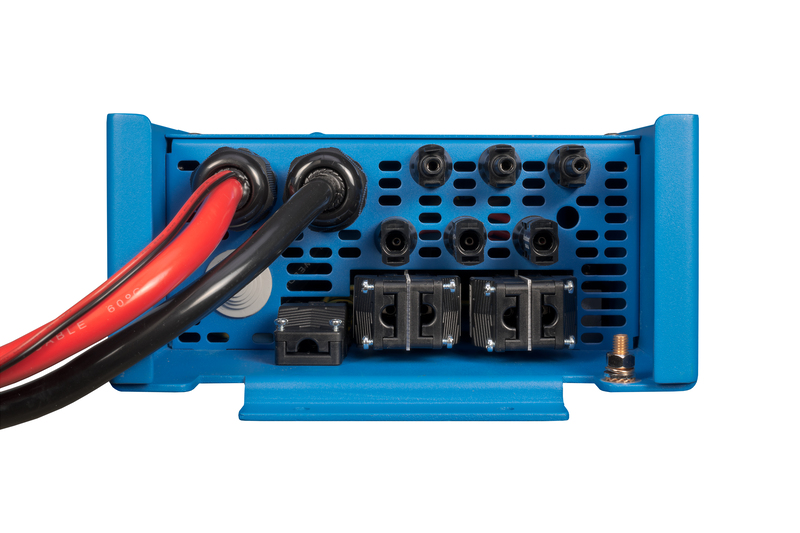

Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.

Included features include:

Mulitplus

• True sine wave inverter
• Adaptive charging
• Hybrid PowerAssist
• PowerControl
• Multiple system integration

MPPT

• Advanced Maximum Power Point Detection
• Three Step Charging
• Inbuilt additional electronic protection provides
  • PV short circuit and PV reverse polarity protection
  • PV reverse current protection.

Unique solar application software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications. Please see Victron Downloads
