Made for your helm.

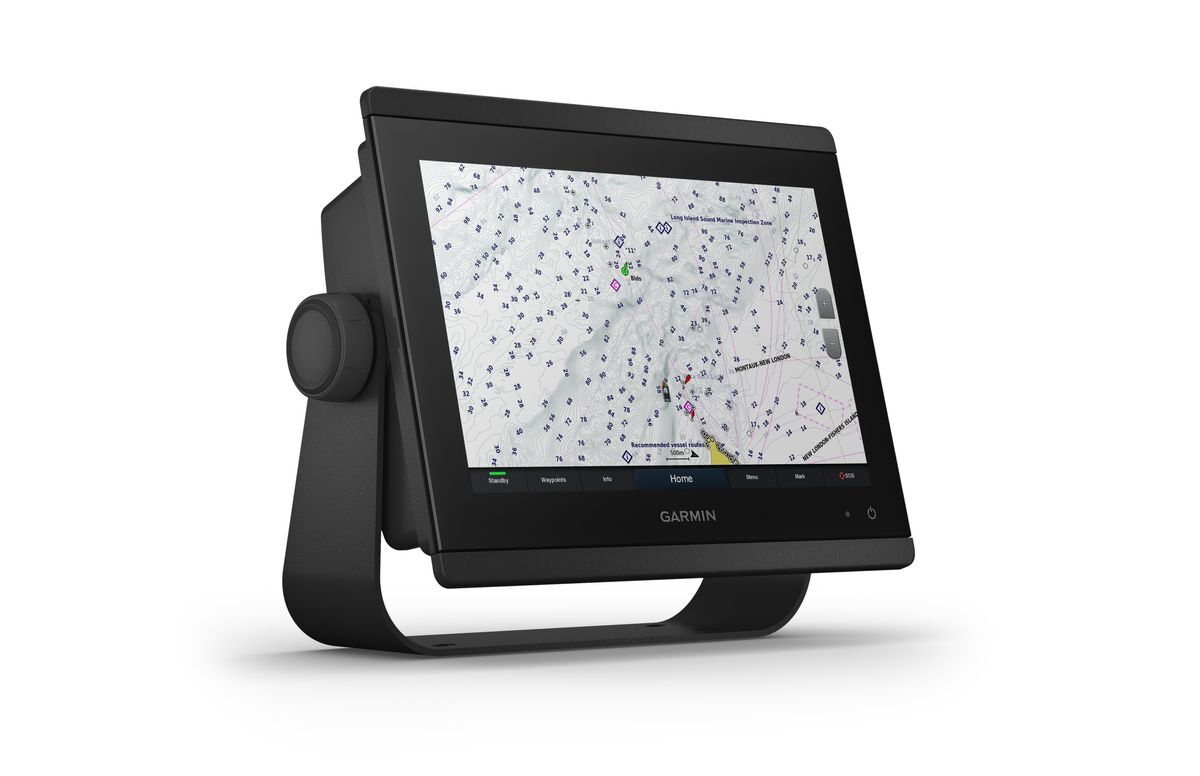

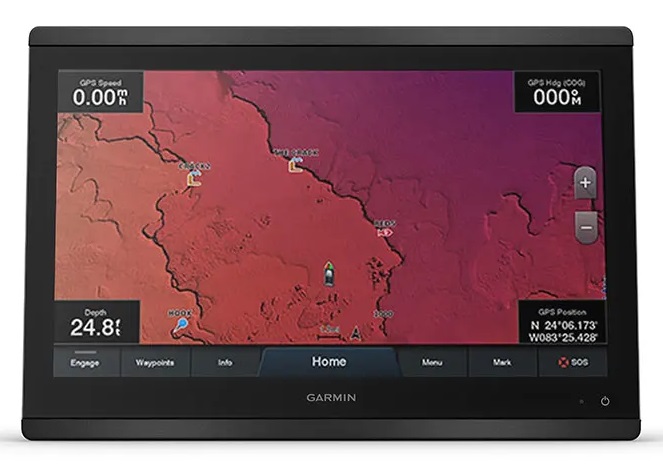

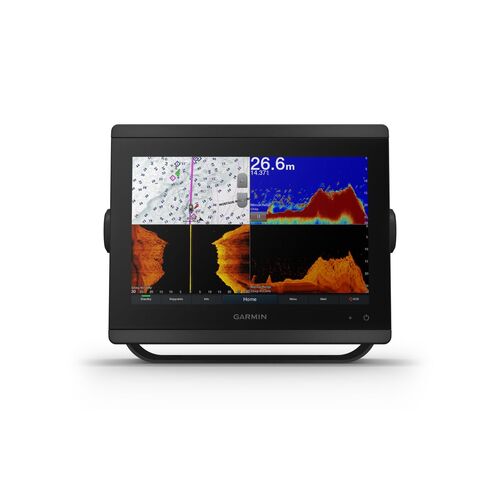

HD IPS DISPLAY WITH TOUCHSCREEN
This large 10” display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.
SIMPLE, ATTRACTIVE MOUNTING OPTIONS

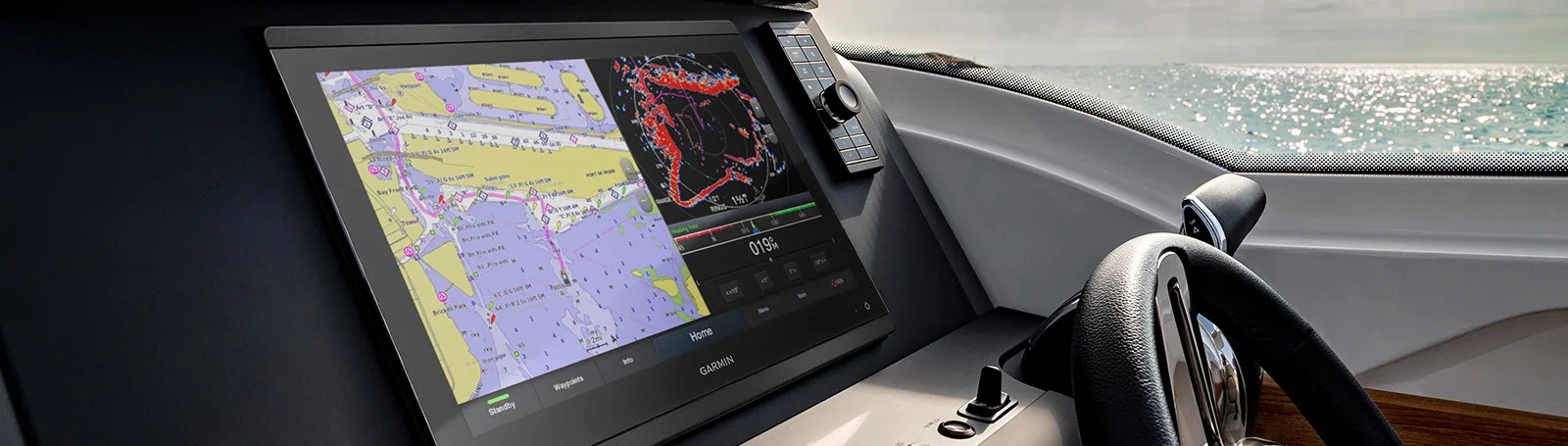

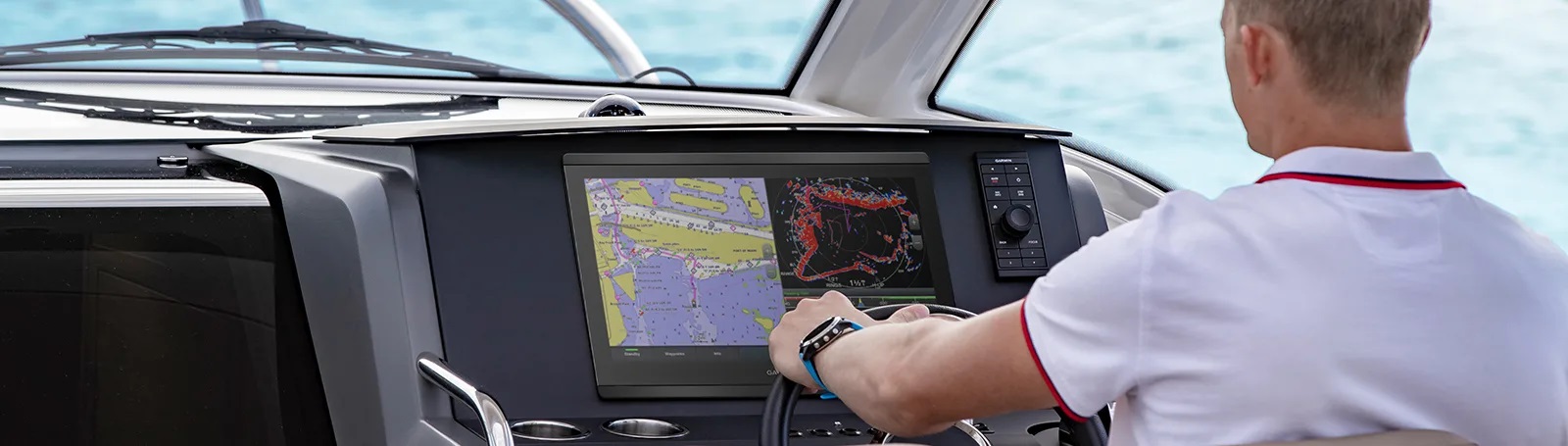

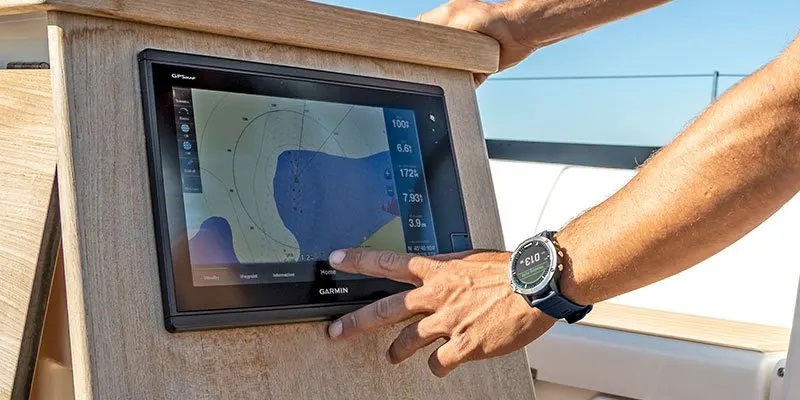

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.
GRID™ 20 REMOTE CONTROL
The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.
See the world below.

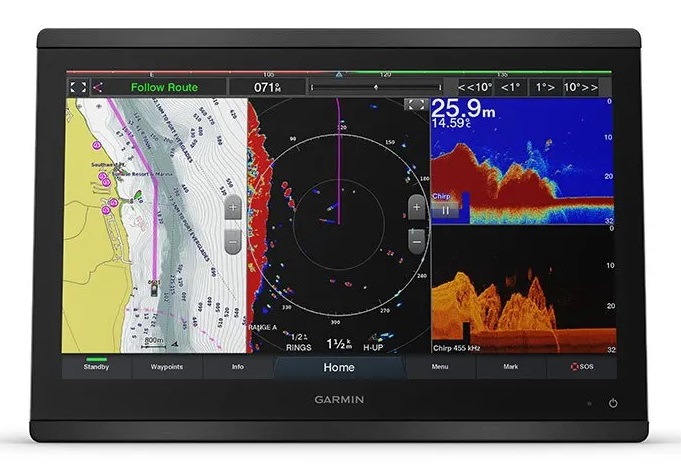

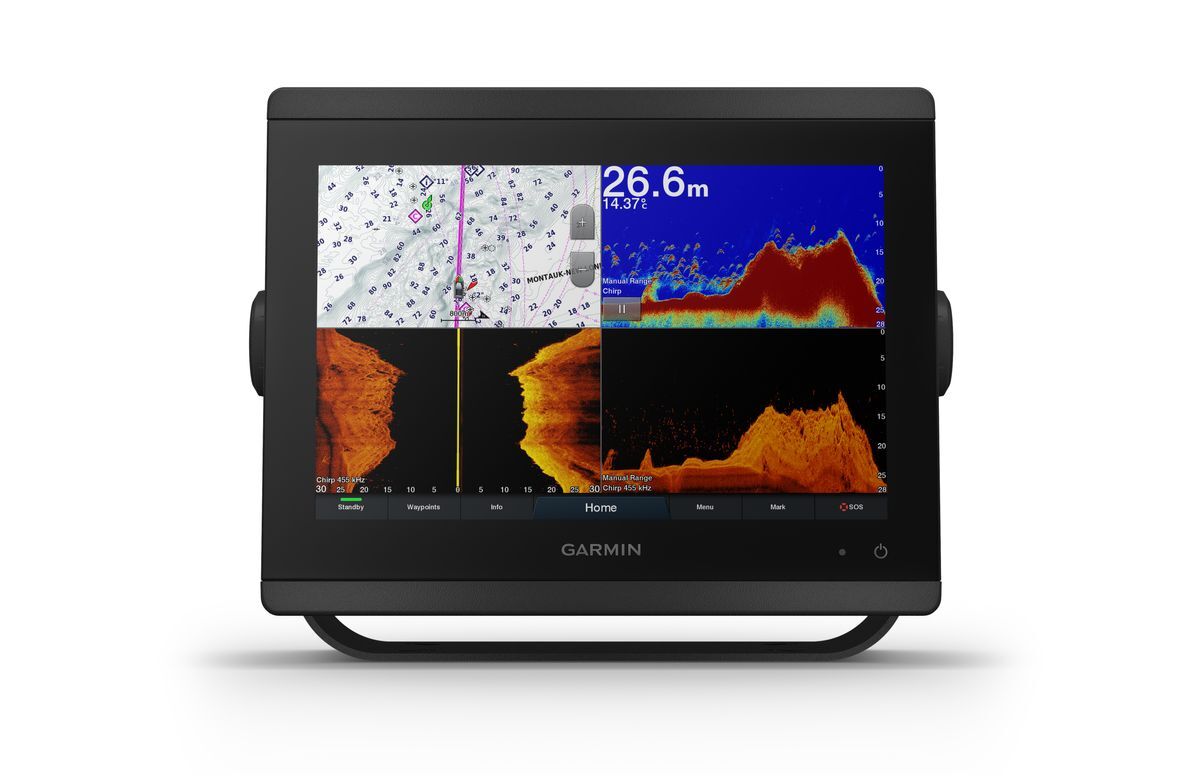

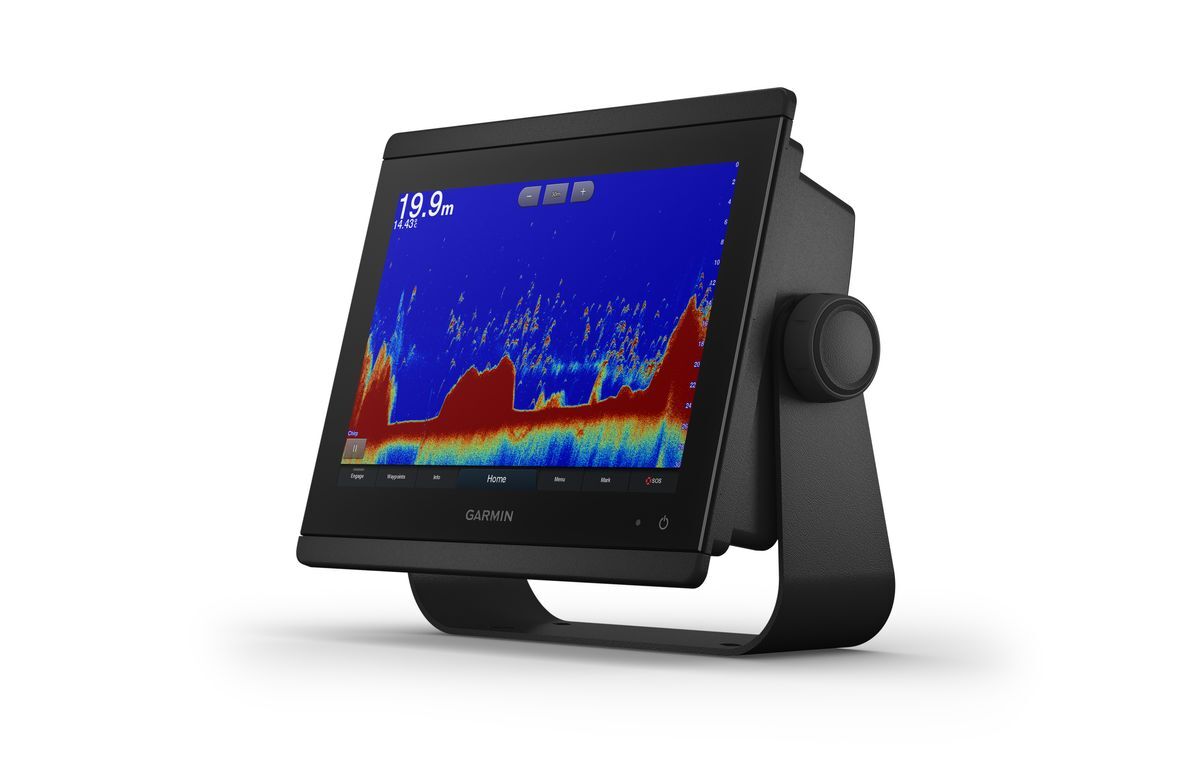

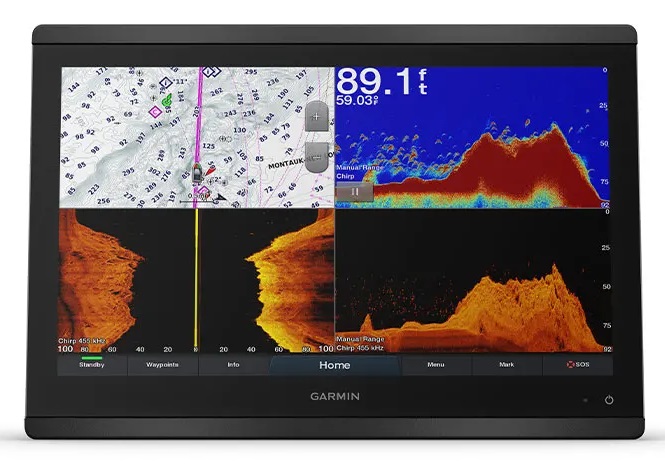

TRADITIONAL AND SCANNING SONAR SUPPORT
Get built-in support for 1-kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (transducer sold separately).
PANOPTIX™ SONAR SUPPORT

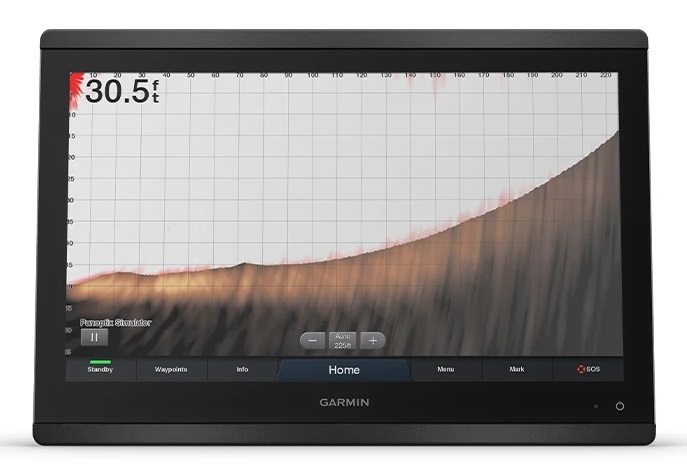

Pair your chart plotter with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real-time.
Sail and navigate with ease

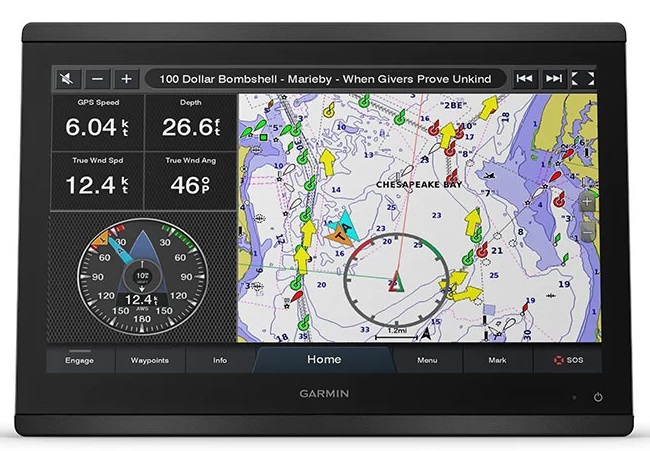

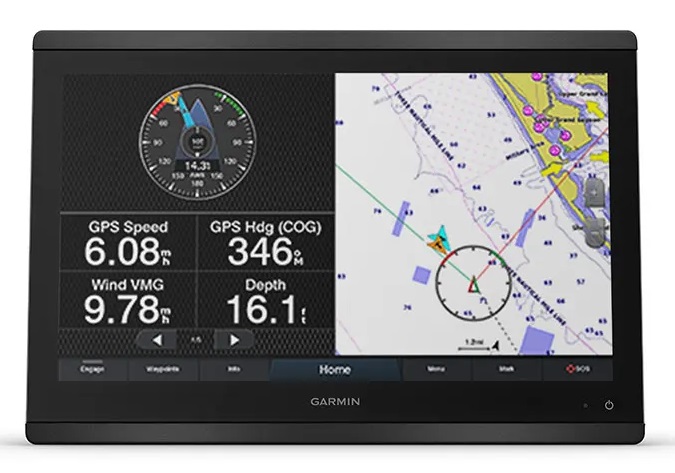

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.
Experience unparalleled coverage and detail with optional BlueChart® g3 coastal charts featuring integrated Garmin and Navionics® content and Auto Guidance1 technology.
Connect to everything on your boat.
GARMIN MARINE NETWORK
If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
NMEA 2000® AND NMEA 0183 NETWORKS

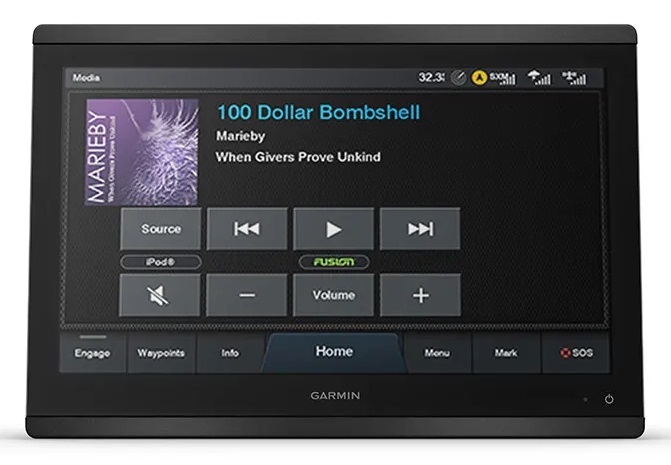

Connect to autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

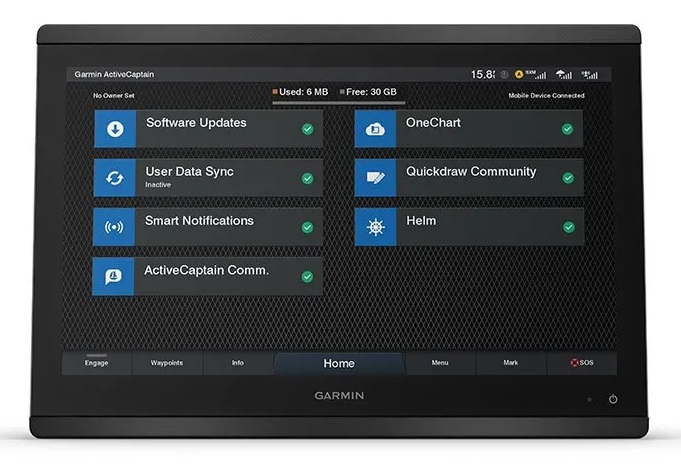

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES

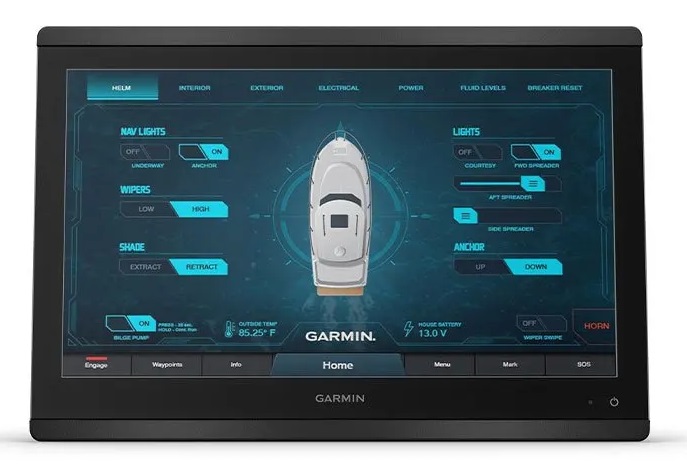

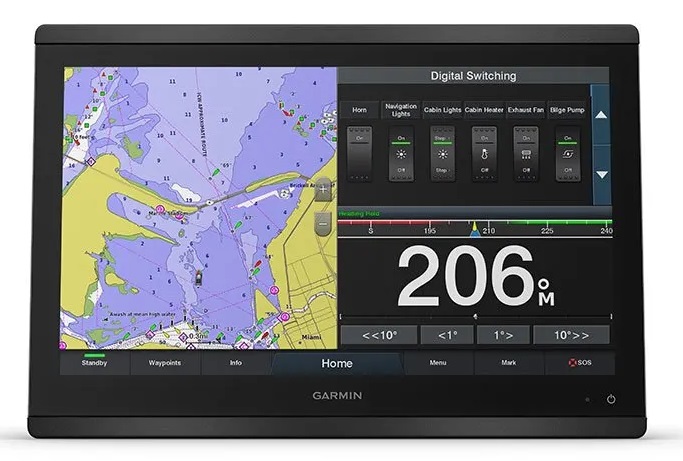

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.
SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
Manage your marine experience using the free ActiveCaptain® app
Show the sea what you’re made of with the quatix® 6X Solar smartwatch.

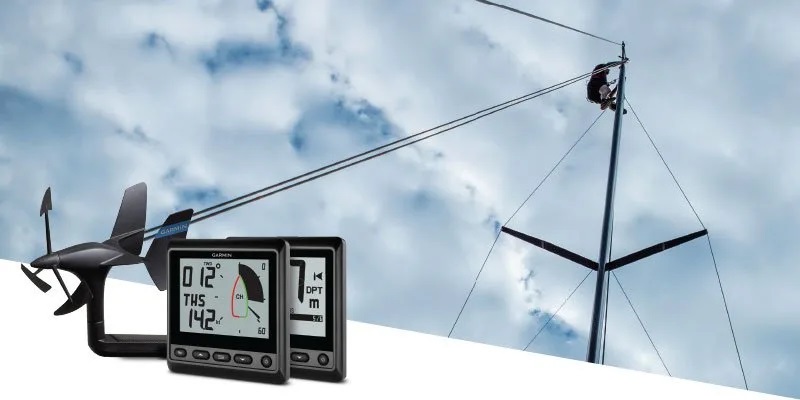

Make confident decisions using GNX™ Wind Instruments.
1 When paired with a compatible smartphone
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations
Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
Physical & Performance
|8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)
|10 to 32 Vdc
|1920 x 1200 pixels
|10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)
|Built-in Receiver Hz
5.2 lbs (2.4 kg)
|Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Maps & Navigation
2 microSD cards
|NMEA 0183 compatible
|Has built-in receiver
|Supports DSC (displays position data from DSC-capable VHF radio)
|LakeVü g3 Ultra
|NMEA 2000® compatible
|Typical current draw at 12 Vdc
|NMEA 2000® ports
|Panoptix™ all-seeing sonar
|Garmin Marine Network™ ports
|GSD™ Black Box sonar support
|Maximum current draw at 12 Vdc
|Garmin SmartMode compatible (customizable monitor presets)
|Built-in Auto Guidance
|Maximum power usage at 10 Vdc
|GCV™ Black Box sonar support
|BNC external GPS antenna port
|NMEA 0183 input (Rx) ports
|Spoken audio alerts
|BlueChart® g3 Vision®
|Garmin Wi-Fi® network (local connection)
|Keyed assist buttons
|Garmin Quickdraw™ Contours
|Supports AIS (tracks target ships position)
|8-pin transducer ports
|Video output ports
|Raster chart support
|NMEA 0183 input (Tx) ports
|50 saved tracks
|Wireless remote compatible
|Supports FUSION-Link™ compatible radios
|12-pin transducer ports
|Traditional sonar (dual frequency/beam)
|GRID™ (Garmin Remote Input Device) compatible
|Video input ports
1 (BNC composite); 1 HDMI (HDCP compliant)
