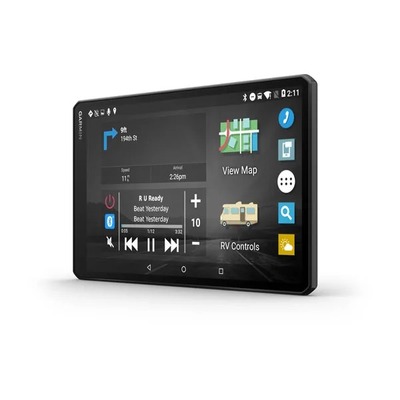

*Vieo Display required 8 inch RV 853 or 10 inch RV 1053

Also requires surface/ wall mount kit available here for wall mounting or Mounting kit for Mercedes Sprinter here.

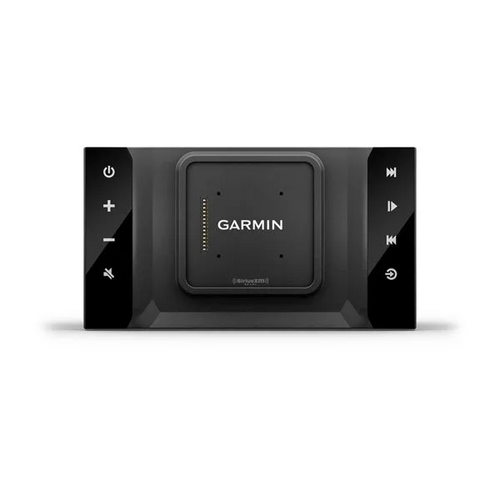

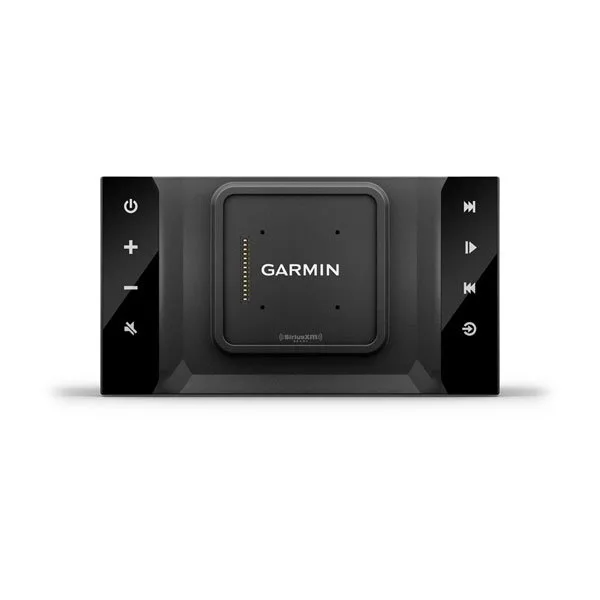

DISPLAY DOCK

This stereo dock is compatible with Vieo 7”, 8” or 10” displays.

GARMIN NAVIGATION

The touchscreen display offers Camper-specific Garmin navigation with hands-free voice control, Camper routing, driver alerts, points of interest and more.

CONTROL ONBOARD SYSTEMS

When the consumer purchases an applicable EmpirBus system (sold separately), they’ll get fully customisable control and monitoring of their onboard systems through a personalised interface.

FUSION ENTERTAINMENT

When you buy the fully integrated infotainment system, you’ll get the best of FUSION sound system entertainment.

CHOOSE YOUR SOURCE

This premium sound system features a variety of source options, including Sirius XM®, AM/FM radio, AUX and USB connections, Apple AirPlay and UPnP.

MULTI-ZONE TECHNOLOGY

Take control of the balance, subwoofer and volume levels in 4 personalised audio zones1 from the stereo dock or FUSION-Link app.

DIGITAL AUDIO BROADCASTING

Listen to digital audio broadcasting right from the dock when it’s installed in your Camper.

Dock Control buttons Power, volume up/down, mute, fast forward, play/pause, rewind, source
Display sizes Accommodates RV 2020 Series 7", 8" and 10" displays
Fits DDIN cut-out Yes
Stereo Features Sources AM/FM RDS / Bluetooth / Apple AirPlay 2 Wi-Fi audio streaming / USB audio / AUX x2 / UPnP / MTP / SiriusXM-ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ (available in Europe and Australia only)
DAB+ DAB ensemble and DAB/DAB/DAB/FM service following both on RV 52
Radio features Dual tuner (RV 52), REG/regional setting, Alternate Frequency (AF) setting
Number of presets 15 presets on each: AM/FM/DAB/SiriusXM
Multi-zone technology Yes, four independent audio zones are available for a customized listening experience
Digital Signal Processing (DSP) Yes, using environmental information and customised Fusion speaker profiles, you can now achieve customized optimized audio
Fusion-link control (wireless) Yes, via the Fusion-Link smartphone app
PartyBus technology Yes (receive and broadcast - wired or wirelessly). Audio distribution network that allows the ability to switch between Party Mode and Personal Mode without disrupting the audio in other areas of the vehicle.
Bluetooth wireless technology Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols) up to 10 meters (30 feet)
WiFi Yes
ANT technology Yes (up to 3 meters (10 feet))
Internal amplifier Class-D
Peak power 280W max
Audio output 4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+N
Cameras Connect up to 4 wired cameras and 1 with microphone input
Compatible with Garmin BC™ 35 wireless backup camera
Compatible devices
  • Garmin ConnectIQ watch models, ARX70, and ERX400 remotes for media controls
  • PartyBus networking with SRX400, RA770, and IN1501
  • EmpirBus Connect 50 and DCM family modules via NMEA 2000
Steering wheel control Integrates with compatible vehicle chassis steering wheel controls
Operating voltage +10.8 - 16V dc
Connections Line out 4 (1 x L + R per zone. Requires external amplification)
Auxiliary inputs 2 x RCA inputs (AUX1 stereo input, AUX2 camera audio input only)
Ethernet One Ethernet port
USB 2.0 port 2 x USB 2.0 port (1 for phone charging/media playback on the dash; 1 reserved for Garmin accessory use)
DAB+ DAB antenna FAKRA connector (RV 52), DAB100 accessory connector (RV 51)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 zone amplified)
RCA pre-out (Left, right and subwoofer) 2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness)
CAN 2 x CAN connections (for the vehicle and house/EmpirBus)
Ignition 2 ignition connections (powered from house batteries with dual on/off control from ignition and/or house switch; plus front panel on/sleep button)
Composite video 4 x CVBS inputs (for backup, blindspot, and forward looking cameras)
Digital I/O's 3 x camera selects, such that blind spot and back up can be triggered both automatically and manually by user via SW
Compliance Operating voltage +10.8V - 16V DC
Regions USA, Canada, Europe, EU DoC, Australia and New Zealand
Certification FCC, RSS (Canada), CE, USB, Bluetooth SIG, Apple Mfi (tbd), WiFi (tbd), RoHS
SKU GAR.010-02348-01
UPC/EAN 753759255015
Brand Garmin
Shipping Weight 0.5000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.025m
Shipping Cubic 0.000003000m3
Unit Of Measure ea
