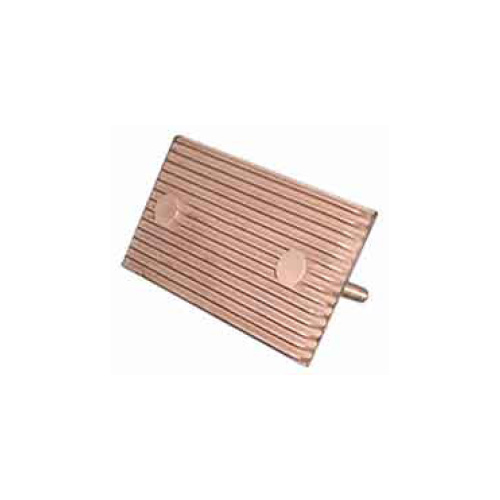

MOONRAKER Copper Earth Plate

Surface area: 1265 sq cm (1.21 sq ft); Dimensions 240x130x20mm (9.5x5x0.75in); Impedance less than 1 ohm (measured) at 5 MHz in sea water; Integral copper studs with stainless steel washers and nuts for fitting and connection.

  • Availability:
  • SKU: MON.EPLATE-C
  • Manufacturer: Moonraker
  • MPN:
  • Shipping Weight: 3.20kg
$460.00 inc GST

Surface area: 1265 sq cm (1.21 sq ft); Dimensions 240x130x20mm (9.5x5x0.75in); Impedance less than 1 ohm (measured) at 5 MHz in sea water; Integral copper studs with stainless steel washers and nuts for fitting and connection.

A compact radio or electrical earth plate designed to provide an efficient low resistance earth connection in wooden or fibreglass vessels for the professional and non professional user.

The Moonraker E Plate has an effective surface area of approximately 1265 sq cm and is not appreciably affected by marine growth fouling. Two units connected together meet the Australian marine electrical standard of 2500 sq cm.

Normally constructed of 94% low corrosion copper alloy, designed especially for tropical waters, it is also available in low corrosion aluminium for boats fitted with aluminium outboard legs or under conditions where bronze fittings should not be used, to prevent electrolysis.

Two threaded studs are integrally connected with the E Plate for mounting. No pre assembly is necessary and there are no bolted joints to corrode and cause problems.

The performance of any HF radio circuit is limited by the efficiency of the antenna / earth system used. Moonraker products are designed to give the high standard of efficiency demanded by the professional user.



(MON.EPLATE-C)

  • Area: Effective surface area of approximately 1265 sq cm - use 2 units to meet 2500 sq cm standard
  • Length: 240 mm
  • Width: 130 mm
  • Thickness: 20 mm
  • Impedance: Less than 1Ω (measured) at 5 MHz in sea water; also suitable for use in fresh water
  • Mountings: Copper Type 2 x 3/8” BSW x 75mm studs Weight 2.9kg | Packed Weight 3 kg
