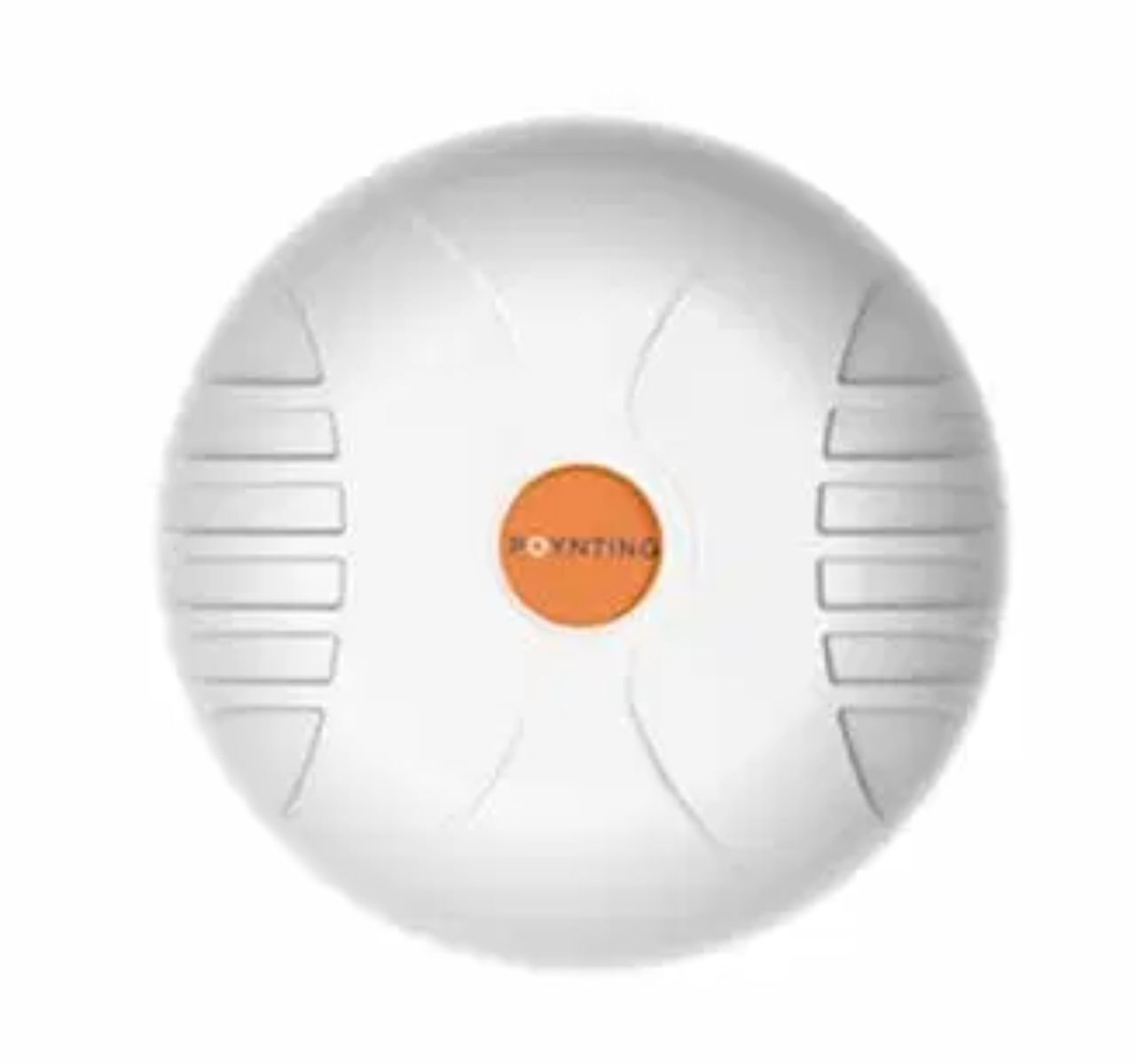

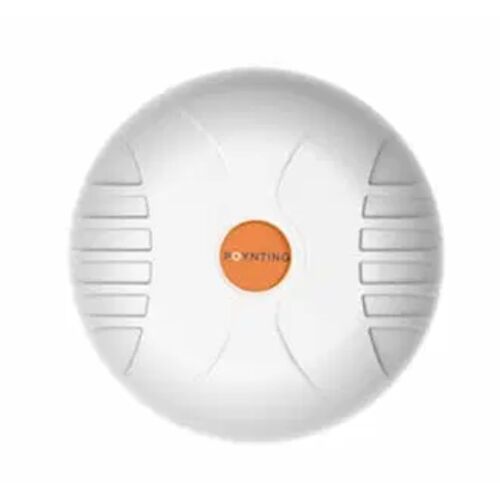

Poynting MIMO-0004 5-in-1 Transportation & Automotive Antenna, 617-7200MHz, White
The Poynting MIMO-0004 5-in-1 Transportation & Automotive Antenna is a 5-in-1 high-performance, a multi-frequency antenna within a single housing.
SAVE $32.97 (10%)
Out of Stock at Vendor Warehouse. Contact Us for an update on when stock will be available.
The Poynting MIMO-0004 5-in-1 Transportation & Automotive Antenna
provides two cellular, two Wi-Fi, and a GPS/GLONASS antenna. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz.
The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2×2 MIMO capability. The MIMO-4-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omnidirectionally, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
- 5-in-1 High-performance multi-frequency automotive antenna
- MIMO LTE, MIMO Wi-Fi, and GPS/GLONASS
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 2.4 – 2.5 and 5.0 – 7.2 GHz Wi-Fi bands
- Includes 3.5 GHz CBRS band
- Robust and water-resistant IP69K
- Ideal for transportation and marine use
- Ground plane independent
- Multi-mounting options for easy installation
- Dimensions: 160 mm (diameter) x 65 mm (high)
- Cables: 2m RTK-031
- Connectors: SMA (M)
|Unit Of Measure||ea|
