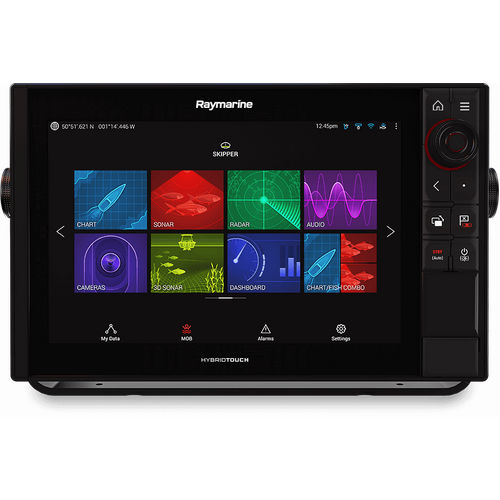

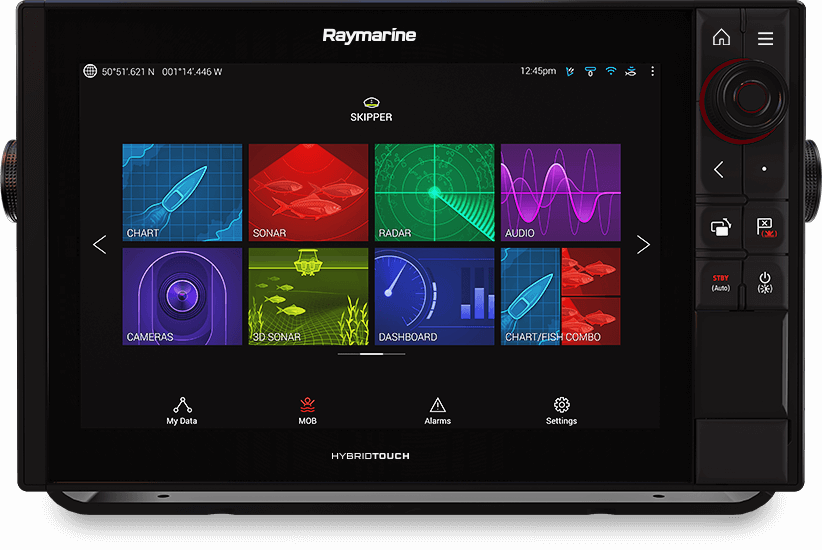

AXIOM 16 Pro-S, HybridTouch 16" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S and Australia & New Zealand LightHouse Chart.

The AXIOM PRO S series, featuring 9, 12, and 16-inch HybridTouch chartplotters, is a testament to cutting-edge maritime navigation technology. This series is expertly designed for professional mariners and serious boating enthusiasts who demand high performance, ease of use, and versatile functionality.

Key Features:

  • Powerful Chartplotting:

    Utilize the swift quad-core processor for seamless navigation through LightHouse, Navionics, or C-MAP charts.

  • HybridTouch™ Technology:

    Combines the convenience of a touch screen with the reliability of a full keypad control, ideal for navigating in rough sea conditions.

  • Built-in single-channel CHIRP Sonar:

    Ensures clear depth readings and bottom imaging.

  • ClearCruise Augmented Reality:

    Optional upgrade for enhanced situational awareness with AIS targets and chart objects overlaid on live video.

  • Advanced Radar Compatibility:

    Works seamlessly with Raymarine's solid-state radars like Cyclone and Quantum for all-weather safety and navigation.

  • Expandability:

    Easily integrates with additional Axiom displays, Evolution autopilot, FLIR thermal cameras, and more via standard NMEA0183, NMEA2000, and RayNet Ethernet ports.

The AXIOM PRO S is not just about powerful hardware; it's also about smart software. The intuitive LightHouse operating system is designed for ease of use, allowing you to customize your navigation experience. The series also features dynamic layline overlays, polar performance data, and a graphical sailing dashboard for smarter cruising and sailing decisions.

Physical
Dimensions (Trunnion mounted)

Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)

Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Accessory connection

USB Micro B
Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 0183 connection

Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate
External storage

2 front mounted MicroSDXC card slots
NMEA 2000 connection

DeviceNet connector
Analog video connections

BNC Analog video input (on power cable)
Wireless connections

Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n
Internal storage

16GB Solid State
Transducer connection

25 pin RealVision type connector (requires adaptor cable)
LCD
Size (diagonal)

Axiom Pro 9: 9.0"

Axiom Pro 12: 12.1"

Axiom Pro 16: 15.6"
Ratio

Axiom Pro 9: 16:9

Axiom Pro 12: 16:9

Axiom Pro 16: 16:10
Resolution

Axiom 2 Pro 9: 1280 x 720 HD

Axiom 2 Pro 12: 1280 x 800 WXGA

Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°
Type

IPS (In-Plane Switching)
Color depth

24-bit
Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches

1 to 16
Power
Power consumption @ 12 V dc

Axiom Pro 9: 24.96 W

Axiom Pro 12: 21.12 W

Axiom Pro 16: 31.44 W
Power consumption @ 24 V dc

Axiom Pro 9: 25.2 W

Axiom Pro 12: 22.56 W

Axiom Pro 16: 31.68 W
Operating voltage range

8 V dc to 32 V dc
Nominal supply voltage

12 V dc / 24 V dc
Off current @ 12 V dc

11 mA (0.13 W)
Off current @ 24 V dc

18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)

1
Current

5 A
Sonar
Channels

CHIRP conical sonar
Depth range

0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
Sonar
Channels

CHIRP conical sonar
Depth range

0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
GNSS (GPS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels

Track up to 28 satellites simultaneously
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, Galileo, GLONASS, Beidou
Almanac Update

Automatic
Signal Acquisition

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Refresh rate

10 Hz (10 times per second)
Time to first fix from cold start

< 2 minutes
SKU RAY.E70483-00-ANZ
Model # E70483-00-ANZ
Brand Raymarine
Shipping Weight 5.4000kg
Shipping Width 0.358m
Shipping Height 0.065m
Shipping Length 0.223m
Shipping Cubic 0.005189210m3
Unit Of Measure ea
