Raymarine AXIOM 9 Pro-S, HybridTouch 9" Multi-function Display, High CHIRP Conical Sonar for CPT-S, Australia & New Zealand LightHouse Chart
AXIOM 9 Pro-S, a HybridTouch 9" Multi-function Display with High CHIRP Conical Sonar for CPT-S. Includes Australia & New Zealand LightHouse Chart for superior navigation.
SKU: RAY.E70481-00-ANZ | MPN: E70481-00-ANZ
SAVE $162.75 (4%)
Special OrderSpecial Order from Supplier

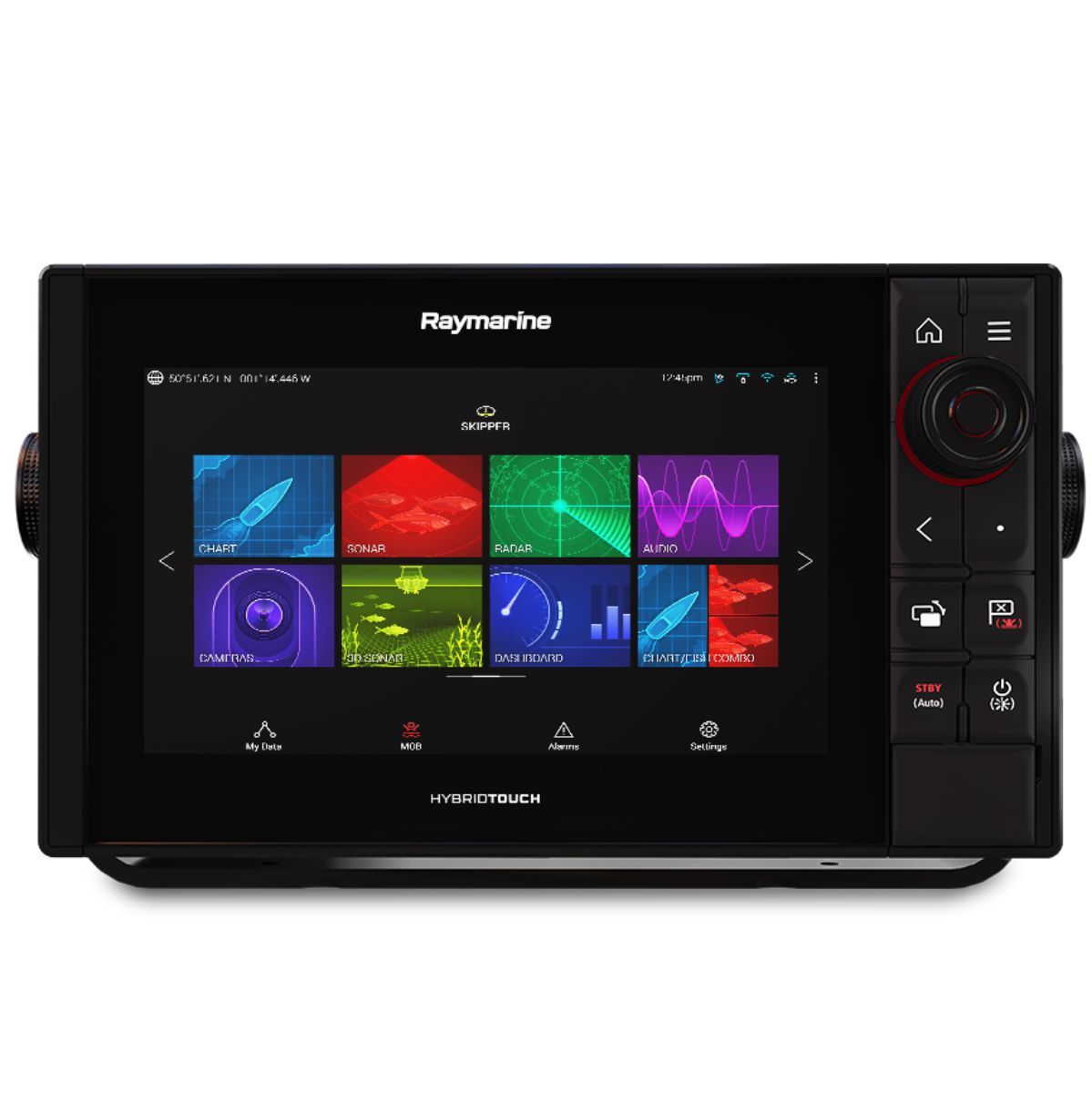

AXIOM 9 Pro-S, HybridTouch 9" Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S and Australia & New Zealand LightHouse Chart.
The AXIOM PRO S series, featuring 9, 12, and 16 inch HybridTouch chartplotters, is a testament to cutting-edge maritime navigation technology. This series is expertly designed for professional mariners and serious boating enthusiasts who demand high performance, ease of use, and versatile functionality.
Key Features:
-
Powerful Chartplotting:
Utilize the swift quad-core processor for seamless navigation through LightHouse, Navionics, or C-MAP charts. -
HybridTouch™ Technology:
Combines the convenience of a touch screen with the reliability of a full keypad control, ideal for navigating in rough sea conditions. -
Built-in single channel CHIRP Sonar:
Ensures clear depth readings and bottom imaging. -
ClearCruise Augmented Reality:
Optional upgrade for enhanced situational awareness with AIS targets and chart objects overlaid on live video. -
Advanced Radar Compatibility:
Works seamlessly with Raymarine's solid-state radars like Cyclone and Quantum for all-weather safety and navigation. -
Expandability:
Easily integrates with additional Axiom displays, Evolution autopilot, FLIR thermal cameras, and more via standard NMEA0183, NMEA2000, and RayNet Ethernet ports.
The AXIOM PRO S is not just about powerful hardware; it's also about smart software. The intuitive LightHouse operating system is designed for ease of use, allowing you to customize your navigation experience. The series also features dynamic layline overlays, polar performance data, and a graphical sailing dashboard for smarter cruising and sailing decisions.
Physical | |
---|---|
Dimensions (Trunnion mounted) |
Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) |
Dimensions (Surface/Flush mounted) |
Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
Accessory connection |
USB Micro B |
Ethernet connection |
2 RayNet (10/100/1,000 Mbits/s) ports |
NMEA 0183 connection |
Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate |
External storage |
2 front mounted MicroSDXC card slots |
NMEA 2000 connection |
DeviceNet connector |
Analog video connections |
BNC Analog video input (on power cable) |
Wireless connections |
Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n |
Internal storage |
16GB Solid State |
Transducer connection |
25 pin RealVision type connector (requires adaptor cable) |
LCD | |
Size (diagonal) |
Axiom Pro 9: 9.0" Axiom Pro 12: 12.1" Axiom Pro 16: 15.6" |
Ratio |
Axiom Pro 9: 16:9 Axiom Pro 12: 16:9 Axiom Pro 16: 16:10 |
Resolution |
Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
Viewing angle |
Top 88° / Bottom 88° / Left 88° / Right 88° |
Type |
IPS (In-Plane Switching) |
Color depth |
24-bit |
Illumination |
Axiom 2 Pro 9 1300 nits / 1300 cd/m2 |
Number of simultaneous touches |
1 to 16 |
Power | |
Power consumption @ 12 V dc |
Axiom Pro 9: 24.96 W Axiom Pro 12: 21.12 W Axiom Pro 16: 31.44 W |
Power consumption @ 24 V dc |
Axiom Pro 9: 25.2 W Axiom Pro 12: 22.56 W Axiom Pro 16: 31.68 W |
Operating voltage range |
8 V dc to 32 V dc |
Nominal supply voltage |
12 V dc / 24 V dc |
Off current @ 12 V dc |
11 mA (0.13 W) |
Off current @ 24 V dc |
18 mA (0.43 W) |
LEN (NMEA 2000 Load Equivalency Number) |
1 |
Current |
5 A |
Sonar | |
Channels |
CHIRP conical sonar |
Depth range |
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
Sonar | |
Channels |
CHIRP conical sonar |
Depth range |
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
GNSS (GPS) | |
Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
Channels |
Track up to 28 satellites simultaneously |
Antenna |
Internal - Ceramic chip mounted near top of unit |
GNSS compatibility |
GPS, Galileo, GLONASS, Beidou |
Almanac Update |
Automatic |
Signal Acquisition |
Automatic |
Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
Operating frequency |
1574 MHz to 1605 MHz |
Refresh rate |
10 Hz (10 times per second) |
Time to first fix from cold start |
< 2 minutes |
SKU | RAY.E70481-00-ANZ |
Model # | E70481-00-ANZ |
Brand | Raymarine |
Shipping Weight | 4.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.065m |
Shipping Length | 0.174m |
Shipping Cubic | 0.003393000m3 |
Unit Of Measure | ea |
