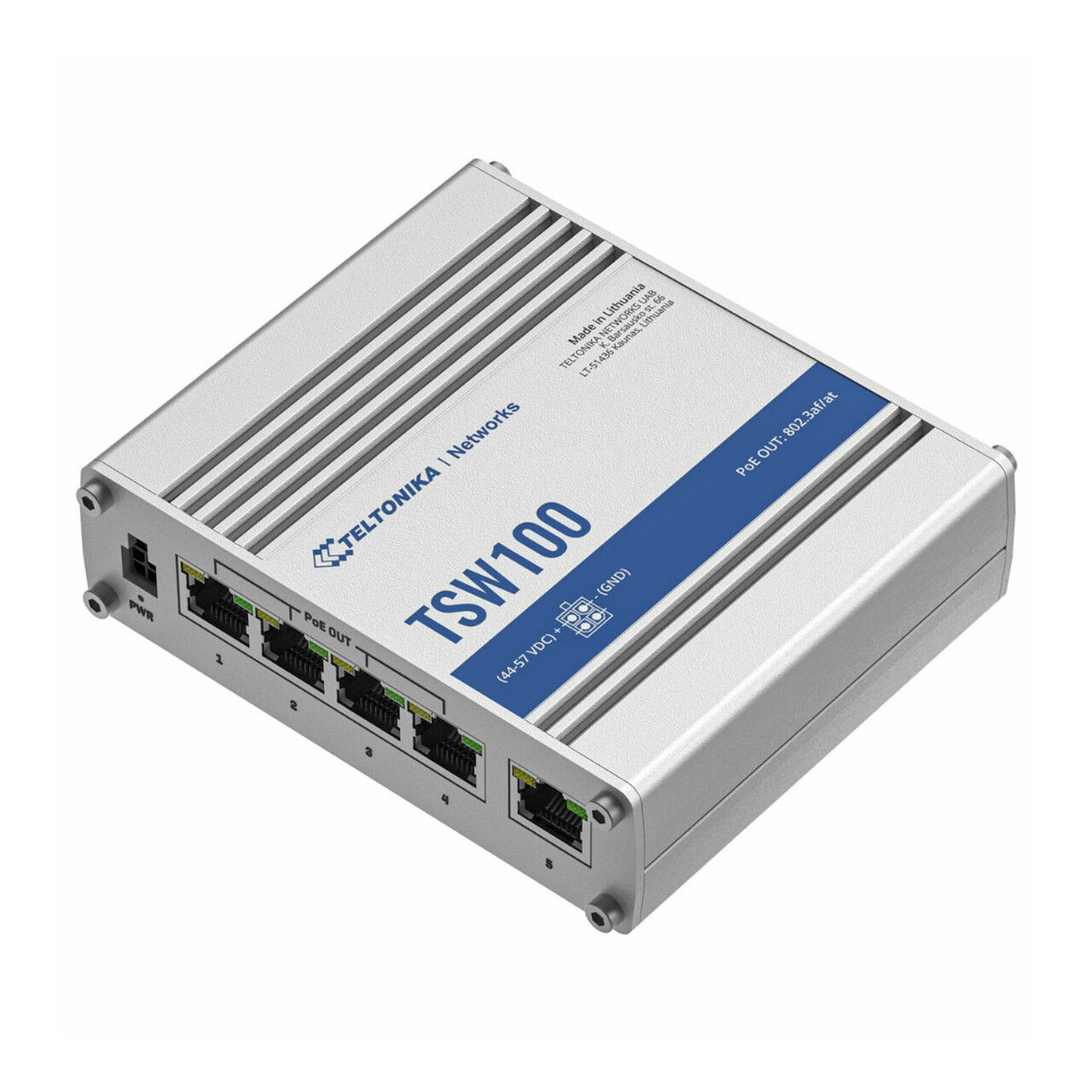

Industrial PoE switch delivering dependable power and high-speed network performance

This durable industrial switch provides stable Gigabit connectivity and reliable PoE power delivery across multiple devices. Built for harsh environments, it offers strong EMC immunity, wide-range power input, and flexible mounting options, making it ideal for surveillance, automation, and industrial networking systems.

Key Features

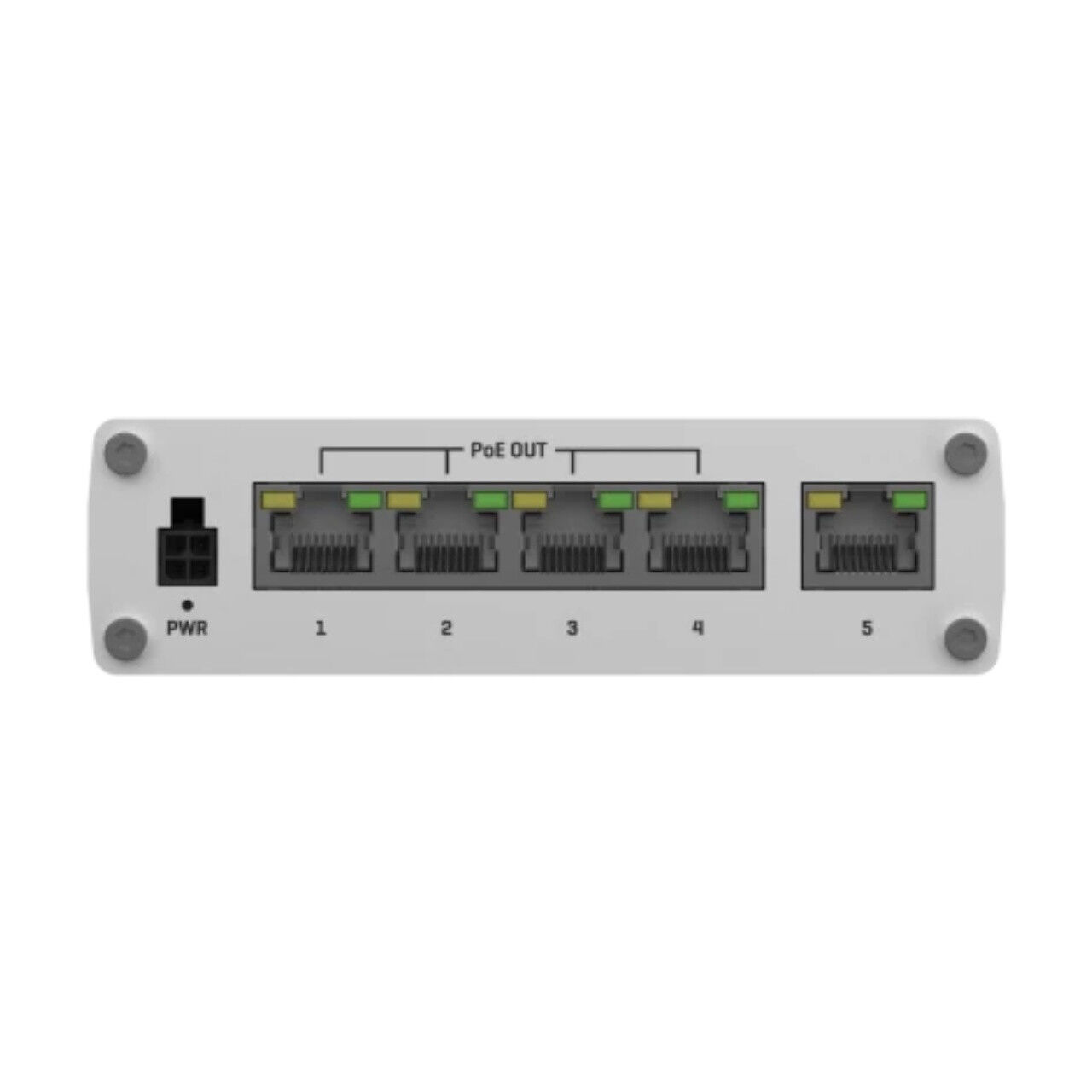

• Five Gigabit Ethernet ports: Provides 10/100/1000 Mbps auto-negotiation with auto MDI/MDIX support, ensuring seamless compatibility with a wide range of connected equipment.
• Four PoE+ capable ports: Delivers up to 30 W per port following IEEE 802.3af/at standards, supplying stable power to IP cameras, access points, and other PoE-enabled devices without additional power adapters.
• Generous PoE power budget: Supports a total PoE power allocation of 120 W, enabling multiple high-demand devices to operate simultaneously with consistent power delivery.
• Wide 7–57 VDC power input: Accepts a broad voltage range suitable for diverse industrial power systems, improving resiliency in environments with fluctuating voltage conditions.
• Non-blocking 10 Gbps switching capacity: Ensures smooth communication and full-speed operation across all five ports even under heavy data load, supporting bandwidth-intensive applications.
• Large MAC table and packet buffer: Utilises a 2K MAC address table and 128 KB packet buffer to maintain smooth traffic handling and reduce packet loss during peak network activity.

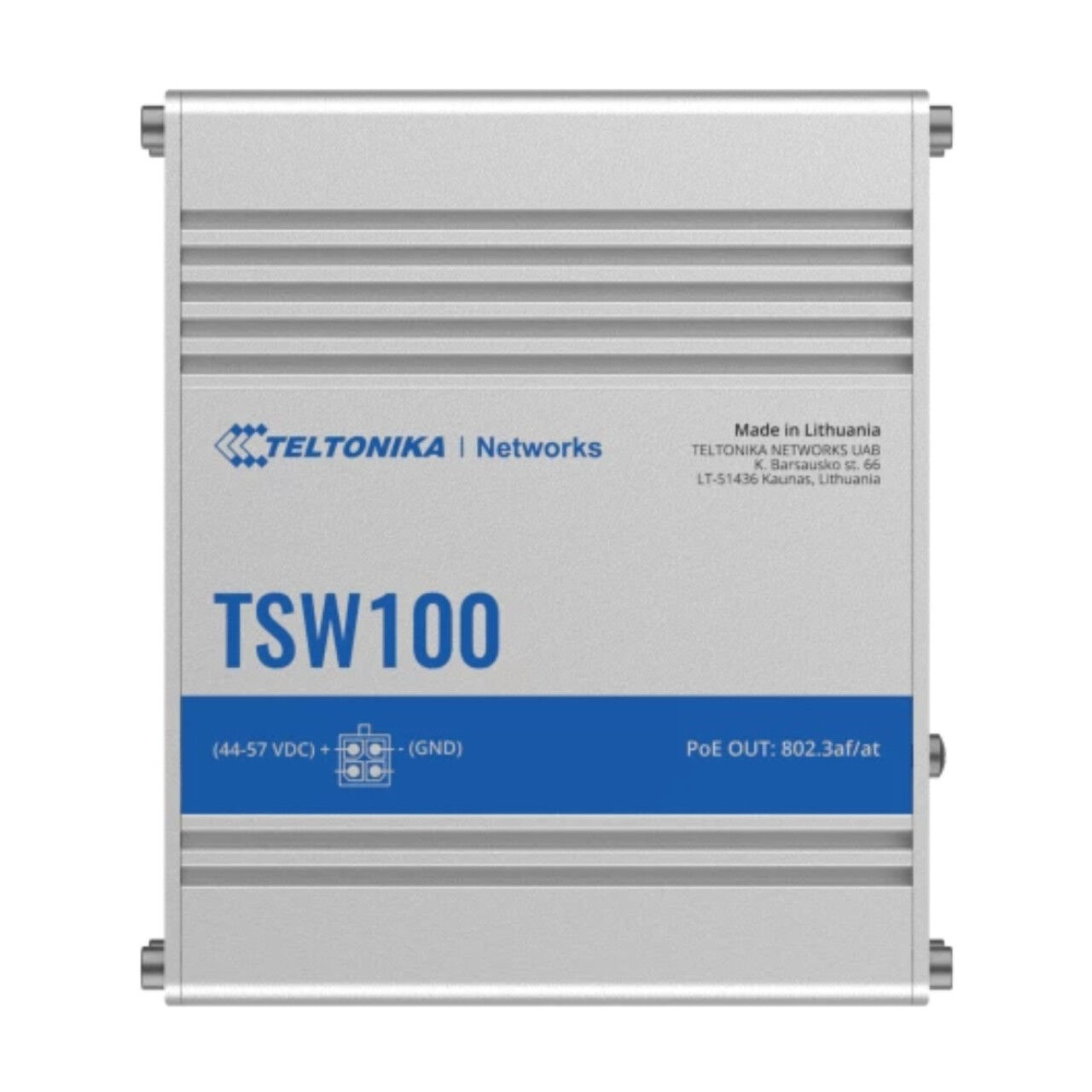

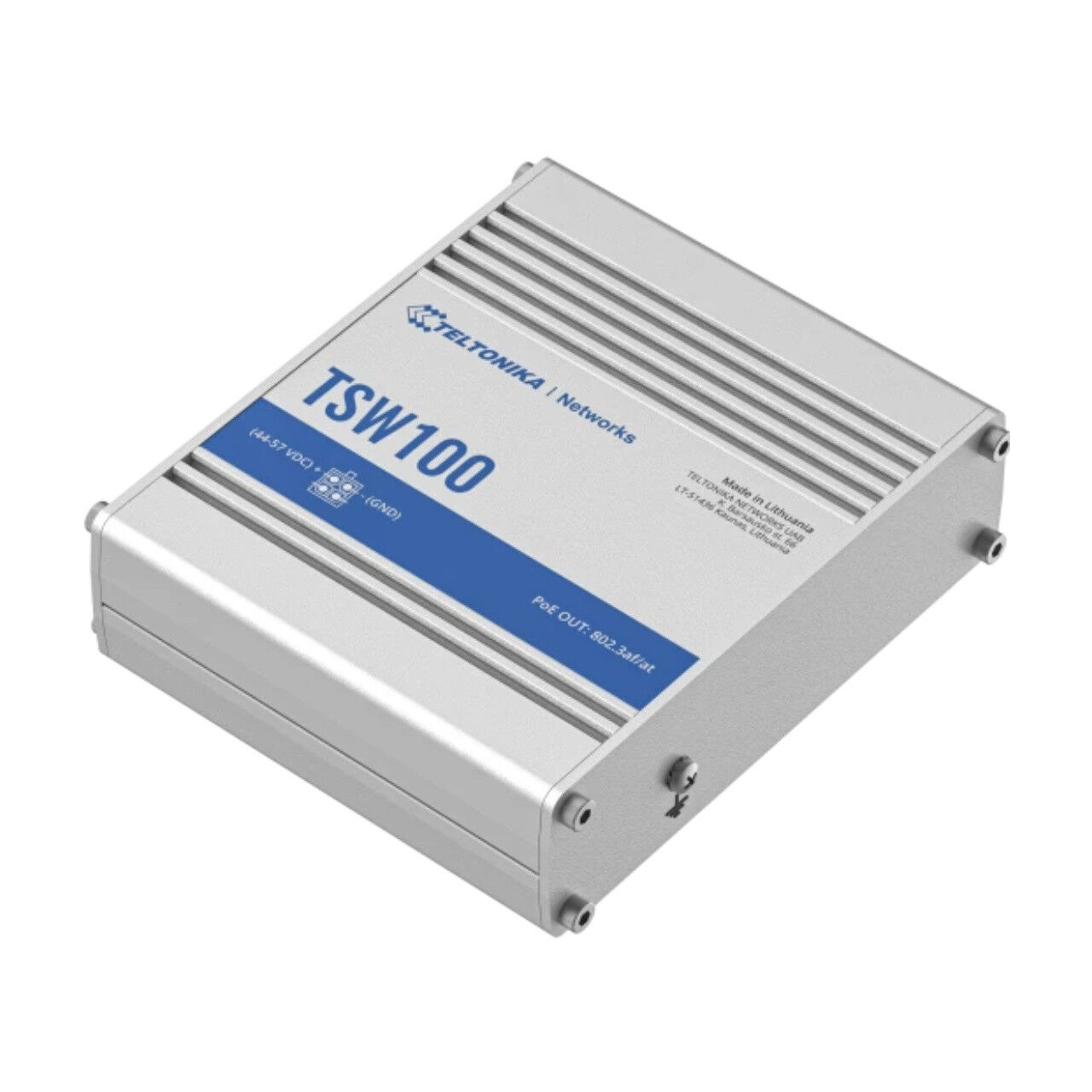

• Full aluminium industrial housing: Offers a rugged, heat-efficient enclosure that protects internal components and supports reliable long-term performance in demanding environments.
• IP30 ingress protection: Shields the device from dust and accidental contact, enhancing reliability in industrial, telecom, and edge-network installations.
• Advanced EMC immunity: Complies with EN 61000-4 surge, ESD, and radiated immunity standards, ensuring stable operation in high-interference industrial or automotive environments.
• Flexible installation options: Supports DIN rail, wall mounting, and flat-surface placement, allowing easy integration into existing network cabinets and control systems.
• Comprehensive global certifications: Meets CE, UKCA, FCC, IC, NOM, and IEC 62368-1 safety standards, guaranteeing compliance for use across multiple regulatory regions.
• Compact and lightweight design: Features a small 115 × 32 × 95 mm footprint and 350 g weight, enabling installation in tight or remote spaces without difficulty.

This switch provides high-speed performance, robust PoE capability, and exceptional durability, making it a reliable choice for industrial automation, security networks, and remote connectivity deployments.
