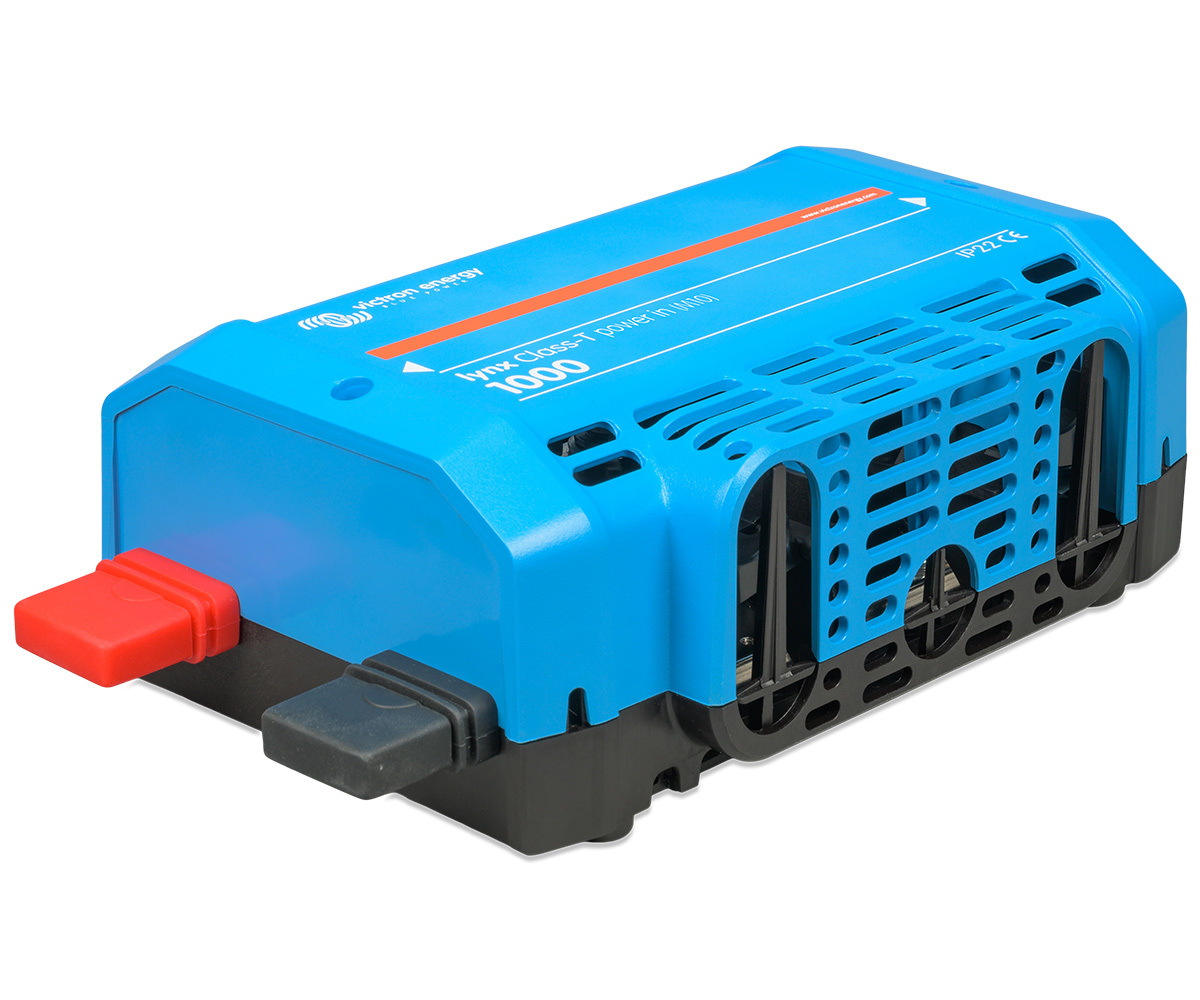

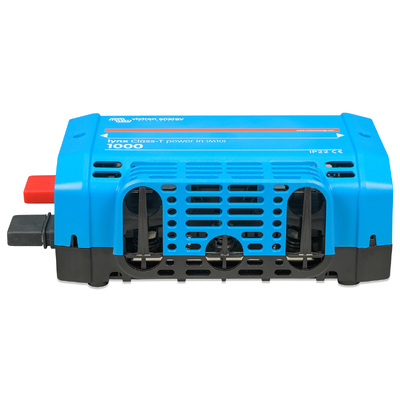

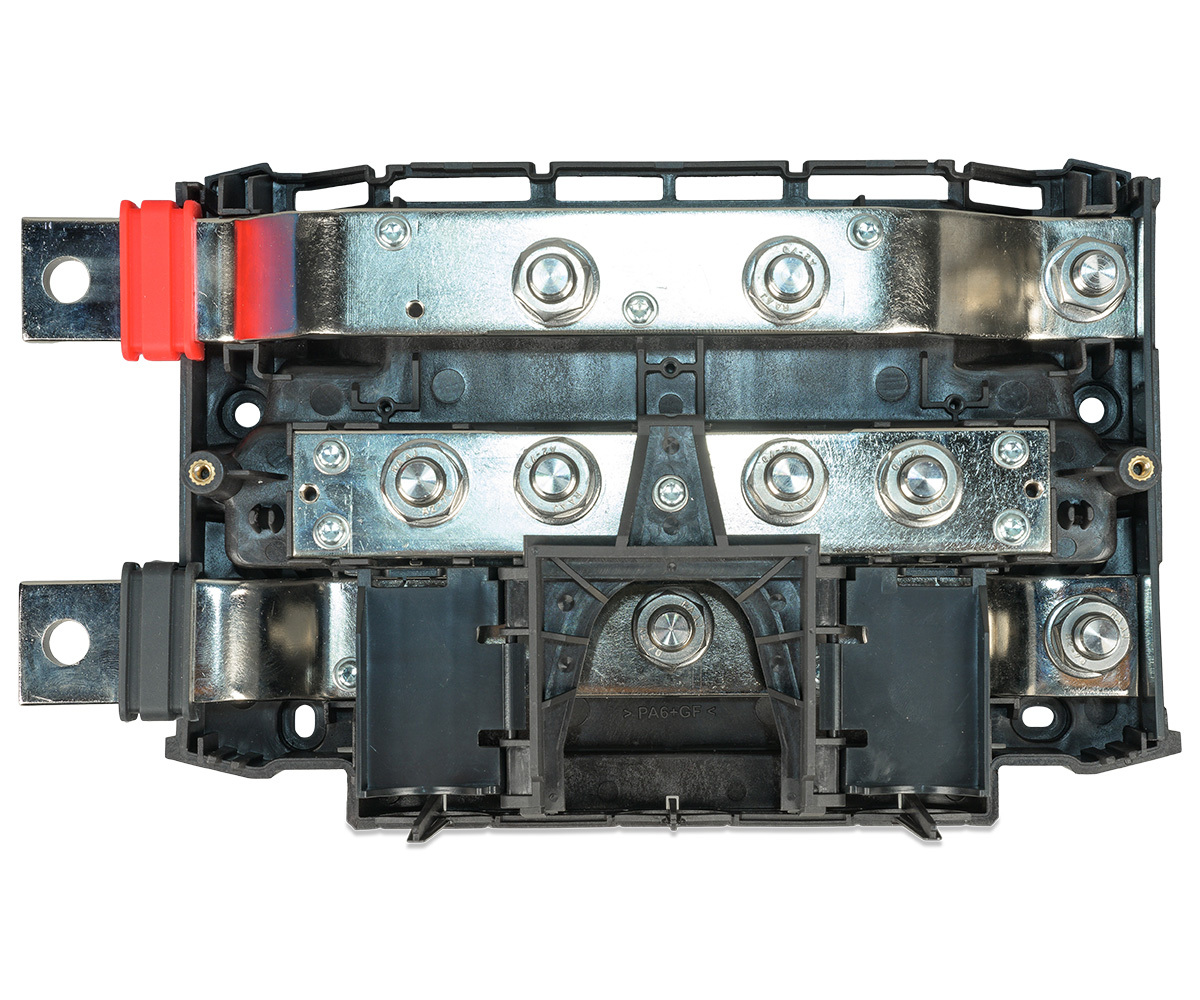

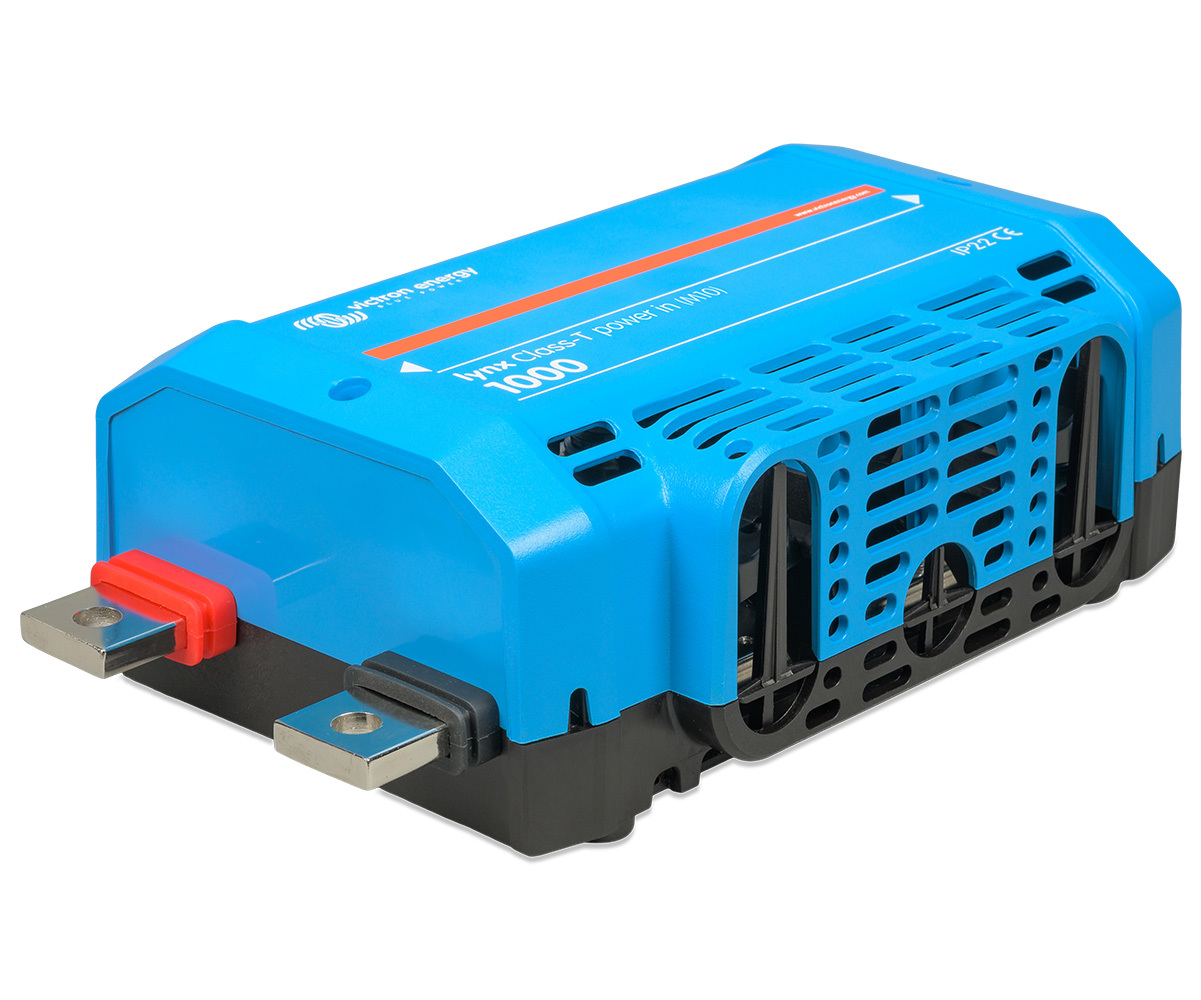

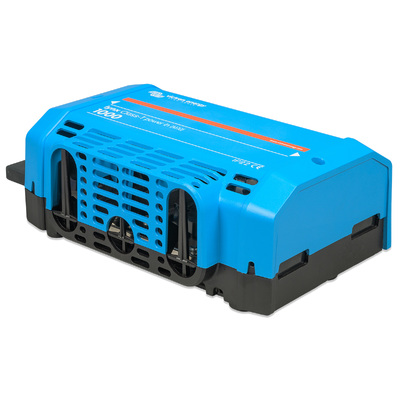

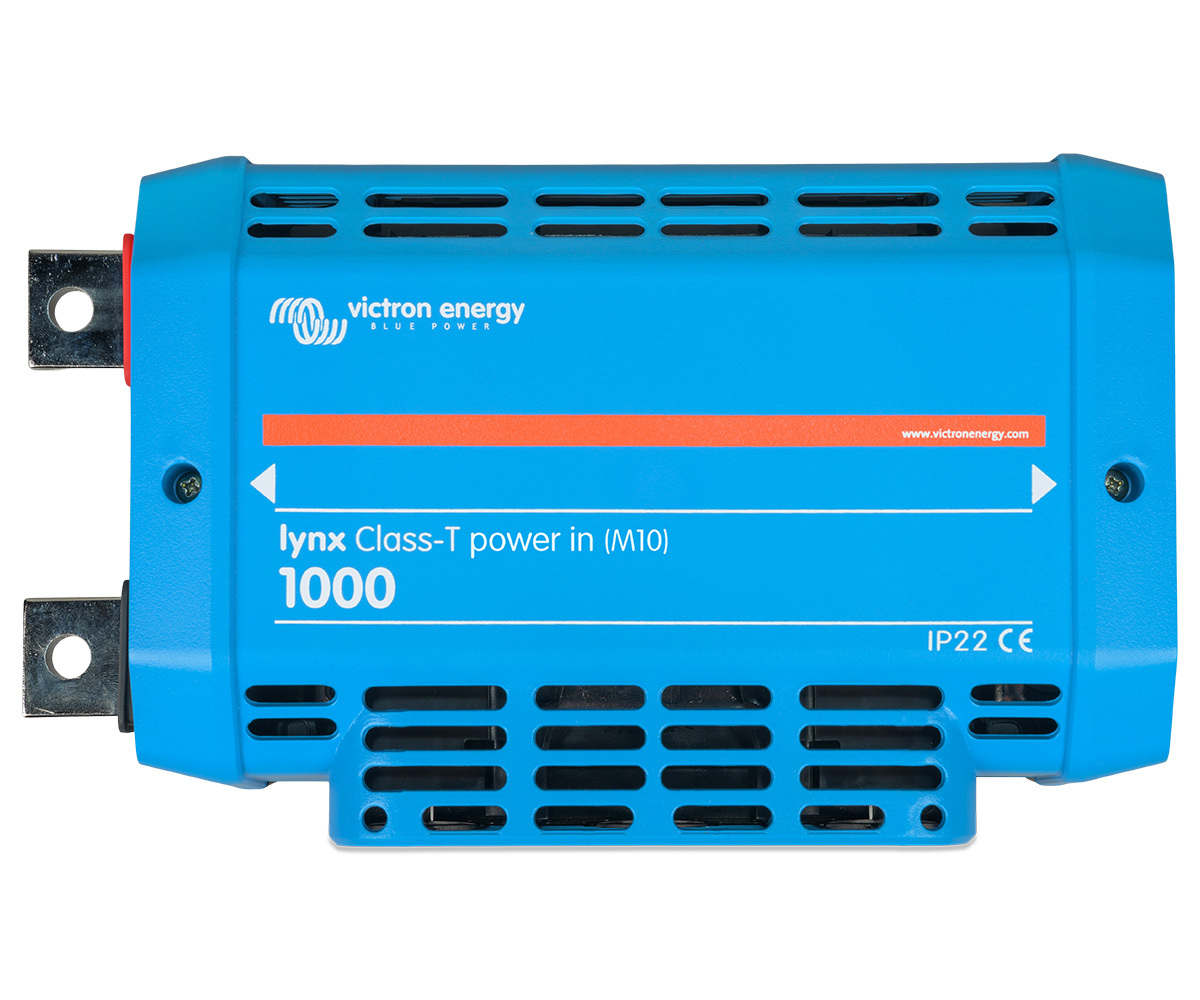

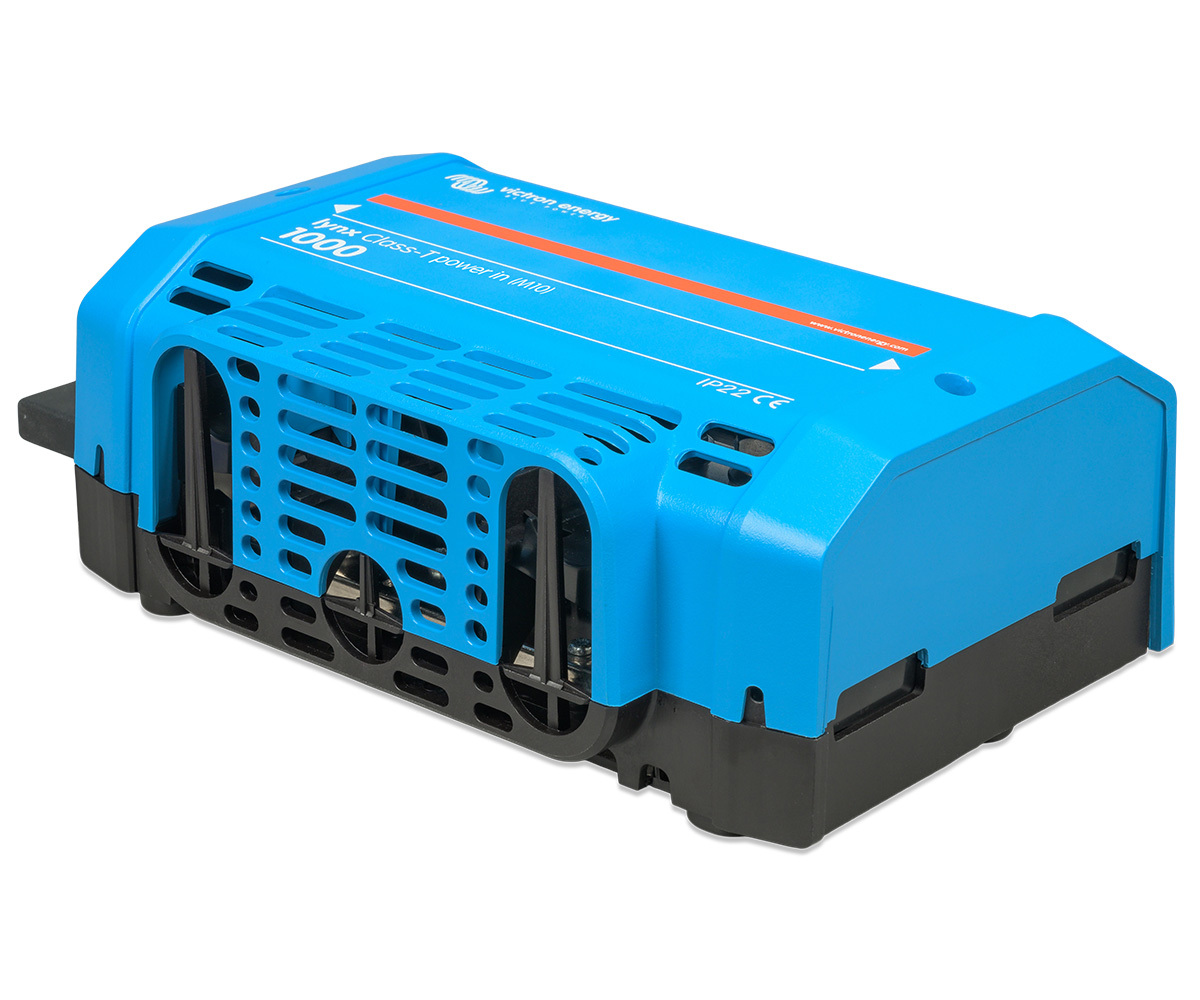

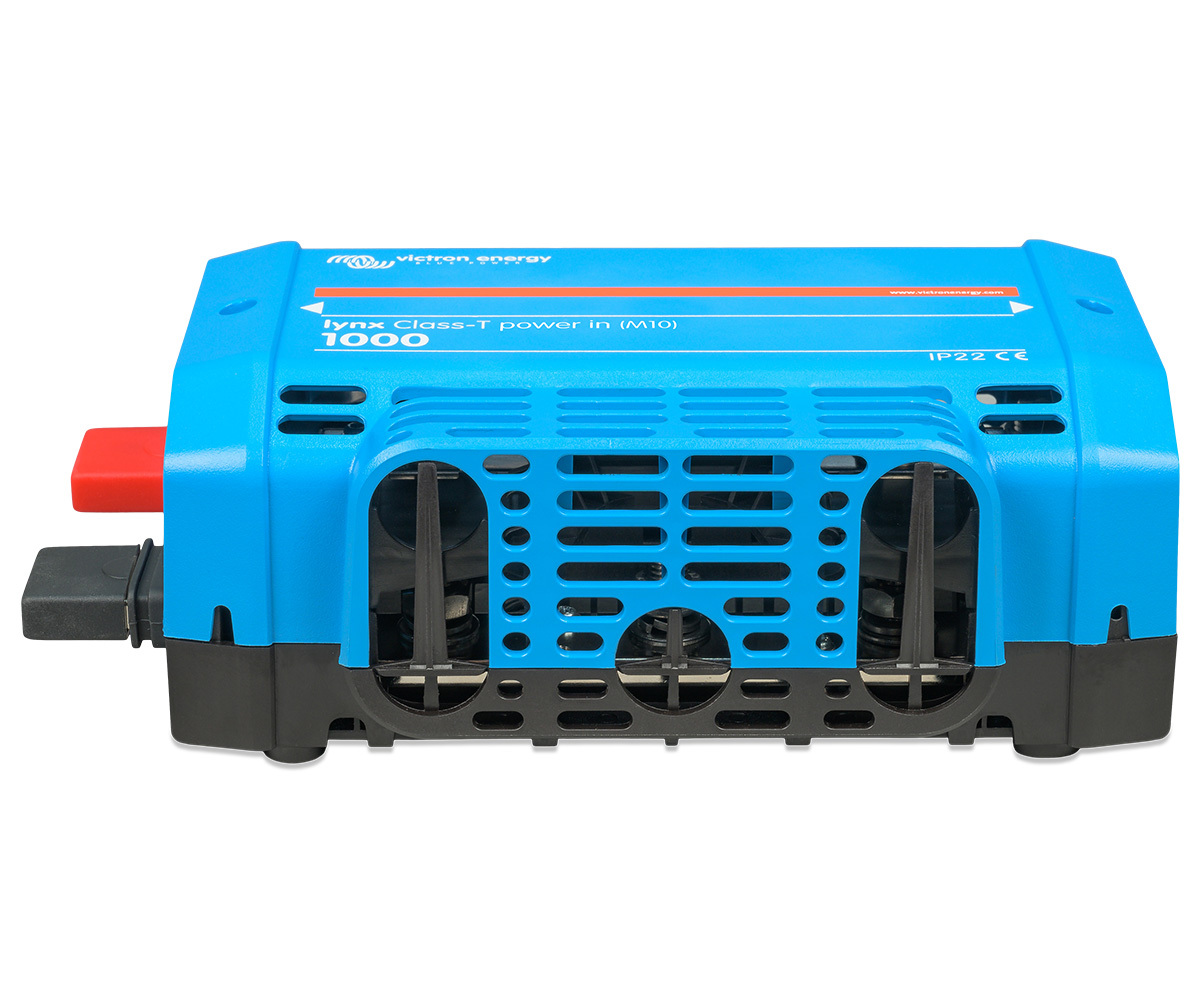

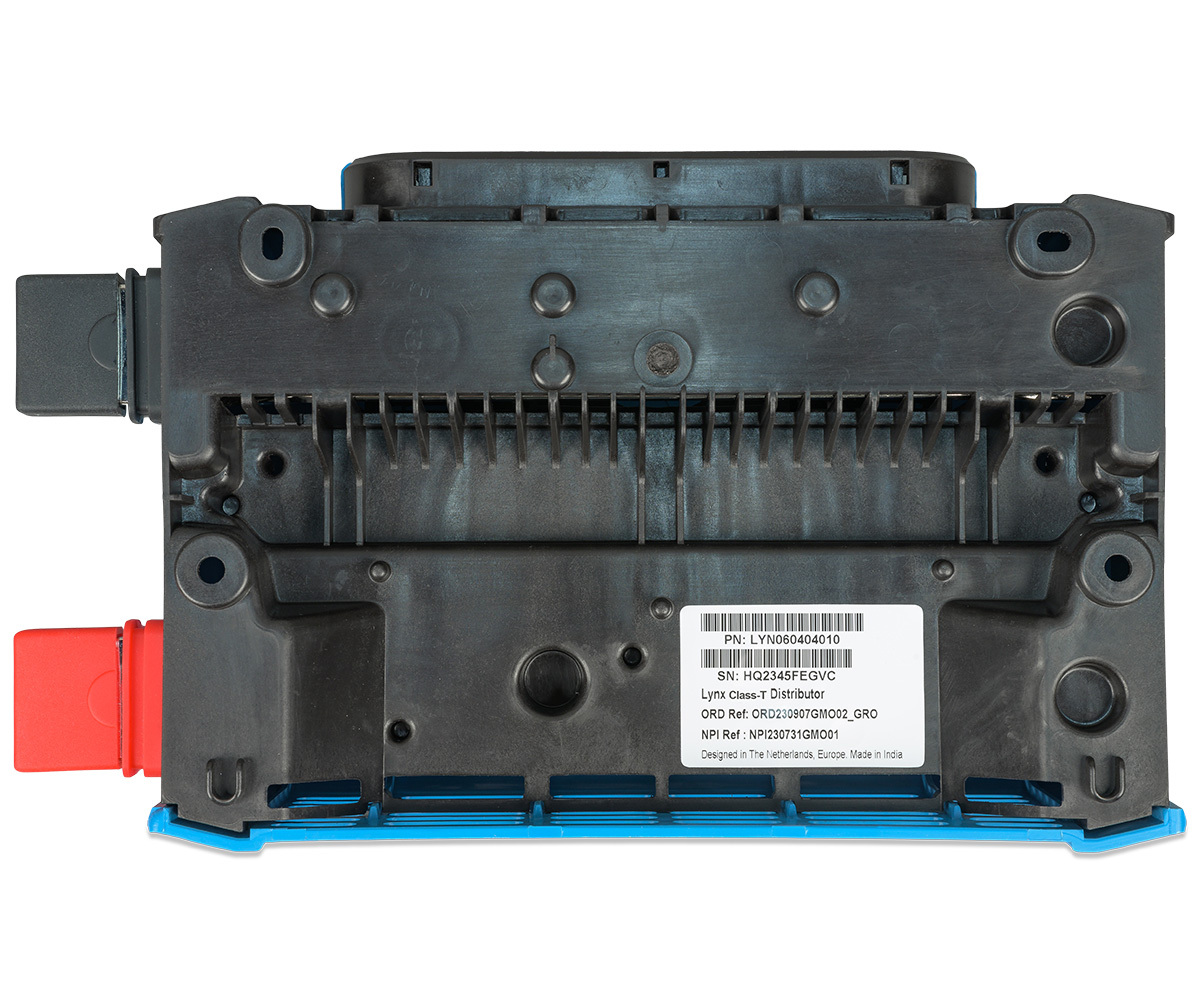

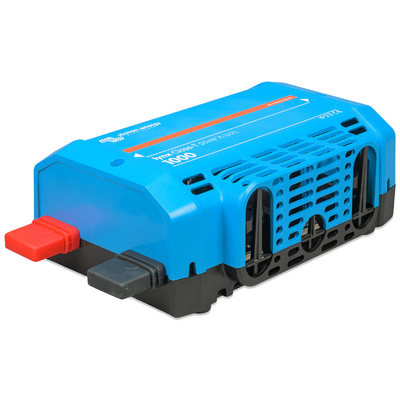

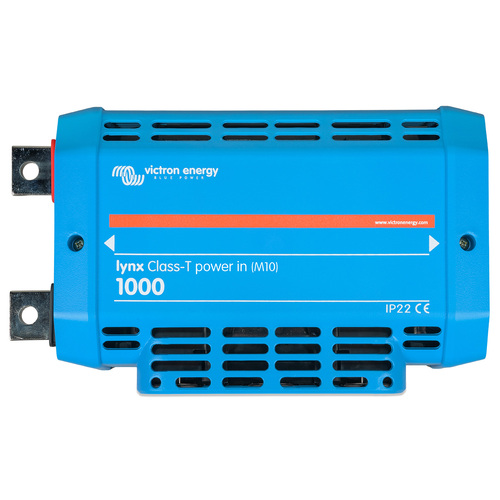

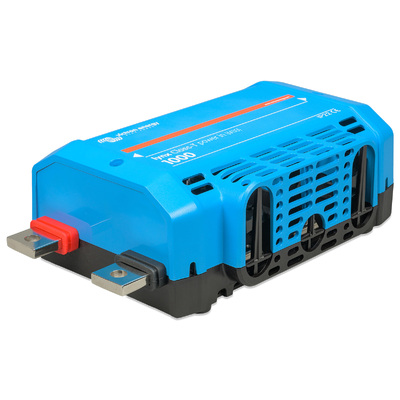

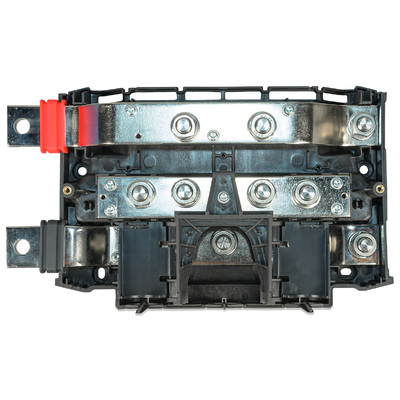

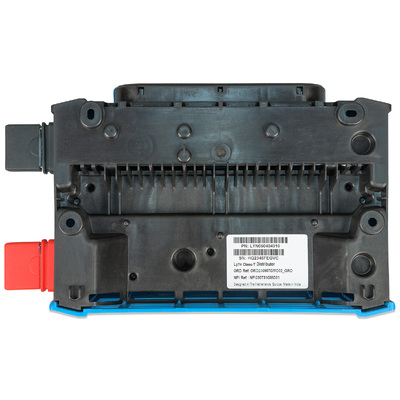

The Lynx Class-T Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is a modular DC busbar, used to connect batteries to the Lynx DC distribution system.

For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.


  • Voltage range 9 - 60Vdc
  • Current rating 1000A
  • Busbar M10 size
  • Enclosure material ABS
  • Enclosure dimensions (hxwxd) 290 x 170 x 80mm
  • Unit weight 2.1 kg
  • Busbar material Tinned copper
  • Busbar dimensions (hxw) 8 x 30mm
  • Operating temperature range -40°C to +60°
  • Storage temperature range -40°C to +60°
  • Protection class IP22
SKU VIC.LYN060404010
Model # LYN060404010
UPC/EAN 8718076062967
Brand Victron Energy
Shipping Weight 2.5000kg
Shipping Width 0.095m
Shipping Height 0.190m
Shipping Length 0.400m
Shipping Cubic 0.007220000m3
